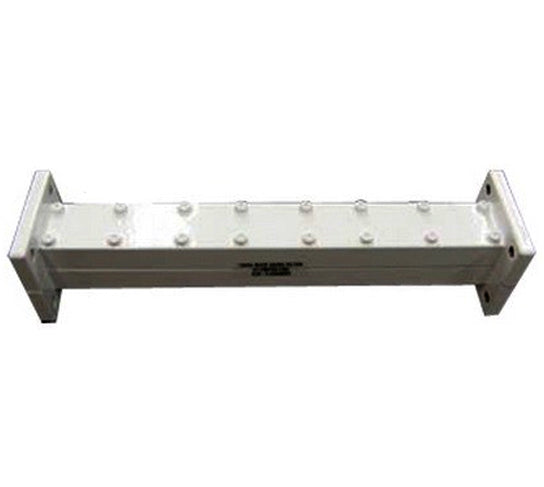

Nexgenwave 12Ghz Waveguide Filter (Model No. I12WF00100) 950MHz to 1.7GHz Bandwidth  Waveguide Band Rejection Filter Rejection Band 12.75 - 13.25Ghz Pass Band 11.7-12.25 Ghz Dimension 165(L) x 38(W) x 38(H)mm   Mechanical Drawing Parameters Specifications Center Frequency 11.7GHz – 12.25GHz...

  • Category: All Products, Antenna Feeds, Antennas, Nexgenwave, RF Filter

Nexgenwave 12Ghz Waveguide Filter (Model No. I12WF00100)

  • 950MHz to 1.7GHz Bandwidth
  • Waveguide Band Rejection Filter
  • Rejection Band 12.75 - 13.25Ghz
  • Pass Band 11.7-12.25 Ghz
  • Dimension 165(L) x 38(W) x 38(H)mm



Mechanical Drawing
I12WF00100

Parameters

Specifications

Center Frequency

11.7GHz – 12.25GHz

Bandwidth

550MHz

Insertion Loss

0.5dB Max.

VSWR

1.2 max

Rejection 12.75 – 13.25GHz

75dB Min.

IN/OUT Port

WR75

Color

White

Size (mm)

165x38x38

Weight (kg)

0.2

Humidity

100%
