Newtec SAT2210 Satellite Terminal

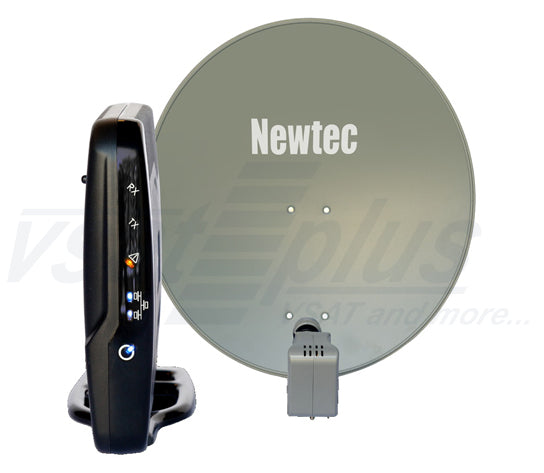

The Newtec MDM2210 IP Satellite Modem is packaged with an easy to install and high performance Outdoor Unit (ODU). This terminal package is highly optimized for cost, efficiency and ease of use. The ODU consists of a high quality, easy to install antenna, an integrated transmitter and low noise block down converter (iLNB).

Newtec SAT2210 Key Features

  • Small size, table top or wall mounted
  • DVB-S2 ACM Forward
  • 4CPM MF-TDMA Adaptive Return Link
  • Embedded TCP acceleration and encryption
  • Multi-level Quality of Service
  • Layer 2 and Layer 3 support with versatile IP routing and addressing
  • Low jitter for real time applications
  • DNS Cache/Relay and HTTP pre-fetching
  • Support of IPv4 and IPv6
  • Multiple virtual networks behind the modem
  • MicroSD card and USB interface (future use)
  • Over-the-air software upgradeability
  • Over-the-air monitoring and diagnostics tools
  • Dual satellite configuration settings

Markets

  • Consumer
  • SOHO
  • SME
  • Government
  • Education
  • Enterprise

Applications

  • Internet / intranet access
  • Streaming video and audio with TV quality
  • VoIP telephony (SIP, H.323, G.729, …)
  • Content Distribution and management
  • Telemetry (SCADA)
  • Point of Sale terminals
  • Banking

Performance

•   Max RX rate TCP

up to 22 Mbps total

•   Max RX rate UDP

up to 20 Mbps total (unicast or multicast)

•   Max TX rate TCP

up to 3.5 Mbps

•   Max TX rate UDP

up to 3.5 Mbps

Modem Interfaces

RF INPUT/OUTPUT:

•   Connector:

Two F

•   Impedance:

75 Ohm

•   RF in Frequency:

950 – 2100MHz (L-band)

•   Rx Level:

-65 to -25dBm

•   RF out Frequency:

2750 – 3000MHz

•   Tx Level:

0 dBm

LOCAL AREA CONNECTION     1 x 10/100 TX (RJ-45)

USB                                       USB 2.0 (future use)

MASS STORAGE                      MicroSD card (future use)

Mechanical & Environment

•  Housing

170x150x32mm

•   Weight

450 g

•  Operating temperature

0 to 40°C

•   Humidity

5% - 95% non-condensing

Power supply

•   DC Power supply

18V or 24V (depending on iLNB)

•  Mains adaptor input

mains AC, 50Hz\210-260V and 60Hz\100-130V

•   Power consumption

<30 Watt (0.8W Ku iLNB), <60 Watt (2W iLNB)

IP features

•  Protocols:       UDP, IPv4 & IPv6, ICMP, IGMPv2, TCP, ARP, DHCP, DNS, DiffServ Marking

Management Interfaces

•  Web GUI

•  Over-the-air software & configuration updates

• Over-the-air monitoring, self-test and diagnostics

Software release

• Specifications valid for Sat3Play© software release 2.2

Standards

•  EN 302307     DVB-S2

•  EN 301428   Ku-band VSAT spectrum usage

•  EN 301459   Ka-band VSAT spectrum usage

•  IEEE 802.3    10T Ethernet

•  IEEE 802.3u  100TX Ethernet

Satellite Link Interface

FORWARD CARRIER (RX)

Standard

DVB-S2 ACM

Modulation

QPSK, 8PSK, 16APSK, 32APSK

•   Coding

1/4, 1/3, 2/5, 1/2,3/5, 2/3,3/4,4/5, 5/6, 8/9, 9/10

•   Roll-off

5, 10, 15, 20, 25 and 35 %

Symbol rate

3.6 - 63 Mbaud (up to 47Mbaud for 16APSK, up to 38Mbaud for 32APSK with 5/6)

RETURN CARRIER (TX)

Modulation             4CPM (Quaternary Continuous Phase Modulation) with 6 different modcods, with Adaptive Return Link

Access Scheme         Multi Frequency TDMA (Timed Division Multiple Access)

Channel bandwidth 128kHz to 4MHz
