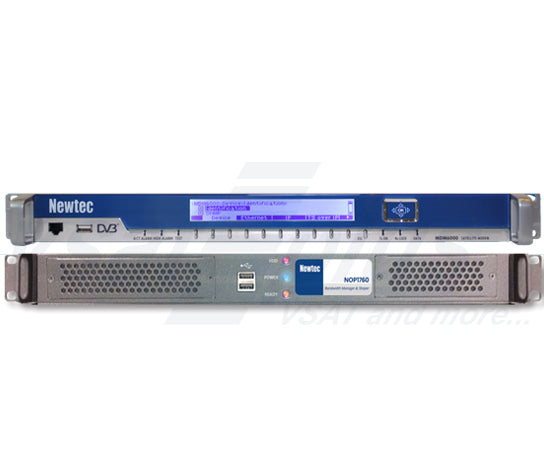

The Newtec MDM6000 High Speed Satellite Modem is the next generation modem optimized for point-to-point very high speed applications over satellite. In combination with the NOP1760 Bandwidth Manager the modem achieves barrier-breaking speeds at the highest bandwidth efficiency and maximum service availability. The MDM6000 very high speed solution is in full compliance with the DVB-S2 standards and the upcoming S2 Extensions.
| Input Interfaces | |
|---|---|
| Auto switching 10/100/1000 Base-T Ethernet interfaces | |
| Maximum rates | 380 Mbit/s bidirectional (imix traffic mix, 140kpps each direction) |
| Layer 2 bridge function | ethernet over satellite (IPv6/VLAN/MPLS compatible) |
| Layer 3 static router function | IPv4 packets over satellite |
| Up to 100 IP routes | |
| Advanced QoS features | Adaptive Traffic Shaping according to PIR/CIR Flexible traffic classification on VLAN/MPLS/ IPv4/IPv6 |
| DVB-GSE Encapsulation/Decapsulation of IP/ Ethernet frames in DVB-S2 & S2 Extensions | |
| Data filtering (downlink) | Up to 64 receive filters |
| Modulation and Demodulation | |
| S2 Extensions (optional) Outer/Inner FEC: BCH/ LDPC MODCODs |
|
| QPSK | 45/180, 60/180, 72/180, 80/180, 90/180, 100/180, 108/180, 114/180, 120/180, 126/180, 135/180, 144/180, 150/180, 160/180, 162/180 |
| 8PSK | 80/180, 90/180, 100/180, 108/180, 114/180, 120/180, 126/180, 135/180, 144/180, 150/180 |
| 16APSK | 80/180, 90/180, 100/180, 108/180, 114/180, 120/180, 126/180, 135/180, 144/180, 150/180, 160/180, 162/180 |
| 32APSK | 100/180, 108/180, 114/180, 120/180, 126/180, 135/180, 144/180, 150/180, 160/180, 162/180 |
| 64APSK | 90/180, 100/180, 108/180, 114/180, 120/180, 126/180, 135/180, 144/180, 150/180, 160/180, 162/180 |
| Linear MODCODs | |
| 8PSK-L | 80/180, 90/180, 100/180, 108/180, 114/180, 120/180 |
| 16APSK-L | 80/180, 190/180, 100/180, 108/180, 114/180, 120/180, 126/180, 135/180, 144/180, 150/180, 160/180, 162/180 |
| 64APSK-L | 90/180, 100/180, 108/180, 114/180, 120/180, 126/180, 135/180, 144/180, 150/180, 160/180, 162/180 |
| FlexACM® controller (optional) | |
| FlexACM® client embedded in MDM6000 modem (optional) | |
| Automatic Uplink Power Control | |
| Baud Rate Range | |
| Modulator | 0,050 - 72MBaud |
| Class 1 Demodulator | 1 - 60Mbaud (depending on MODCOD) |
| Class 2 Demodulator | 1 - 72Mbaud |
| FRAME LENGTH | |
| DVB-S2 Short Frames | 16200 bits |
| DVB-S2 Normal Frames | 64800 bits |
| S2 Extensions Normal Frames | 64800 bits |
| CLEAN CHANNEL TECHNOLOGY | |
| Roll-off | 5% -10% -15% -20% - 25% - 35% |
| Optimum carrier spacing | |
| Advanced filter technology | |
| CARRIER INTERFERENCE REDUCTION | |
| DVB RF Carrier ID (DVB-CID) | |
| Spread Spectrum Modulator (BPSK) | |
| Supports User Data | |
| Compliant to DVB Standard | |
| Modulation Interfaces | |
| L-BAND | |
| Connector | N(F), 50 ohms (optional SMA adapter) |
| Frequency | 950 - 2150 MHz (10 Hz steps) |
| Level | -35/+7 dBm (+/- 2dB) |
| Return loss | > 14 dB |
| Switchable 10MHz Reference | |
| Spurious performance Better than - 65 dBc/4kHz @ +5 dBm output level and > 256kBaud Non-signal related: < - 80 dBc @ +5 dBm output |
|
| IF-BAND (CONFIGURATION OPTION) | |
| Connector | BNC (F) - 75 ohms (intermateable with 50 ohms) |
| Frequency | 50 - 180 MHz (10 Hz steps) |
| Level | -35/+10 dBm (± 2 dB) |
| Return loss | 50 ohms : > 14 dB 75 ohms : > 20 dB |
| Spurious performance Better than - 65 dBc/4kHz @ +5 dBm output level and > 256kBaud Non-signal related:< - 80 dBc @ +5 dBm output |
|
| L-BAND MONITORING | |
| Connector | SMA (F), 50 ohms |
| Frequency | Same as L-Band output frequency or 1050 MHz in case of IF output option only |
| Level | -45 dBm |
| Return loss | > 10 dB |
| 10 MHZ REFERENCE OUTPUT (OPTIONAL) | |
| Connector | BNC (F), 50 ohms |
| Output level | +3 dBm (+/- 2dB) |
| BUC POWER (OPTIONAL) | |
| Max. current | 3.8A |
| Voltage | 24V, 48V (Software controlled) |
| Demodulation Interfaces | |
| DUAL L-BAND INPUT (DEFAULT) | |
| Connector | 2 x F-type (F), 75 Ohms |
| Return loss | > 7 dB (75 Ohm – F(F)) |
| Level | -65/-25dBm |
| Frequency | 950 - 2150 MHz |
| Adjacent signal | < (Co+7) dBm/Hz with Co = signal level density |
| IF-BAND INPUT (OPTIONAL, REPLACES ONE L-BAND INPUT) | |
| Connector | BNC (F) - 75 ohms |
| Return loss | > 15 dB |
| Level | 55 to -15 dBm |
| Frequency | 50 - 180 MHz |
| Adjacent signal | < (Co+7) dBm/Hz with Co = signal level density |
| LNB POWER AND CONTROL | |
| max. current | 350 mA (on selected IFL input) |
| voltage 11,5 -14 V (Vertical polarization) 16 -19 V (Horizontal polarization) & additional 22 kHz +/- 4KHz (band selection according to universal LNB for Astra satellites & DiSEqC command transmission) |
|
| Internal 10 MHz Reference Frequency | |
| STANDARD STABILITY | |
| Stability | +/- 2000 ppb over 0 to 70° C |
| Ageing | +/- 500 ppb/10year |
| MONITOR AND CONTROL INTERFACES | |
| M&C connectivity via separate Ethernet links | |
| Web server GUI (HTTP) via web browser | |
| Diagnostics report, alarm log (HTTP) | |
| SNMP v2c | |
| ALARM INTERFACE | |
| Electrical dual contact closure alarm contacts | |
| Connector 9-pin sub-D (F) | |
| Logical interface and general device alarm | |
| Physical | |
| Height 2RU, width | 19”, depth 55 cm, 12 kg |
| Power supply | 90-130 & 180-260 Vac, 105 VA, 47-63 Hz |
| Temperature Operational Storage |
0°C to +50°C / +32°F to +122°F -40° to +70°C / -40°F to +158°F |
| Humidity | 5% to 85% non-condensing |
| CE label and UL | |
