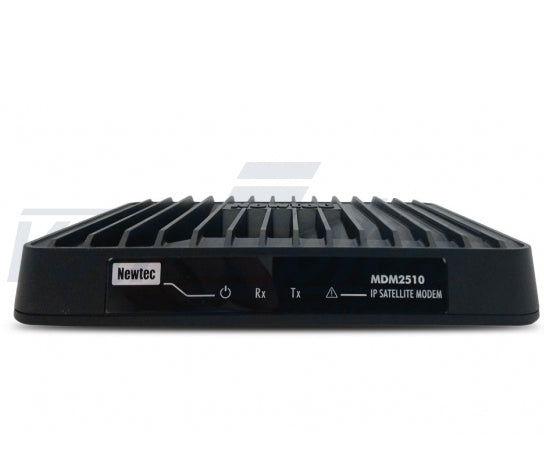

Newtec MDM2510 IP Satellite Modem

Newtec MDM2510 IP Satellite Modem

Satellite Modem

Key features Compact size 500 Mbaud DVB-S2X ACM Forward 4CPM MF-TDMA Adaptive Return Link The most optimal modulation and bandwidth allocation while guaranteeing the highest efficiency and availability with Mx-DMA return link technology Embedded TCP acceleration and encryption Multilevel QoS...

  • Category: All Products, Featured products, Newtec, Satellite Modems - VSATplus

Key features

  • Compact size
  • 500 Mbaud DVB-S2X ACM Forward
  • 4CPM MF-TDMA Adaptive Return Link
  • The most optimal modulation and bandwidth allocation while guaranteeing the highest efficiency and availability with Mx-DMA return link technology
  • Embedded TCP acceleration and encryption
  • Multilevel QoS
  • Low jitter for real-time applications
  • DNS Cache/Relay
  • Support of IPv4 and IPv6
  • Multiple virtual networks supporting the modem
  • Over-the-air software upgradeability
  • Over-the-air monitoring and diagnostics tools

Main advantages

  • Wideband 500 Mbaud S2X forward
  • Support for MF-TDMA and Newtec’s patented Mx-DMA return link technologies
  • High efficiency by utilizing wideband carriers and high statistical multiplexing gain
  • Easy-to-use multi-language web Graphical User Interface (GUI) for installation, diagnostics and troubleshooting
  • Adaptive Return Link based on different 4CPM modulations and coding and multiple channel bandwidths
  • High service satisfaction is ensured through a true broadband experience
  • Optimal availability and efficiency of DVB-S2X transmission thanks to Newtec’s FlexACM®

Satellite Link Interface

FORWARD CARRIER (RX)

• Standard: DVB-S2X

- Profile: Interactive

- Modulation: QPSK, 8PSK, 16APSK, 32APSK, 64APSK

- Coding: According to DVB-S2X MODCOD definition

- Roll-off: 5, 10, 15, 20, 25, 35%

- Symbol rate: 256 kbaud up to 500 Mbaud

(MODCOD limitations apply)

• Standard: DVB-S2

- Profile: Interactive

- Modulation: QPSK, 8PSK, 16APSK, 32APSK

- Coding: According to DVB-S2 MODCOD definition

- Roll-off: 5, 10, 15, 20, 25, 35%

- Symbol rate: 256 kbaud up to 64 Mbaud

(MODCOD limitations apply)

RETURN CARRIER (TX)

• Access scheme Multi Frequency TDMA (Time Division Multiple Access)

- Modulation: 4CPM (Quaternary Continuous Phase Modulation)

- Channel bandwidth: 128, 192, 256, 384, 512, 788, 1024, 1536, 2048, 2560, 3072, 3584, 4096kHz

- MODCOD: 0, 1, 2, 3, 4, 5

• Access scheme Cross-Dimensional Multiple Access (Mx-DMA):

- Modulation: QPSK up to 32APSK with 40 MODCOD

- Roll-off: 5%

- Symbol rate: 32 kbaud – 20 Mbaud
