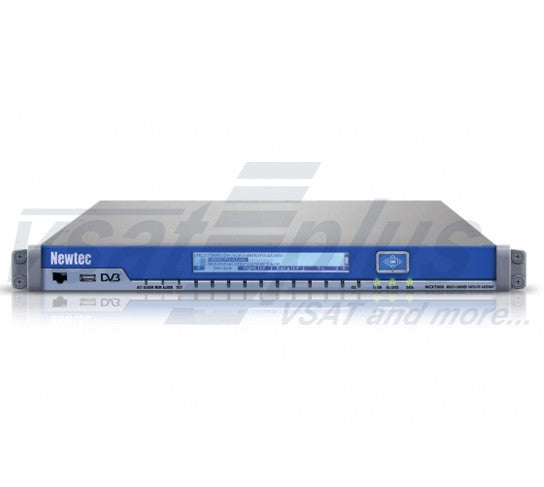

Newtec MCX7000 Multi-Carrier Satellite Gateway Building upon the MDM6100 Broadcast Satellite Modem software suite, the enhanced hardware platform of the Newtec MCX7000 Multi-Carrier Satellite Gateway extends the modem capabilities beyond single carrier support. In a first release, three 133 MBaud carriers can be demodulated, next to modulation of a 133 MBaud signal...
Add to wishlist
Tags: /

Newtec MCX7000 Multi-Carrier Satellite Gateway

Building upon the MDM6100 Broadcast Satellite Modem software suite, the enhanced hardware platform of the Newtec MCX7000 Multi-Carrier Satellite Gateway extends the modem capabilities beyond single carrier support. In a first release, three 133 MBaud carriers can be demodulated, next to modulation of a 133 MBaud signal with full support of the DVB satellite standards up to DVB-S2X. Each and every transport stream embedded in one of the received carriers can be output on one of the six (optional) ASI or dual Ethernet ports. The same data interfaces can be used as input ports for the modulator. Transmodulation of a received stream is also an option.

Its remote in-band management and software upgradeability makes it the receiver equipment of choice for remote unattended towers and headends. Subsequent releases of this future-proof DVB-S2X platform guarantee, by simple software upgrade, even increased functionality and higher density.

Delivering the highest uptime for vital links
Uptime and reliability are essential in the design of the multi-carrier gateway, taking a vital role in the satellite network. Input source redundancy and the shortest redundancy switch-over times, operating both in 1+1 and N+1 topologies, are setting the standard in our industry.

MCX7000 Rear Panel
Newtec MCX7000 Multi-Carrier Satellite Gateway

Advanced capabilities are built in such as a MPEG Transport Stream analyser, support of SMPTE 2022 FEC at the GbE inputs (for distributed IP headends), and native support of Carrier ID according to the new DVB standard as well as in the transport stream NIT Table. Special care was taken to cope with jittery transport stream over IP inputs. The 6 ASI ports are programmable as inputs or outputs allowing for monitoring as well as operational ASI ports.

Data Interfaces

ASI INTERFACE (OPTIONAL)
Single stream mode
2 selectable ASI inputs on BNC (F) – 75 Ohm (coax)
2 x ASI output on BNC (F) – 75 Ohm (coax)
188 or 204 byte mode
Rate adapter
MPTS or SPTS according to ISO/IEC 13818
Multi stream mode
6 BNC(F) - 75 Ohm (coax) connectors
individually configurable as input or output
or as 3 redundant TS inputs with auto switching.
188 or 204 byte mode
Rate adapter
MPTS or SPTS according to ISO/IEC 13818
ETHERNET INTERFACE
Auto switching 10/100/1000 Base-T Ethernet interface
Transport stream over IP interface (UDP/RTP)
Forward Error Correction SMPTE 2022-1 and -2
188 or 204 byte mode
Rate adapter
MPTS or SPTS according to ISO/IEC 13818

Content Encryption And Protection

BISS ENCRYPTION (OPTIONAL)
Support for BISS-0, BISS-1 and BISS-E
On one single TS (SPTS or MPTS)

IP Encapsulation

Optional 4 MPE Encapsulators
Max aggregate 70 Mbit/s

IP Decapsulation

4 MPE Decapsulators
Max aggregate 70 Mbit/s

Modulation And Demodulation

SUPPORTED MODULATION SCHEMES AND FEC
DVB-S
Outer/Inner FEC: Reed Solomon / Viterbi
MODCODs:
QPSK: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-DSNG
Outer/Inner FEC: Reed Solomon / Viterbi
MODCODs:
8PSK:
2/3, 5/6, 8/9
16QAM
3/4, 7/8
DVB-S2 (acc. ETSI EN 302 307 v1.2.1 for DVB-S2)
Outer/Inner FEC: BCH/LDPC
52 MODCODs (short & normal frames):
QPSK: from 1/4 to 9/10
8PSK: from 3/5 to 9/10
16APSK: from 2/3 to 9/10
32APSK: from 3/4 to 9/10
DVB-S2X standard
Outer/Inner FEC: BCH/LDPC
53 MODCODs (normal frames):
QPSK: from 1/4 to 9/10
8PSK: from 3/5 to 9/10
16APSK: from 26/45 to 9/10
32APSK: from 32/45 to 9/10
64APSK: from 11/15 to 5/6
128APSK: 3/4; 7/9
256APSK: 32/45; 3/4
13 Linear MODCODs (normal frames):
8APSK-L: 5/9; 26/45
16APSK-L: from 1/2 to 2/3
32APSK-L: 2/3
64APSK-L: 32/45
256APSK-L: 29/45 to 11/15
41 MODCODs (short frames):
QPSK: from 11/45 to 8/9
8PSK: from 7/15 to 8/9
16APSK: from 7/15 to 8/9
32APSK: from 2/3 to 8/9
Support of DVB-S2 VCM mode
(on modulator and demodulators)
SYMBOL RATE RANGE
Modulator
DVB-S2, DVB-S2X 256 kBaud - 133 MBaud
DVB-S & DVB-DSNG 1 - 45 MBaud
Demodulator
DVB-S2, DVB-S2X 256 kBaud - 133 MBaud
DVB-S & DVB-DSNG 1 - 45 MBaud
FRAME LENGTH
DVB-S & DVB-DSNG 188 bytes
DVB-S2 & DVB-S2X Short Frames 16200 bits
DVB-S2, DVB-S2X Normal Frames 64800 bits
CLEAN CHANNEL TECHNOLOGY
Roll-off : 5% -10% -15% -20% - 25% - 35%
Optimum carrier spacing
Advanced filter technology
EQUALINK 3
Linear and Non-Linear predistortion for all MODCODs
Maximum rate 72 MBaud
CARRIER INTERFERENCE REDUCTION
DVB RF Carrier ID (DVB-CID)
  • Spread Spectrum Modulator (BPSK)
  • Supports User Data
  • Compliant to ETSI 103 129 v1.1.1 (2013-05)
Carrier ID NIT Table
