New Japan Radio

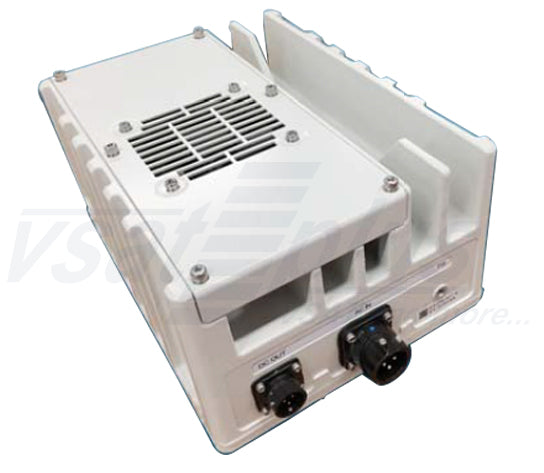

New Japan Radio NJZ1295 500W Outdoor AC/DC Power Supply Unit
New Japan Radio NJZ1295 500W Outdoor AC/DC Power Supply Unit
Sale
Sold out
SKU: NJZ1295
Couldn't load pickup availability
NJRC NJZ1295 500W Outdoor AC/DC Power Supply Unit
- Outdoor AC/DC Power Supply
- Active Power Factor Correction (PFC) Equipped
- Input AC Voltage: 100 to 240 V
- Output DC Voltage: 51 V typ.
- Output DC Power: 500 W max.
- Compact Size & Light Weight
- Dimension: 250 (L) x 191 (W) x 118.1 (H) mm
- Weight: 5.0 kg
NJZ1295 OUTLINE
![NJZ1295 OUTLINE](//cdn.shopify.com/s/files/1/1094/0100/files/NJZ1295_interface_grande.jpg?v=1505724857)
NJZ1295 MECHANICAL DRAWING
![NJZ1295 Outline Drawing](//cdn.shopify.com/s/files/1/1094/0100/files/NJZ1295_d1_1024x1024.jpg?v=1505724908)
Item |
|
Specifications |
Input AC Voltage Range |
|
100 to 240 V (Rating: 90 to 264 V) |
Input AC Current |
|
6 A max. @ 110V Input / 3 A max. @ 230V Input |
Output DC Voltage |
|
+51 V typ. |
Output DC Power Capacity |
|
500 W max. |
Efficiency |
|
85 % typ. @ 110V Input & 500W Load |
Power Factor |
|
0.96 typ. @ 110V Input & 500W Load |
Temperature Range (ambient) |
Operating: Storage: |
-40 to +55 °C -40 to +75 °C |
Dimension & Housing |
|
250 (L) x 191 (W) x 118.1 (H) mm [9.84” (L) x 7.52” (W) x 4.65” (H)] without interface connector and screws |
Weight |
|
5.0 kg [11 lbs] |
