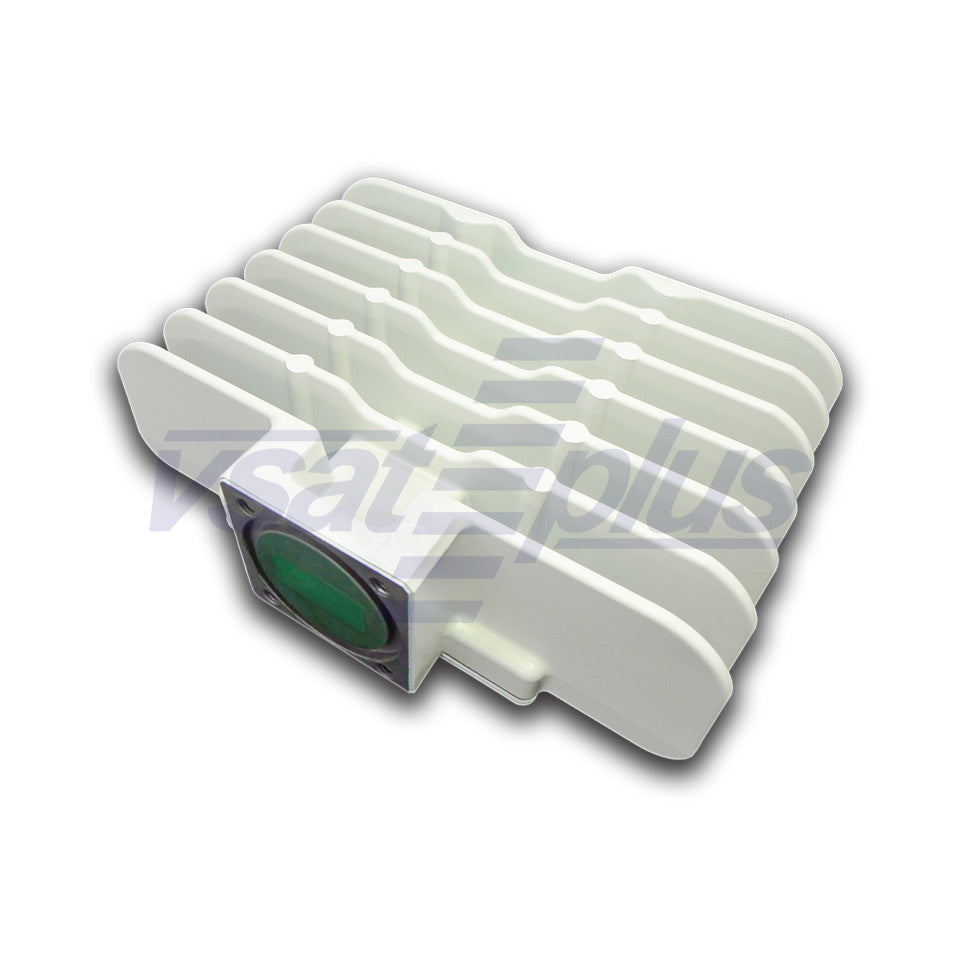

New Japan Radio NJT8376 series (Universal Ku-band 6W BUC, Compact model)

New Japan Radio NJT8376 series (Universal Ku-band 6W BUC, Compact model)

Model
Request for a quote

Series Model Number

  • Numbering System

  • Line-up

NJT8376UN

NJT8376UN

NJT8376UF

NJT8376UF

NJT8376 series (Universal Ku-band 6W BUC, Compact model)

  • Ultra-compact & Ultra Light Weight
    • Weight: 540 g
  • Frequency Organization
    • RF Frequency: 13.75 to 14.5 GHz
    • IF Frequency: 950 to 1,700 MHz
    • LO Frequency: 12.8 to 13.05 GHz
  • High Efficiency & Low Distortion Output Power
    • P1dB: +37.8 dBm min. over temperature
    • ACPR: -26 dBc @ Pout = +37.0 dBm
    • Power Consumption: 34 W
  • Other Features
    • RoHS Compliance

NJT8376 Specifications

RF Output Interface Waveguide, WR75 (with Groove)

IF Input Interface

Coax. Connector, N-type Female (50 Ω)

Coax. Connector, F-type Female (75 Ω)

P1dB Output Power (@ 1dB G.C.P.) +37.8 dBm min. over temperature
ACPR -26 dBc typ. @ Pout = +37.0 dBm
Linear Gain 62 dB nom., 56 dB min.
Input Power Voltage Requirement +24 VDC (+12 to +30 VDC)
Power Consumption @ P1dB 34 W typ., 38 W max.
Operating Temperature Range -40 to +60 ℃
Waterproof / Dustproof (IP-code)
IP67
Weight 540 g
Dimension
(w/o Interfaces & Screws)
(L) 98 x (W) 128 x (H) 42.5 mm
