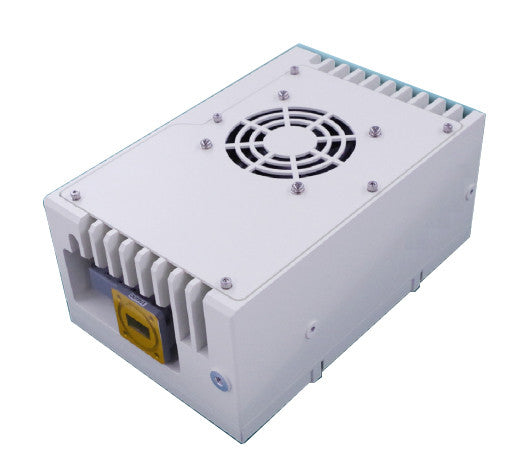

New Japan Radio NJT8371FMK 40W GAN Standard Ku-Band Robust BUC

New Japan Radio NJT8371FMK 40W GAN Standard Ku-Band Robust BUC

40W C-Band BUC

NJRC NJT8371FMK 40W GAN Ku-Band Robust-BUC RF Frequency: 14.0 to 14.5 GHz (Standard Ku-band) Local Frequency: 13.05 GHz IF Frequency: 950 to 1,450 MHz GaN Technology Amplifier Inside RF Frequency Line-up High Efficiency Output Power Saturation Output Power: +46.0 dBm ACPR: -30 dBc @ Pout = +44.0 dBm Power Consumption:...

  • Category: All Products, Block Upconverter BUC, Featured products, Ku-Band Block Upconverter BUC, New Arrivals, New Japan Radio

NJRC NJT8371FMK 40W GAN Ku-Band Robust-BUC

  • RF Frequency: 14.0 to 14.5 GHz (Standard Ku-band)
  • Local Frequency: 13.05 GHz
  • IF Frequency: 950 to 1,450 MHz
  • GaN Technology Amplifier Inside
  • RF Frequency Line-up
  • High Efficiency Output Power
    • Saturation Output Power: +46.0 dBm
    • ACPR: -30 dBc @ Pout = +44.0 dBm
    • Power Consumption: 260 W
  • AC Power Operation Option
  • Monitor & Control Option
    • FSK Communications M&C
  • Compact Size & Light Weight
    • Dimension: 230 (L) x 150 (W) x 100 (H) mm
    • Weight: 4.4 kg

NJT8371FMK OUTLINE DRAWING
NJT8371FMK

Item

Specifications

Saturation Output Power

+46 dBm min. @ +25 °C /   +45 dBm min. over temperature

Linear Gain

72 dB nom., 66 dB min.

Gain Variation over frequency

Standard Ku-band: Universal Ku-band:

5 dBp-p max. over 500 MHz   /   2 dBp-p max. over 54 MHz

5 dBp-p max. over 750 MHz   /   2 dBp-p max. over 54 MHz

Gain Stability over temperature

2 dBp-p typ., 4 dBp-p max.

ACPR

-30 dBc typ., -26 dBc min. @ Pout = +44 dBm

L.O. Phase Noise

-60 dBc/Hz max. @ 100 Hz    -70 dBc/Hz max. @ 1 kHz    -80 dBc/Hz max. @ 10 kHz

-90 dBc/Hz max. @ 100 kHz  -100 dBc/Hz max. @ 1 MHz

Input V.S.W.R. /  Output V.S.W.R.

2 : 1 max.  / 1.5 : 1 max.

DC Power Requirement

(1)  Voltage Range

(2)  Power Consumption     @No IF Signal

@ Pout=+44dBm

@ Psat

+36 to +60 VDC 120 W typ. 220 W typ.

260 W typ., 290 W max.

Mute

Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal

M&C

Interface: FSK Communications Signal / RS-232C

Function: Power Monitor / TX On/Off Control / Alarm / Digital Step Attenuator … etc

Temperature Range (ambient) Operating: Storage:

-40 to +60 °C

-40 to +75 °C

Dimension & Housing

230 (L) x 150 (W) x 100 (H) mm  without interface connectors and screws

Weight

4.4 kg [9.1 lbs ]
