25W Ku-Band BUCs
New Japan Radio

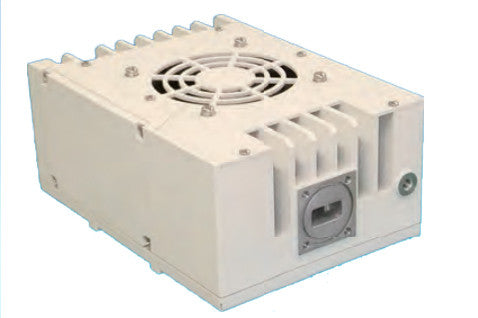

NJRC NJT8370UFMR GAN 25W Universal Ku-Band BUC
- RF Frequency: 13.75 to 14.5 GHz (Universal Ku-band)
- Local Frequency: 12.80 GHz
- IF Frequency: 950 to 1,700 MHz
- IF Connector: F-Type
- Power Supply: +36 to +60 V DC Power
- Port for Voltage Input: MS Connector
- M&C Option: RS-232C M&C
- GaN Technology Amplifier Inside
- High Temperature Operating
- Operation Temperature Range: -40 to +75 ºC
- High Efficiency Output Power
- Saturation Output Power: +44.0 dBm
- ACPR: -30 dBc @ Pout = +42.0 dBm
- Power Consumption: 190 W
- Compact Size & Light Weight
- Dimension: 180 (L) x 130 (W) x 80 (H) mm
- Weight: 2.5 kg
NJT8370UFMR OUTLINE DRAWING
|Output Interface||Waveguide, WR75 (with Groove)|
|Input Interface||N-type, female (50 ohm)
[Model No.: NJT8370*N]
|F-type, female (75 ohm)
[Model No.: NJT8370*F]
|Saturation Output Power||
+44 dBm min. @ +25 ºC
|Linear Gain||72 dB nom., 66 dB min.|
|Power Requirement||+48 VDC (+36 to +60 VDC)|
|100 to 240 VAC [AC Power Oparating Option]|
|Power Consumption||120 W typ. @ No IF signal
180 W typ. @ Pout = +42 dBm
200 W typ., 230 W max. @ Psat
|Temperature Range (ambient)
Operation Guarantee: -40 to +75 ºC
Performance Guarantee: -40 to +60 ºC
-40 to +75 ºC
|Weight||2.5 kg [5.5 lbs]|
