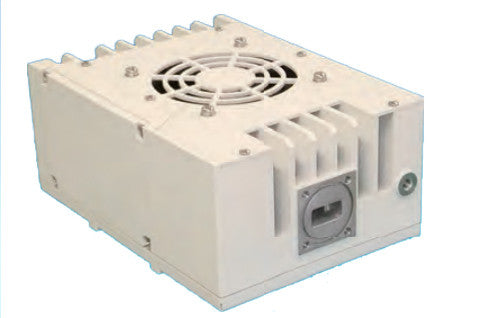

New Japan Radio NJT8370NMK GAN 25W Standard Ku-Band BUC

New Japan Radio NJT8370NMK GAN 25W Standard Ku-Band BUC

Power Option
Request for a quote

SKU: NJT8370NMK

NJRC NJT8370NMK GAN 25W Standard Ku-Band BUC

  • RF Frequency: 14.0 to 14.5 GHz (Standard Ku-band)
  • Local Frequency: 13.05 GHz
  • IF Frequency: 950 to 1,450 MHz
  • IF Connector: N-Type
  • Power Supply: +36 to +60 V DC Power
  • Port for Voltage Input: MS Connector
  • M&C Option: FSK M&C
  • GaN Technology Amplifier Inside
  • High Temperature Operating
    • Operation Temperature Range: -40 to +75 ºC
  • High Efficiency Output Power
    • Saturation Output Power: +44.0 dBm
    • ACPR: -30 dBc @ Pout = +42.0 dBm
    • Power Consumption: 190 W
  • AC Power Operation Option
  • Monitor & Control Option
    • FSK Communications M&C
  • Compact Size & Light Weight
    • Dimension: 180 (L) x 130 (W) x 80 (H) mm
    • Weight: 2.5 kg

NJT8370NMK OUTLINE DRAWING
NJT8370NMK

Item Specifications
Output Interface Waveguide, WR75 (with Groove)
Input Interface N-type, female (50 ohm)
[Model No.: NJT8370*N]
F-type, female (75 ohm)
[Model No.: NJT8370*F]
Saturation Output Power

+44 dBm min. @ +25 ºC
+43 dBm min. over temperature

Linear Gain 72 dB nom., 66 dB min.
Power Requirement +48 VDC (+36 to +60 VDC)
100 to 240 VAC [AC Power Oparating Option]
Power Consumption 120 W typ. @ No IF signal
180 W typ. @ Pout = +42 dBm
200 W typ., 230 W max. @ Psat
Temperature Range (ambient)
[Operating]

[Storage]

Operation Guarantee: -40 to +75 ºC
Performance Guarantee: -40 to +60 ºC
-40 to +75 ºC
Weight 2.5 kg [5.5 lbs]
