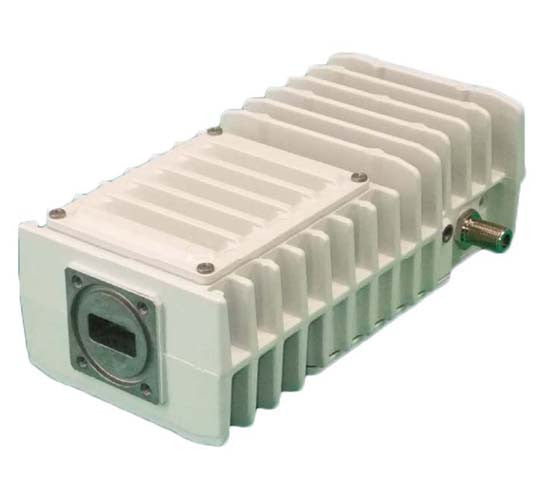

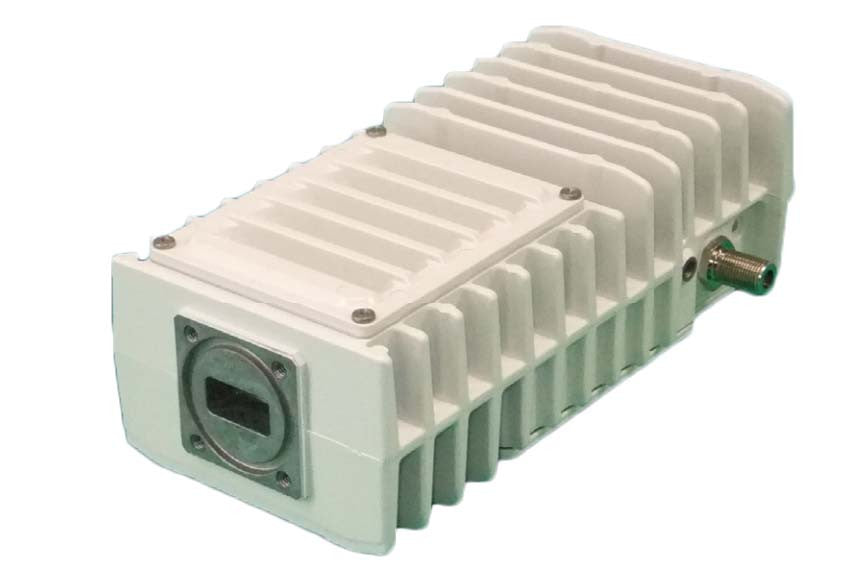

NJRC NJT8306N 6W Standard Ku-Band BUC (14.0 to 14.5 GHz)
- RF Frequency Line-up
- Standard Ku-Band: 14.0 to 14.5 GHz
- High Efficiency Output Power
- ACPR: -26 dBc @ Pout = +37.8 dBm
- P1dB: +37.8 dBm min. over temperature
- Power Consumption: 45 W
- Smaller Size & Lighter Weight
- Dimension: 174.9 (L) × 84 (W) × 59.2 (H) mm
- LED Indicator Equipped
- Monitering L.O. Lock
- Weight: 1.3 kg
NJT8306N Diagrams
NJT8306N Specifications | |
---|---|
Output Power @ 1dB G.C.P. (P1dB) | +37.8 dBm min. over temperature |
Linear Gain | 62 dB nom., 56 dB min. |
Gain Variation over frequency Universal Ku-Band Standard Ku-Band |
5 dBp-p max. over 750 MHz / 2 dBp-p max. over 54 MHz 5 dBp-p max. over 500 MHz / 2 dBp-p max. over 54 MHz |
Gain Stability over temperature | 2 dBp-p typ., 4 dBp-p max. |
ACPR | -26 dBc @ Pout = +37.8 dBm |
L.O. Phase Noise | -60 dBc/Hz max. @ 100 Hz -70 dBc/Hz max. @ 1 kHz -80 dBc/Hz max. @ 10 kHz -90 dBc/Hz max. @ 100 kHz -100 dBc/Hz max. @ 1 MHz |
Input V.S.W.R. | 2 : 1 max. |
Output Load VSWR for Recomendation for Non-Damange |
1.3 : 1 max. 3 : 1 max. |
Power Requirement (1) Voltage Range (2) Power Consumption @ P1dB |
12 to 30 V DC Power 35 W typ. @ No IF signal 45 W typ., 50 W max. @ Pout = +37.8 dBm 3 W max. @ 10 MHz reference off (Mute on) |
Mute | Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal |
Temperature Range (ambient) | Operating: -40 to +55 ºC / Storage: -40 to +75 ºC |
Dimension & Housing | 174.9 (L) x 84 (W) x 59.2 (H) mm without interface connector |
Weight | 1.3 kg |
