VSATplus International Inc.

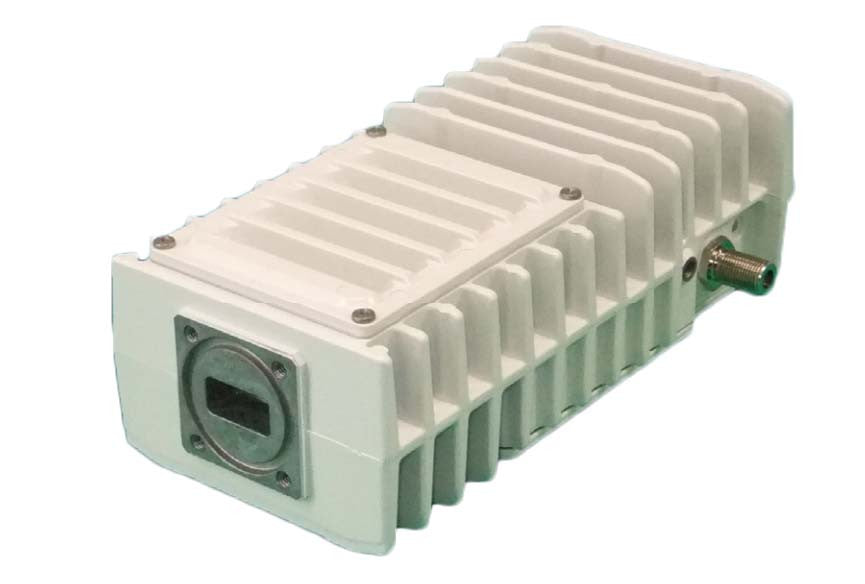

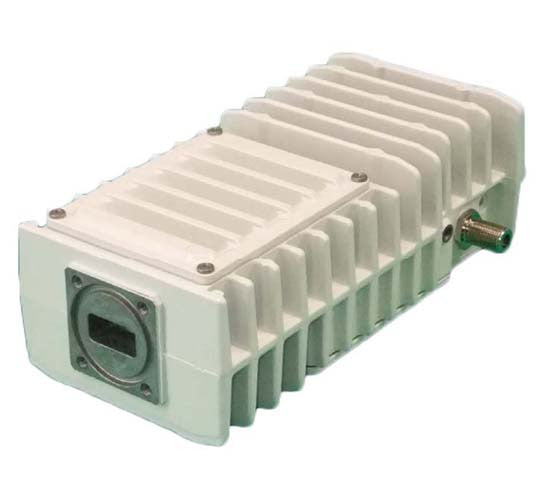

New Japan Radio NJT8306F 6W Standard Ku-Band BUC

Not Specified

6W Ku-Band BUCs

New Japan Radio

NJRC NJT8306F 6W Standard Ku-Band  BUC (14.0 to 14.5 GHz) RF Frequency Line-up Standard Ku-Band: 14.0 to 14.5 GHz High Efficiency Output Power ACPR: -26 dBc @ Pout = +37.8 dBm P1dB: +37.8 dBm min. over temperature Power Consumption: 45 W Smaller Size & Lighter Weight Dimension: 174.9 (L) ×...
-
+
USD 575.00
USD 575.00
Add to wishlist

NJRC NJT8306F 6W Standard Ku-Band  BUC (14.0 to 14.5 GHz)

  • RF Frequency Line-up
    • Standard Ku-Band: 14.0 to 14.5 GHz
  • High Efficiency Output Power
    • ACPR: -26 dBc @ Pout = +37.8 dBm
    • P1dB: +37.8 dBm min. over temperature
    • Power Consumption: 45 W
  • Smaller Size & Lighter Weight
    • Dimension: 174.9 (L) × 84 (W) × 59.2 (H) mm
  • LED Indicator Equipped
    • Monitering L.O. Lock
    • Weight: 1.3 kg

NJT8306F Diagrams
NJT8306F

NJT8306 Specifications
Output Power @ 1dB G.C.P. (P1dB) +37.8 dBm min. over temperature
Linear Gain 62 dB nom., 56 dB min.
Gain Variation over frequency
    Universal Ku-Band
    Standard Ku-Band

5 dBp-p max. over 750 MHz / 2 dBp-p max. over 54 MHz
5 dBp-p max. over 500 MHz / 2 dBp-p max. over 54 MHz
Gain Stability over temperature 2 dBp-p typ., 4 dBp-p max.
ACPR -26 dBc @ Pout = +37.8 dBm
L.O. Phase Noise -60 dBc/Hz max. @ 100 Hz
-70 dBc/Hz max. @ 1 kHz
-80 dBc/Hz max. @ 10 kHz
-90 dBc/Hz max. @ 100 kHz
-100 dBc/Hz max. @ 1 MHz
Input V.S.W.R. 2 : 1 max.
Output Load VSWR
    for Recomendation
    for Non-Damange

1.3 : 1 max.
3 : 1 max.
Power Requirement
(1) Voltage Range
(2) Power Consumption @ P1dB


12 to 30 V DC Power
35 W typ. @ No IF signal
45 W typ., 50 W max. @ Pout = +37.8 dBm
3 W max. @ 10 MHz reference off (Mute on)
Mute Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal
Temperature Range (ambient) Operating: -40 to +55 ºC / Storage: -40 to +75 ºC
Dimension & Housing 174.9 (L) x 84 (W) x 59.2 (H) mm without interface connector
Weight 1.3 kg
