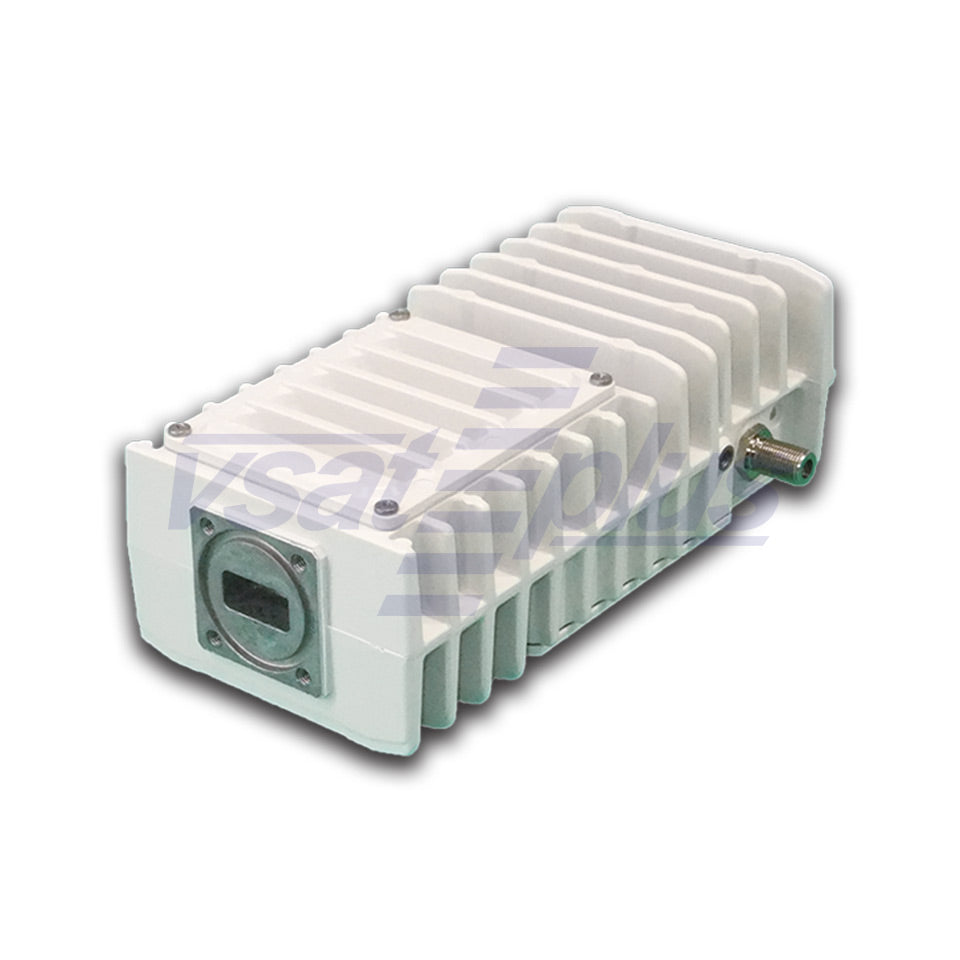

NJT8306 series (Universal Ku-band 6W BUC, Low Distortion model)
-
Frequency Organization
- RF Frequency: 13.75 to 14.5 GHz
- IF Frequency: 950 to 1,700 MHz
- LO Frequency: 12.8 GHz
-
High Temperature Operating Guarantee
- Operating Guarantee Temperature Range: -40 to +65 ℃
-
High Efficiency & Low Distortion Output Power
- P1dB: +37.8 dBm min. over temperature
- ACPR: -30 dBc @ Pout = +37.0 dBm
- Power Consumption: 40 W
-
Slim Size & Light Weight
- Weight: 1.2 kg
- Other Features
- LED Indicator Equipped
- RoHS Compliance
NJT8306 Diagrams
NJT8306 Specifications |
|
|---|---|
| RF Output Interface | Waveguide, WR75 (with Groove) |
|
IF Input Interface |
Coax. Connector, N-type Female (50 Ω) Coax. Connector, F-type Female (75 Ω) |
| P1dB Output Power (@ 1dB G.C.P.) |
+37.8 dBm min. over temperature |
| ACPR | -30 dBc typ., -24 dBc max. @ Pout = +37.8 dBm |
| Linear Gain | 62 dB nom., 56 dB min. |
| Input Power Voltage Requirement | +24 VDC (+12 to +30 VDC) |
| Power Consumption @ P1dB | 40 W typ., 48 W max. |
| Operating Temperature Range |
Operating Guarantee Range: -40 to +65 ℃ Performance Guarantee Temperature Range: -40 to +60 ℃ |
|
Waterproof / Dustproof (IP-code) |
IP67 |
| Weight | 1.2 kg |
|
Dimension (w/o Interfaces & Screws) |
(L) 174.9 x (W) 84 x (H) 59.2 mm |
