NJRC NJT8304UF 4W Universal Ku-Band BUC Output Frequency Range: 13.75 - 14.5 GHz L.O. Frequency: 12.80 GHz IF Input Frequency: 950 - 1,700 MHz Output Power @ P1dB: +36.0 dBm min. over temp. DC Power Input: 24V (+12 - 30V)...

  • Category: All Products, Block Upconverter BUC, Featured products, Ku-Band Block Upconverter BUC, New Japan Radio

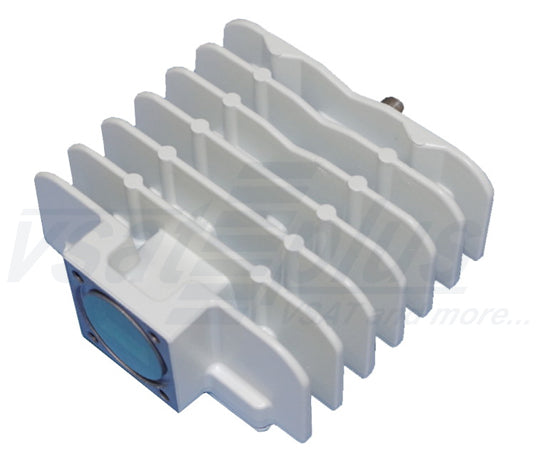

NJRC NJT8304UF 4W Universal Ku-Band BUC

  • Output Frequency Range: 13.75 - 14.5 GHz
  • L.O. Frequency: 12.80 GHz
  • IF Input Frequency: 950 - 1,700 MHz
  • Output Power @ P1dB: +36.0 dBm min. over temp.
  • DC Power Input: 24V (+12 - 30V)
  • Input Connector: F-Type
  • Weight: 500g

NJT8304UF Mechanical Drawing
NJT8304UF

NJT8304UF General Specifications
Output Interface Waveguide, WR-75 with Groove
Input Interface F-Type, female (50 ohm)
Output Power @ 1dB G.C.P. +36 dBm min. over temperature
Linear Gain 62 dB typ., 56 dB min.
ACPR -26 dBc typ. @ Pout = +35.5 dBm
L.O. Phase Noise -60 dBc/Hz max. @ 100 Hz
-70 dBc/Hz max. @ 1 kHz
-80 dBc/Hz max. @ 10 kHz
-90 dBc/Hz max. @ 100 kHz
-100 dBc/Hz max. @ 1 MHz
L.O. Phase Noise -60 dBc/Hz max. @ 100 Hz
-70 dBc/Hz max. @ 1 kHz
-80 dBc/Hz max. @ 10 kHz
-90 dBc/Hz max. @ 100 kHz
-100 dBc/Hz max. @ 1 MHz
Input V.S.W.R. 2 : 1 max.
Output V.S.W.R. 2 : 1 max.
Power Requirement DC Power, +24 V (Range: +12 to +30 V)
Power Consumption 24W typ. @ No IF Signal
28W typ., 32W max @ Pout =+36 dBm
2W max. @ 10 MHz Reference Off (Mute on)
Mute Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal
Temperature Range (ambient)
    Operating
    Storage

-40 to +60°C
-40 to +75°C
Dimension & Housing 98 (L) x 98 (W) x 42.5 (H) mm
Weight 500 g
