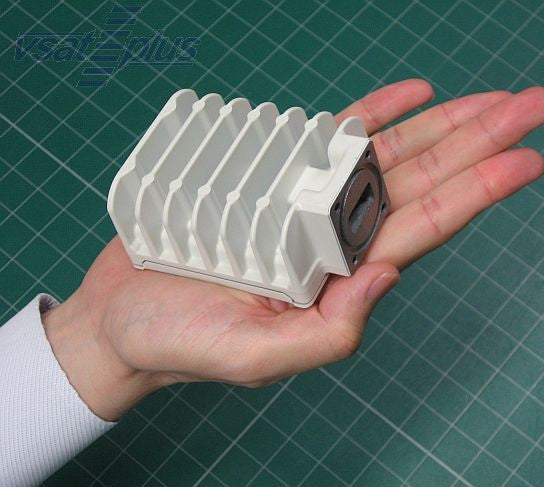

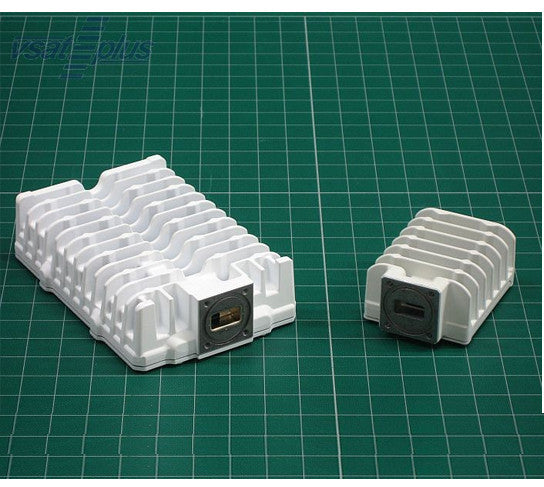

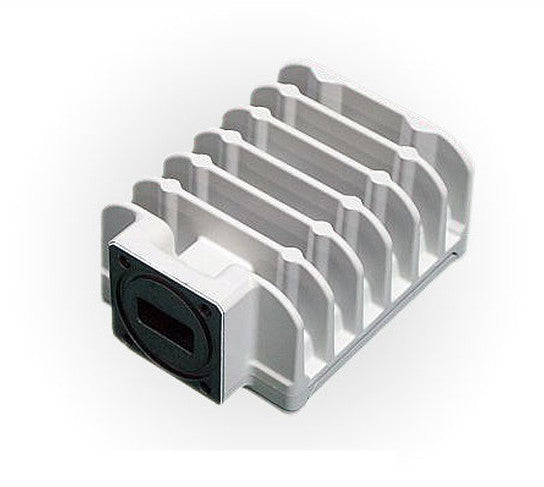

NJRC NJT8302UN 3W Universal Ku-Band BUC

Features

  • Output Frequency Range: 13.75 to 14.5 GHz
  • L.O. Frequency: 12.80 GHz
  • IF Input Frequency: 950 to 1,700 MHz
  • Output Power @ P1dB: +34.0 dBm min. over temp.
  • DC Power Input: 24V (+12 - +30V) @ 23W max via input
  • Input Connector: N-type
  • Weight 0.77 Lbs. (350g)

NJT8302N Mechanical Drawing
NJT8302UN

NJT8302UN General Specifications
Output Interface Waveguide, WR75 with Groove
Input Interface N-type, female (50 ohm)
Output Power @ 1dB G.C.P. +34 dBm min. over temperature
Linear Gain 58 dB typ., 51 dB min.
ACPR -26 dBc typ. @ Pout = +34 dBm
Requirement for External Reference
Frequency 10 MHz (sine-wave)
Input Power -5 to +5 dBm @ Input port
Phase Noise -125 dBc/Hz max. @ 100 Hz
-135 dBc/Hz max. @ 1 kHz
-140 dBc/Hz max. @ 1 MHz
L.O. Phase Noise -60 dBc/Hz max. @ 100 Hz
-70 dBc/Hz max. @ 1 kHz
-80 dBc/Hz max. @ 10 kHz
-90 dBc/Hz max. @ 100 kHz
-100 dBc/Hz max. @ 1 MHz
Receive Band Noise Density -156 dBm/Hz max. @ 10.95 to 12.75 GHz
Input V.S.W.R. 2:1 max.
Output V.S.W.R. 2:1 max.
Power Requirement DC Power, +24 V (Range: +12 to +30 V)
Power Consumption 18W typ., 23 W max. @ Pout =+34 dBm
15W max. @ No IF and +25°C
2W max. @ 10 MHz Reference Off (Mute on)
Mute Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal
Temperature Range (ambient)
    Operating
    Storage

-40 to +55°C
-40 to +75°C
Humidity 0 to 100%
Altitude 15,000 feet (4572m)
Dimension & Housing 91.55 (L) x 68 (W) x 42.5 (H) mm (3.60" x 2.68" x 1.67")
Weight 350 g (0.77 lbs)
