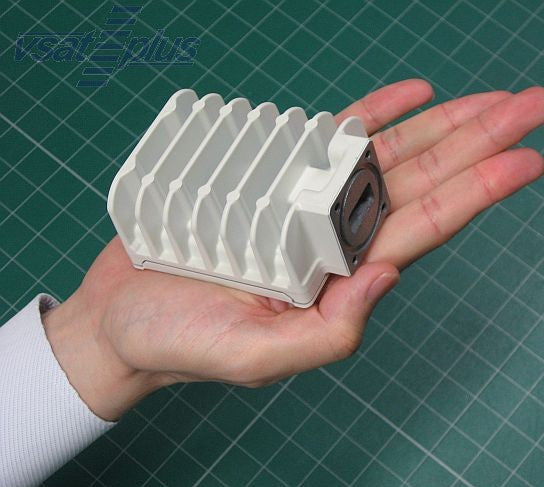

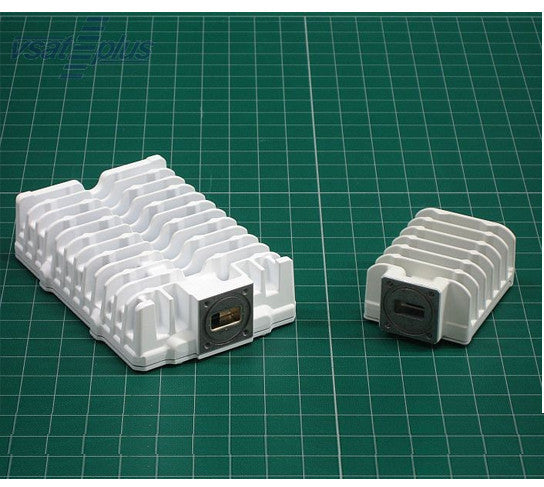

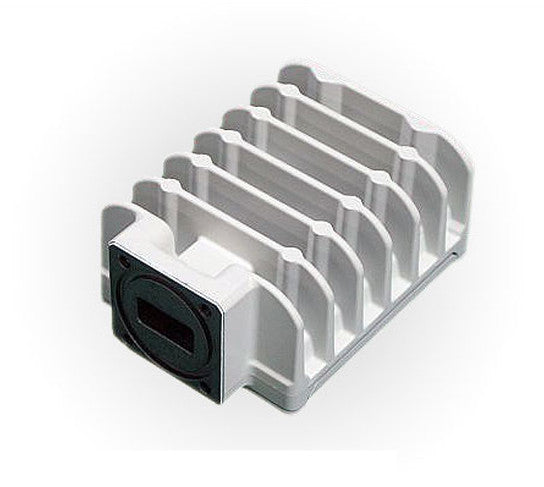

New Japan Radio NJT8302N 3W Standard Ku-Band BUC

New Japan Radio NJT8302N 3W Standard Ku-Band BUC

Request for a quote

SKU: NJT8302N

NJRC NJT8302N 3W STANDARD KU-BAND BUC (14.0 to 14.5 GHz)

FEATURES

  • Output Frequency Range: 14.0 to 14.5 GHz
  • LO Frequency: 13.05 GHz
  • IF Input Frequency: 950 to 1,450 MHz
  • Output Power @ P1dB: +34.0 dBm min. over temp.
  • DC Power Input: 24V (+12 - +30V) @ 23W max via input
  • Input Connector: N-type
  • Weight 0.77 Lbs. (350g)



    OUTLINE DRAWINGS
    NJT8302N



    NJT8302N General Specifications
    Output Interface Waveguide, WR75 with Groove
    Input Interface N-type, female (50 ohm)
    Output Power @ 1dB G.C.P. +34 dBm min. over temperature
    Linear Gain 58 dB typ., 51 dB min.
    ACPR -26 dBc typ. @ Pout = +34 dBm
    Requirement for External Reference
    Frequency 10 MHz (sine-wave)
    Input Power -5 to +5 dBm @ Input port
    Phase Noise -125 dBc/Hz max. @ 100 Hz
    -135 dBc/Hz max. @ 1 kHz
    -140 dBc/Hz max. @ 1 MHz
    L.O. Phase Noise -60 dBc/Hz max. @ 100 Hz
    -70 dBc/Hz max. @ 1 kHz
    -80 dBc/Hz max. @ 10 kHz
    -90 dBc/Hz max. @ 100 kHz
    -100 dBc/Hz max. @ 1 MHz
    Receive Band Noise Density -156 dBm/Hz max. @ 10.95 to 12.75 GHz
    Input V.S.W.R. 2:1 max.
    Output V.S.W.R. 2:1 max.
    Power Requirement DC Power, +24 V (Range: +12 to +30 V)
    Power Consumption 18W typ., 23 W max. @ Pout =+34 dBm
    15W max. @ No IF and +25°C
    2W max. @ 10 MHz Reference Off (Mute on)
    Mute Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal
    Temperature Range (ambient)
        Operating
        Storage

    -40 to +55°C
    -40 to +75°C
    Humidity 0 to 100%
    Altitude 15,000 feet (4572m)
    Dimension & Housing 91.55 (L) x 68 (W) x 42.5 (H) mm (3.60" x 2.68" x 1.67")
    Weight 350 g (0.77 lbs)
