New Japan Radio NJT8301F 1.5W Standard Ku-Band BUC

1 In stock

1W - 3W Ku-Band BUCs

New Japan Radio

NJRC NJT8301F 1.5W KU-BAND (14.0 TO 14.5 GHZ) BUC RF Frequency: 14.0 to 14.5 GHz (Standard Ku-Band) Output Interface: Waveguide, WR75 with Groove Input Interface: F-type, female (75 ohm) Output Power @ 1dB G.C.P.: +31 dBm min. over temperature Linear Gain: 55 dB typ., 48 dB min. Power Requirement: DC...
-
+
USD 144.00
USD 144.00
Add to wishlist

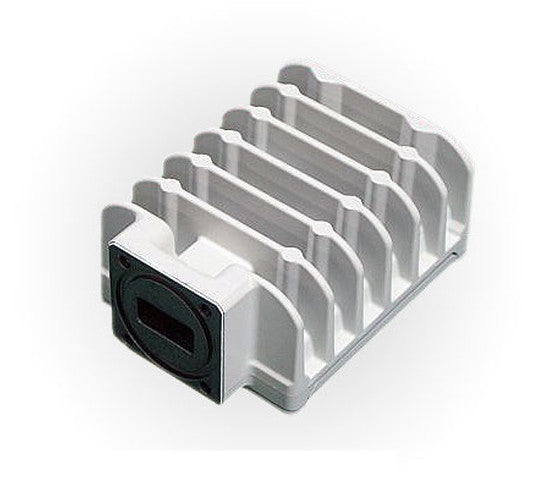

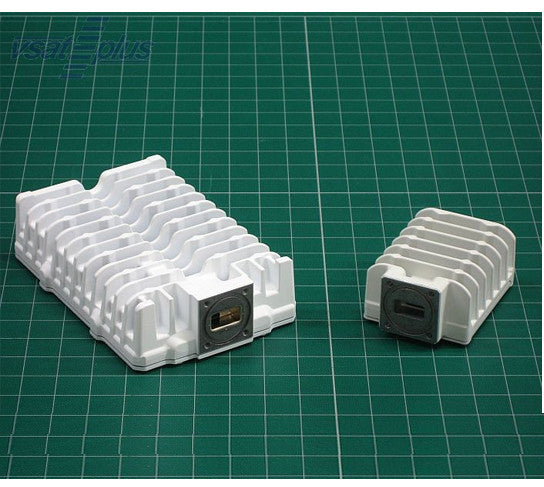

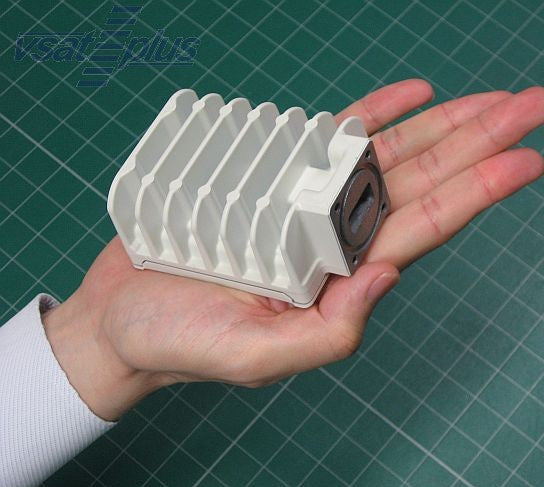

NJRC NJT8301F 1.5W KU-BAND (14.0 TO 14.5 GHZ) BUC

  • RF Frequency: 14.0 to 14.5 GHz (Standard Ku-Band)
  • Output Interface: Waveguide, WR75 with Groove
  • Input Interface: F-type, female (75 ohm)
  • Output Power @ 1dB G.C.P.: +31 dBm min. over temperature
  • Linear Gain: 55 dB typ., 48 dB min.
  • Power Requirement: DC Power, +24 V (Range: +12 to +30 V)
  • Power Consumption:
    • 12 W typ., 14 W max. @ Pout = +31 dBm
    • 11 W max. @ No IF and +25 °C
    • 2 W max. @ 10 MHz Reference Off (Mute on)
  • Weight: 350 g [0.77 lbs]
  • High Efficiency Output Power (P1dB):
  • +31.0 dBm min. over temperature
  • Lower Power Consumption
  • Small Size & Light Weight
  • LED Indicator Equipped
  • RoHS Compliance

Outline Dimensions

NJT8301UF

TYPICAL SPECIFICATIONS


RF Frequency 14.0 to 14.5 GHz (Standard Ku-Band)

Output Interface

Waveguide, WR75 with Groove

Input Interface

F-type, female (75 ohm)

Output Power @ 1dB G.C.P.

+31 dBm min. over temperature

Linear Gain

55 dB typ., 48 dB min.

ACPR

-26 dBc typ. @ Pout = +31 dBm


Requirement for External Reference

Frequency

10 MHz (sine-wave)

Input Power

-5 to +5 dBm @ Input port



Phase Noise



@ 100 Hz -125 dBc/Hz max.
@ 1 kHz -135 dBc/Hz max.
@ 10 kHz -140 dBc/Hz max.


L.O. Phase Noise



@ 100 Hz -60 dBc/Hz max.
@ 1 kHz -70 dBc/Hz max.
@ 10 kHz -80 dBc/Hz max.
@ 100 kHz -90 dBc/Hz max.
@ 1 MHz -100 dBc/Hz max.





Receive Band Noise Density

156 dBm/Hz max. @ 10.95 to 12.75 GHz

Input V.S.W.R.

2 : 1 max.

Output V.S.W.R.

2 : 1 max.

Power Requirement

DC Power, +24 V (Range: +12 to +30 V)

Power Consumption

12 W typ., 14 W max. @ Pout = +31 dBm



11 W max. @ No IF and +25 °C



2 W max. @ 10 MHz Reference Off (Mute on)

Mute

Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal


Mechanical & Environmental

Temperature Range (ambient)

Operating: -40 to +55 °C
Storage: -40 to +75 °C

Humidity

0 to 100 %

Altitude

15,000 feet [4572 m]

Dimension & Housing

91.55 (L) x 68 (W) x 42.5 (H) mm [3.60” (L) x 2.68” (W) x 1.67” (H)] without interface connector

Weight

350 g [0.77 lbs]
