3W C-Band BUC
New Japan Radio

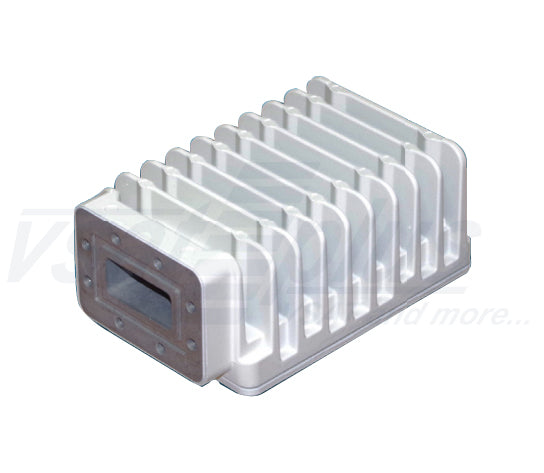

NJRC NJT8103WN 3W Full C-Band BUC
- Output Frequency Range: 5.85 - 6.725 GHz
- L.O. Frequency: 4.90 GHz
- IF Frequency: 950 - 1825 MHz
- Output Power @P1dB: +34.5 dBm min over temp
- DC Power Input: 24V (+12 - 30V)
- Input Connector: N-Type
- Weight: 1.8 lbs (800g)
|NJT8302 General Specifications|
|Output Interface||Waveguide, WR75 with Groove|
|Input Interface||F-type, female (75 ohm)|
|Output Power @ 1dB G.C.P.||+34 dBm min. over temperature|
|Linear Gain||58 dB typ., 51 dB min.|
|ACPR||-26 dBc typ. @ Pout = +34 dBm|
|Requirement for External Reference|
|Frequency||10 MHz (sine-wave)|
|Input Power||-5 to +5 dBm @ Input port|
|Phase Noise||-125 dBc/Hz max. @ 100 Hz
-135 dBc/Hz max. @ 1 kHz
-140 dBc/Hz max. @ 1 MHz
|L.O. Phase Noise||-60 dBc/Hz max. @ 100 Hz
-70 dBc/Hz max. @ 1 kHz
-80 dBc/Hz max. @ 10 kHz
-90 dBc/Hz max. @ 100 kHz
-100 dBc/Hz max. @ 1 MHz
|Receive Band Noise Density||-156 dBm/Hz max. @ 10.95 to 12.75 GHz|
|Input V.S.W.R.||2:1 max.|
|Output V.S.W.R.||2:1 max.|
|Power Requirement||DC Power, +24 V (Range: +12 to +30 V)|
|Power Consumption||18W typ., 23 W max. @ Pout =+34 dBm
15W max. @ No IF and +25°C
2W max. @ 10 MHz Reference Off (Mute on)
|Mute||Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal|
|Temperature Range (ambient)
-40 to +55°C
-40 to +75°C
|Humidity||0 to 100%|
|Altitude||15,000 feet (4572m)|
|Dimension & Housing||91.55 (L) x 68 (W) x 42.5 (H) mm (3.60" x 2.68" x 1.67")|
|Weight||350 g (0.77 lbs)|
