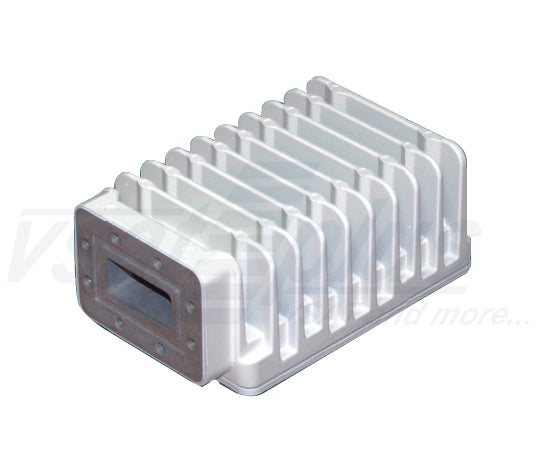

NJRC NJT8102WN 2W Full C-Band BUC

Features

  • Output Frequency Range: 5.85 - 6.725 GHz
  • L.O. Frequency: 4.90 GHz
  • IF Frequency: 950 - 1825 MHz
  • Output Power @P1dB: +33.0 dBm min over temp
  • DC Power Input: 24V (+12 - 30V)
  • Input Connector: N-Type
  • Weight: 1.8 lbs (800g)
Item Specifications
Output Interface Waveguide, CPR137 (with Groove)
Input Interface N-type, female (50 ohm)
[Model No.: NJT8102N / NJT8102WN]
F-type, female (75 ohm)
[Model No.: NJT8102F / NJT8102WF]
Output Power @ 1dB G.C.P. +33 dBm min. over temperature
Linear Gain 58 dB nom., 52 dB min.
Power Requirement +24 VDC (+12 to +30 VDC)
Power Consumption 18 W typ. @ Pout = +33.0 dBm
Weight 800 g [1.8 lbs]
