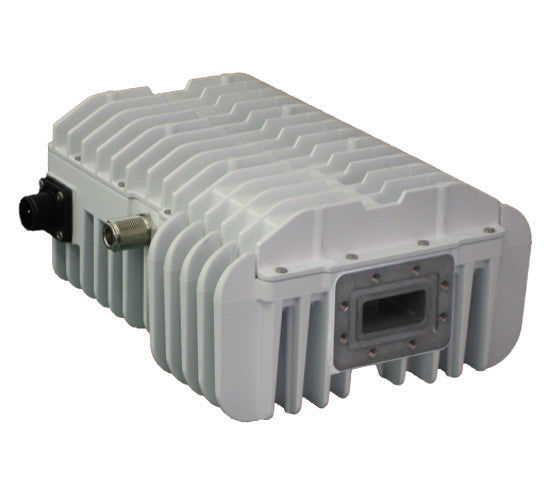

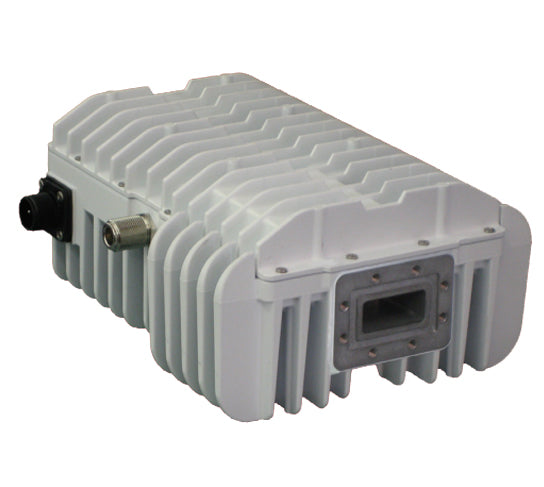

New Japan Radio NJT5763N 10W Full C-Band BUC

1 In stock

10W C-Band BUCs

New Japan Radio

4.0 kg4.0 kg4.0 kg

NJRC NJT5763N 10W Full C-Band BUC Input Frequency: 5.85 to 6.725 GHz Small form factor Input Connector: N-Type Female Output Connector: CPR 137 waveguide with groove   Features High Efficiency & Low Distortion: P1dB: +40 dBm min. over temperature IM3: -28 dBc @ Pout = +37 dBm Power Consumption: 85W...
Power Supply *
-
+
USD 1,750.00
USD 1,750.00
Add to wishlist

NJRC NJT5763N 10W Full C-Band BUC

  • Input Frequency: 5.85 to 6.725 GHz
  • Small form factor
  • Input Connector: N-Type Female
  • Output Connector: CPR 137 waveguide with groove
  •

    Features

  • High Efficiency & Low Distortion:
  • P1dB: +40 dBm min. over temperature
  • IM3: -28 dBc @ Pout = +37 dBm
  • Power Consumption: 85W max
  • Wide Operating Range
  • Voltage Range: +18 to +60 VDC
  • Compact Size & Light Weight
  • Weight: 3.2 kg
  • LED Indicator
  • ROHS Compliance
  • NJT5763N Outline Drawings
    NJT5763N

    NJT5763N Specifications
    RF Frequency 5.85-6.725 GHz (Full C-Band)
    Local Frequency 4.90 GHz
    IF Frequency 950-1825 Ghz
    Output Power @P1dB 10W Linear (+40 dBm min)
    General Specifications
    Output Interface Waveguide, CPR137 (with Groove)
    Input Interface N-type Female
    Output Power @ 1 dB G.C.P. +40 dBm min. over temperature
    Linear Gain 64 dB nom. 58 dB min.
    IM3 -24 dBc typ. @ total power <= +40 dBm – 3 dB T.B.D.
    Requirement for External Reference
    Frequency 10 MHz (sine-wave)
    Input Power -5 to +5 dBm @ Input Port
    Phase Noise -125 dBc/Hz max. @ 100 Hz
    -135 dBc/Hz max. @ 1 kHz
    -140 dBc/Hz max. @ 10 kHz
    L.O. Phase Noise
        @ 100 Hz
        @ 1 kHz
        @ 10 kHz
        @ 100 kHz

    -60 dBc/Hz max
    -70 dBc/Hz max
    -80 dBc/Hz max
    -90 dBc/Hz max
    Receive Band Noise Density -87 dBm/4kHz max @3.625 to 4.200 GHz
    Input V.S.W.R. 2.0 : 1 max
    Output V.S.W.R. 2.0 : 1 max
    Power Requirement +24 VDC / 48 VDC (+18 to +60 VDC)
    Power Consumption 85 W max. @ Pout = +40 dBm T.B.D.
    Mute Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal.
    LED Indicator GREEN: L.O. locked / RED: L.O. unlocked or no 10 MHz reference signal
    Temperature Range (ambient)
        Operating
        Storage

    -40 to +55 C
    -40 to +75 C
    Dimensions (L x W x H) 219.5 mm x 175 mm x 99 mm
    (8.64" x 6.89" x 3.90")
    Weight 3.2 kg (7.0 lbs)
