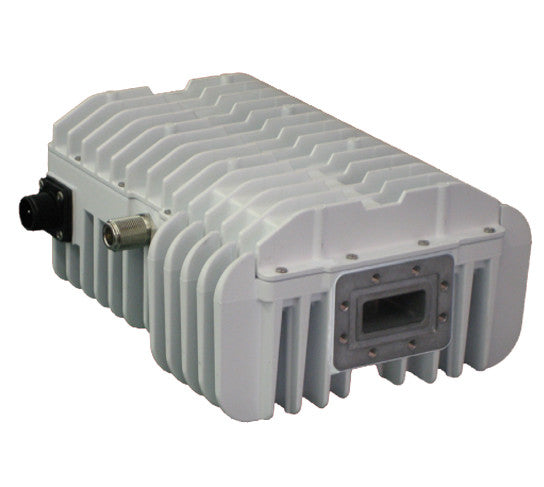

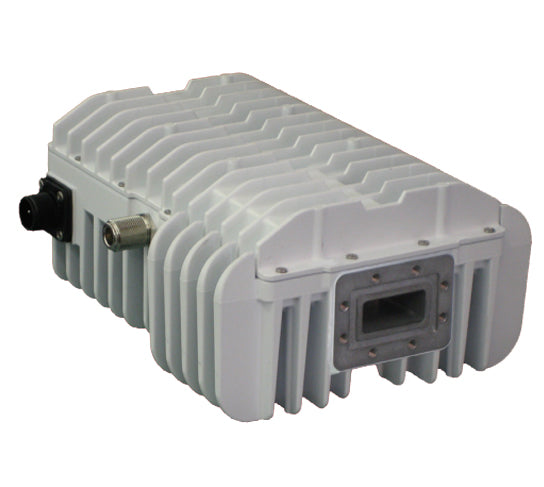

New Japan Radio NJT5762F 10W Standard C-Band BUC

New Japan Radio NJT5762F 10W Standard C-Band BUC

10W C-Band BUCs

NJRC NJT5762F 10W C-Band BUC RF Output Frequency: 5.85 - 6.425 GHz Output Power @P1dB: 10W (+40 dBm) IF Frequency: 950-1525 GHz  Input Connector: Type F Female Output Interface: CPR137 Waveguide Flange (with groove) Power Requirement: +24 / 48 VDC (...

  • Category: All Products, Block Upconverter BUC, C-Band Block Upconverter BUC, New Japan Radio

NJRC NJT5762F 10W C-Band BUC

  • RF Output Frequency: 5.85 - 6.425 GHz
  • Output Power @P1dB: 10W (+40 dBm)
  • IF Frequency: 950-1525 GHz
  • Input Connector: Type F Female
  • Output Interface: CPR137 Waveguide Flange (with groove)
  • Power Requirement: +24 / 48 VDC ( +18 to +60 VDC)
  • Power Consumption: 69W typical/75W
  • Max. Weight: 3.2 kg (7.0 lbs)
  •

    Features

    • High Efficiency & Low Distortion:
      • P1dB: +40 dBm min. over temperature
      • IM3: -28 dBc @ Pout = +37 dBm
      • Power Consumption: 69 W
    • Wide Operating Range of DC Power Operation
      • Voltage Range: +18 to +60 VDC
    • Compact Size & Light Weight
      • Weight: 3.2 kg
    • LED Indicator
    • ROHS Compliance

    NJT5762F Outline Drawing
    NJT5762F Outline Drawing

    NJT5762 Specifications
    RF Frequency 5.85-6.425 GHz (Standard C-Band)
    Local Frequency 4.90 GHz
    IF Frequency 950-1525 Ghz
    Output Power @P1dB 10W Linear (+40 dBm min)
    General Specifications
    Output Interface Waveguide, CPR137 (with Groove)
    Input Interface F-type Female
    Output Power @ 1 dB G.C.P. +40 dBm min. over temperature
    Linear Gain 61 dB nom.
    Requirement for External Reference
    Frequency 10 MHz (sine-wave)
    Input Power -5 to +5 dBm @ Input Port
    Phase Noise -125 dBc/Hz max. @ 100 Hz
    -135 dBc/Hz max. @ 1 kHz
    -140 dBc/Hz max. @ 10 kHz
    L.O. Phase Noise
        @ 100 Hz
        @ 1 kHz
        @ 10 kHz
        @ 100 kHz

    -60 dBc/Hz max
    -70 dBc/Hz max
    -80 dBc/Hz max
    -90 dBc/Hz max
    Receive Band Noise Density -87 dBm/4kHz max
    Input V.S.W.R. 2.0 : 1 max
    Output V.S.W.R. 2.0 : 1 max
    Power Requirement +24 VDC / 48 VDC (+18 to +60 VDC)
    Power Consumption 69W typ. 75W max.
    Mute Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal.
    LED Indicator GREEN: L.O. locked / RED: L.O. unlocked or no 10 MHz reference signal
    Temperature Range (ambient)
        Operating
        Storage

    -40 to +55 C
    -40 to +75 C
    Dimensions (L x W x H) 219.5 mm x 175 mm x 99 mm
    (8.64" x 6.89" x 3.90")
    Weight 3.2 kg (7.0 lbs)
