New Japan Radio NJT5669F 5W Standard C-Band BUC

Not Specified

5W C-Band BUCs

New Japan Radio

2.041 kg

NJRC NJT5669F 5W C-Band BUC RF Output Frequency: 5.85 - 6.425 GHz Output Power @P1dB: 5W (+37 dBm) IF Frequency: 950-1525 GHz Input Connector: Type F Female Output Interface: CPR137 Waveguide Flange (with groove) Power Requirement: +24VDC ( +15 to +30 VDC) Power Consumption: 48W Max Weight: 1.9 kg (4.2...
-
+
USD 463.00
USD 463.00
Add to wishlist

NJRC NJT5669F 5W C-Band BUC

  • RF Output Frequency: 5.85 - 6.425 GHz
  • Output Power @P1dB: 5W (+37 dBm)
  • IF Frequency: 950-1525 GHz
  • Input Connector: Type F Female
  • Output Interface: CPR137 Waveguide Flange (with groove)
  • Power Requirement: +24VDC ( +15 to +30 VDC)
  • Power Consumption: 48W
  • Max Weight: 1.9 kg (4.2 lbs)
  •

    Features

    • High Efficiency Output Power: p1dB: +37 dBm min. over temperature
    • Low Power Consumption: 48W
    • Small Size & Light Weight: 1.9 kg
    • LED Indicator
    • ROHS Compliance

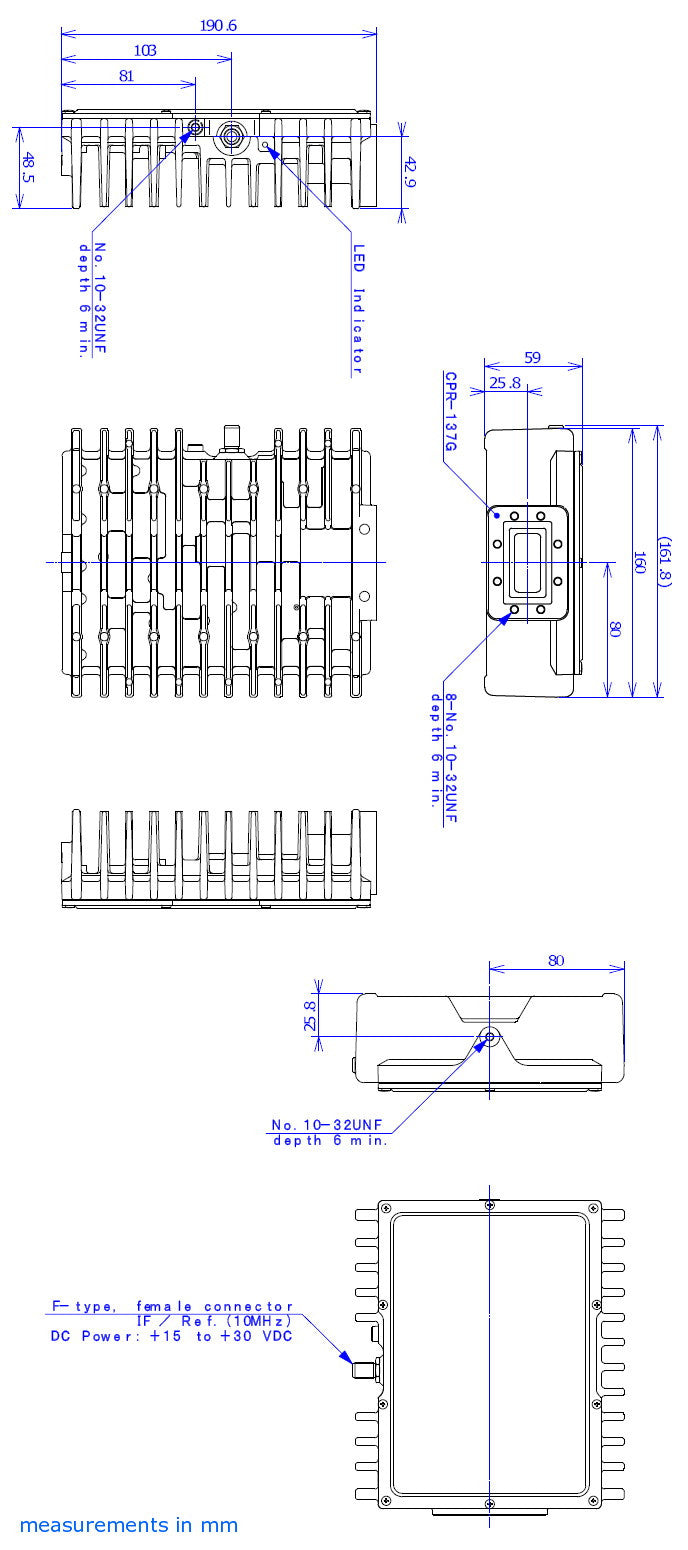

    NJT5669F/70F/75F/77F Outline Drawings
    NJT5669F/NJT5670F/NJT5675F/NJT5677F

    NJT5669F Specifications
    RF Frequency 5.85-6.425 GHz (Standard C-Band)
    Local Frequency 4.90 GHz
    IF Frequency 950-1525 MHz
    Output Power @P1dB 5W Linear (+37 dBm min)
    General Specifications
    Output Interface Waveguide, CPR137 (with Groove)
    Input Interface F-type Female
    Output Power @ 1 dB G.C.P. +37 dBm min. over temperature
    Linear Gain 61 dB nom.
    Requirement for External Reference
    Frequency 10 MHz (sine-wave)
    Input Power -5 to +5 dBm @ Input Port
    Phase Noise 120 dBc/Hz max. @ 100 Hz
    130 dBc/Hz max. @ 1 kHz
    140 dBc/Hz max. @ 10 kHz
    150 dBc/Hz max. @ 100 kHz
    L.O. Phase Noise
        @ 100 Hz
        @ 1 kHz
        @ 10 kHz
        @ 100 kHz

    -60 dBc/Hz max
    -70 dBc/Hz max
    -80 dBc/Hz max
    -90 dBc/Hz max
    Receive Band Noise Density -87 dBm/4kHz max
    Input V.S.W.R. 2.0 : 1 max
    Output V.S.W.R. 2.0 : 1 max
    Power Requirement +24 VDC (+15 to +30 VDC)
    Power Consumption 48 W max
    Mute Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal.
    LED Indicator GREEN: L.O. locked / RED: L.O. unlocked or no 10 MHz reference signal
    Temperature Range (ambient)
        Operating
        Storage

    -40 to +55 C
    -40 to +75 C
    Dimensions (L x W x H) 190.6 mm x 160 mm x 59 mm
    (7.50" x 6.30" x 2.32")
    Weight 1.9 kg (4.2 lbs)
