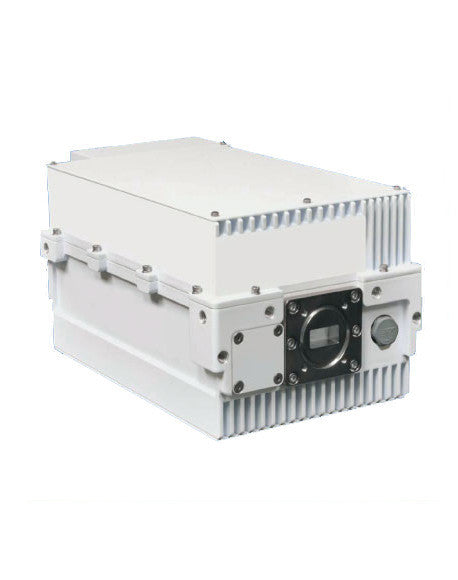

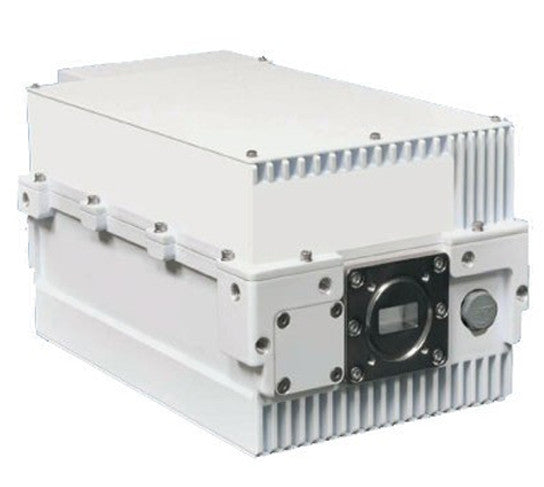

New Japan Radio NJT5353N 25W Standard Ku-Band BUC

New Japan Radio NJT5353N 25W Standard Ku-Band BUC

25W Ku-Band BUCs

LINE UP   OUTLINE DRAWING     Technical Details   Transmitter Watt:  25 Watt   TX Frequency Range:  14.0-14.5 Ghz - Regular KU   Local Oszillator Frequency (LO):  13.05 Ghz Regular KU TX   IF Frequency:  950 to 1450 Mhz...

USD 9,930.00
  • Category: All Products, Block Upconverter BUC, Ku-Band Block Upconverter BUC, New Japan Radio
LINE UP




OUTLINE DRAWING





Technical Details
  Transmitter Watt:  25 Watt
  TX Frequency Range:  14.0-14.5 Ghz - Regular KU
  Local Oszillator Frequency (LO):  13.05 Ghz Regular KU TX
  IF Frequency:  950 to 1450 Mhz High Band
  Output Power dBm:  44
  Connector Type:  N-Type
  Power Consumption max.:  DC Power: 185 Watt, AC Power: 215 Watt
  Waveguide TX Flange:  WR-75 - KU Band
  Dimensions mm:  262.2x137.7x114.3 AC/DC Box: 231.9x137.7x88.9

DATASHEETS
