New Japan Radio NJT5324N 40Watt Standard (14-14.5 GHz) Ku-Band Block Upconverter FEATURES Solid State Power Amplifier (SSPA) High Efficiency & Low Distortion P1dB: +46 dBm min. over temperature IM3: -25 dBc max. @ Pout = +43 dBm Power Consumption: 275...

  • Category: All Products, Block Upconverter BUC, Ku-Band Block Upconverter BUC, New Japan Radio

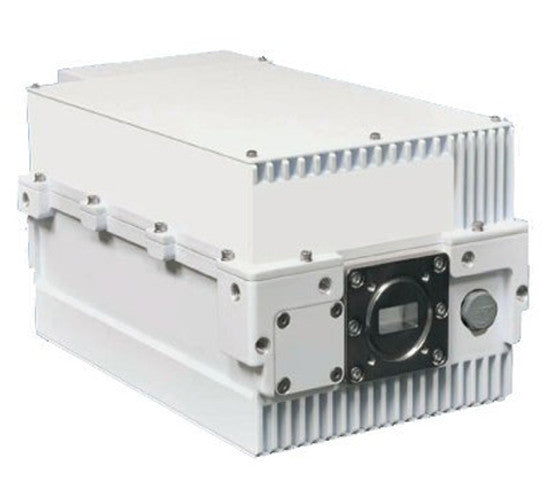

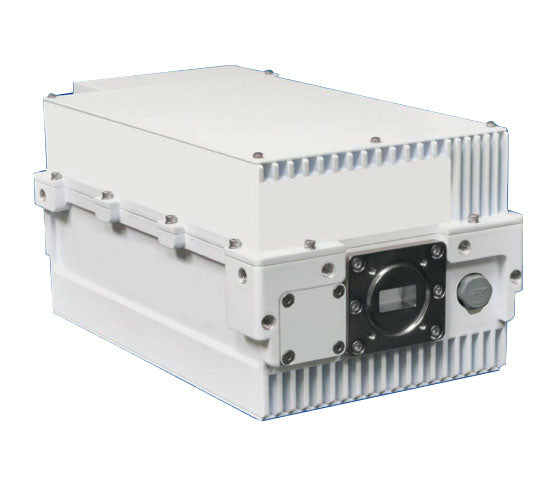

New Japan Radio NJT5324N 40Watt Standard (14-14.5 GHz) Ku-Band Block Upconverter

FEATURES

  • Solid State Power Amplifier (SSPA)
  • High Efficiency & Low Distortion
    • P1dB: +46 dBm min. over temperature
    • IM3: -25 dBc max. @ Pout = +43 dBm
    • Power Consumption: 275 W
  • RF Frequency Band Line-up:
    • Standard Ku-Band: 14.00 to 14.50 GHz
  • AC Power Operating (Option)
  • Analog & Digital (RS-485) M&C
  • Compact Size & Light Weight
    • Dimension: 262.2 x 137.7 x 114.3 mm
    • Weight: 4.3 kg



Interface Overview
NJT5324N

Outline Drawing
NJT5324 Outline Drawing



Item
Specifications
Output Interface
Waveguide, WR75
Input Interface
[IF / Ref.]
 N-type, female connector (50 ohm)

[Power]
(4 pin) connector
[M&C]
19 pin connector
Output Power @ 1dB G.C.P.
+46 dBm min. over temperature
Linear Gain
70 dB Nominal
Power Requirement/Consumption
90 to 264 VAC / 240 W typ., 320 VA typ. @ Pout = +46 dBm
Monitor and Control
[Analog]
Function: Summary Alarm, Tx Control Enable/Disable

[Digital]
Interface: RS-485
Function: RF Power Monitor, Alarm(Summary, Local Unlock, Over Temp.)
TX ON/OFF, Step Attenuator
Weight
7.5 kg [15 lbs]
