NJRC NJT5127FL 6W Ku-Band Block Upconverter Output Frequency: 14.0 - 14.5 GHz LED Version Output Power @P1dB 6W (+37.7 dBm min. over temp.) IF Frequency: 950 - 1450 MHz Input Connector: F-Type Female Output Interface: WR75 Waveguide flange (with Groove)...

  • Category: All Products, Block Upconverter BUC, Ku-Band Block Upconverter BUC, New Japan Radio

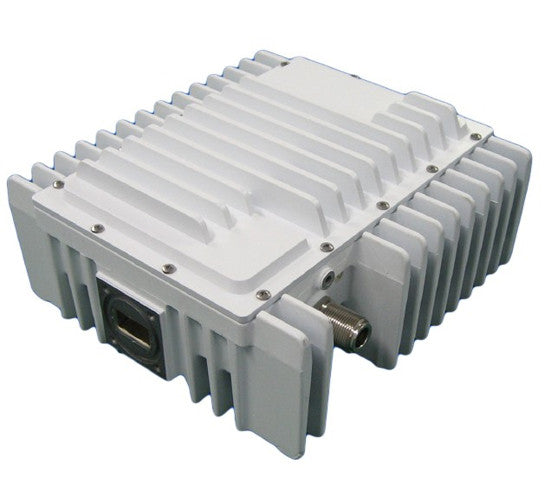

NJRC NJT5127FL 6W Ku-Band Block Upconverter

  • Output Frequency: 14.0 - 14.5 GHz
  • LED Version
  • Output Power @P1dB 6W (+37.7 dBm min. over temp.)
  • IF Frequency: 950 - 1450 MHz
  • Input Connector: F-Type Female
  • Output Interface: WR75 Waveguide flange (with Groove)
  • Power Requirement: +15 to +24 VDC
  • Power Consumption: 63W max
  • Weight: 2.4 kg (5.3 lbs)
  •

    NJT5127F/N 6W BUC Block Diagram
    NJRC NJT5127FL 6W Ku-Band Block Upconverter

    NJT5127F Electrical Performance
    Output Frequency Range 14.0 to 14.5 GHz
    Input Frequency Range 950 to 1,450 MHz
    Maximum IF Input Level (without damage) +13 dBm max.
    Conversion Type Single, fixed L.O.
    L.O. Frequency 13.05 GHz
    Frequency Sense Positive
    Output Power @ 1 dB G.C.P. +37.7 dBm typ. over temp.
    Linear Gain 58 dB min.
    Gain Variation over frequency @ fixed temperature 4 dBp-p max. over 500 MHz
    2 dBp-p max. over 54 MHz
    Gain Stability over temperature @ fixed frequency 4 dBp-p max.
    2 dBp-p typ.
    ACPR 26 dBc min. @+37.7dBm output power
    Compliance with IESS308 / SSOG 308
    Requirement for External Reference
        Frequency
        Input Power
        Phase Noise



    10 MHz (sine-wave)
    -5 to +5 dBm @ Input port
    -125 dBc/Hz max. @ 100 Hz
    -135 dBc/Hz max, @ 1 kHz
    -140 dBc/Hz max. @ 10 kHz
    L.O. Phase Noise
        @100 hZ
        @1 kHz
        @10 kHz
        @100 kHz
        @1 MHz

    -60 dBc/Hz max
    -70 dBc/Hz max
    -80 dBc/Hz max
    -90 dBc/Hz max
    -100 dBc/Hz max
    Spurious
        in band
        in receive band
        Out-of-band

    -50 dBc max. @ 14.0 to 14.5 GHz
    -70 dBm max. @ 10.95 to 12.75 GHz
    -50 dBc max. @Pout=+37.7dBm
    Receive Band Noise Density -156 dBm/Hz max. @10.95 to 12.75 GHz
    Noise Figure 20 dB max.
    Group Delay over any 54MHz 2.5 nS p-p max.
    Input Impedance 75 ohms nom. [Model No.NJT5127F]
    Input V.S.W.R. 2:1 max
    Output V.S.W.R. 2 : 1 max
    Output Load VSWR for Non Damage Infinite : 1
    DC Power Requirement +15 to +24 VDC
    63 W max.
    Mute Shut off the HPA in case of L.O. unlocked
    LED Indicator Green:LO locked
    RED:LO unlocked (or no 10MHz reference signal)
    Mechanical Specifications
    Input Interface F-type, female (75 ohms) [Model No. NJT5127F]
    Output Interface Waveguide, WR-75
    Dimension & Housing 186.4mm (L) x 167mm (W) x 83 mm (H) max.
    [7.33" (L) x 6.57" (W) x 3.27" (H)]
    Weight 2.4 kg max.
    [5.3 lbs]
    Vibration 5G (3 axis, 50 Hz to 2 kHz)
    1 mm p-p (3 axis, 5 to 50 Hz)
    Shock 30 G (3 axis)
    Environmental Specifications
    Temperature Range (ambient) -40 to +55 C (operating)
    -40 to +75 C (storage)
    Humidity 0 to 100%
    Altitude 10,000 ft
    Comply with RoHS (Restricting the use of Hazardous Substances) directives
