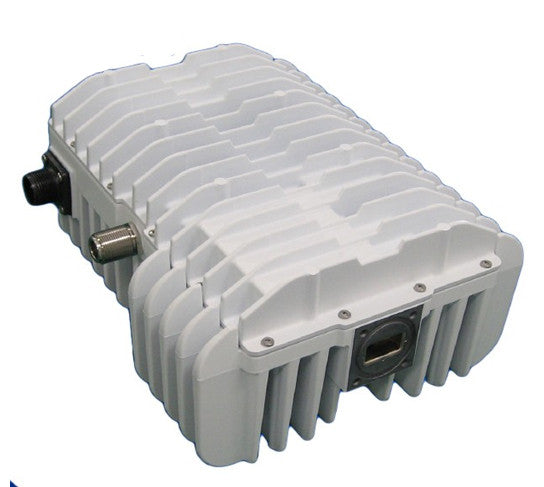

New Japan Radio NJT5118N 8W Standard Ku-Band BUC

Not Specified

8W Ku-Band BUCs

New Japan Radio

8.0 kg8.0 kg8.0 kg

NJRC NJT5118N 8W Ku-Band BUC RF Output Frequency: 14.0 - 14.5 GHz Output Power @P1dB: 8W (+39 dBm min.) IF Frequency: 950 - 1450 MHz Input Connector: N-Type Female Output Interface: WR-75 Waveguide Flange (with Groove) Power Requirement: +24VDC / +48VDC (+18 to +60 VDC) Power Consumption: 79W typical Weight:...
Power Supply *
-
+
USD 1,750.00
USD 1,750.00
Add to wishlist

NJRC NJT5118N 8W Ku-Band BUC

  • RF Output Frequency: 14.0 - 14.5 GHz
  • Output Power @P1dB: 8W (+39 dBm min.)
  • IF Frequency: 950 - 1450 MHz
  • Input Connector: N-Type Female
  • Output Interface: WR-75 Waveguide Flange (with Groove)
  • Power Requirement: +24VDC / +48VDC (+18 to +60 VDC)
  • Power Consumption: 79W typical
  • Weight: 3.2 kg (7.0 lbs)

NJT5118N Block Diagrams
NJT5118F Block Diagrams

General Specifications
Output Interface Waveguide, WR-75 (with Groove)
Input Interface N-type, female (50 ohm) (Model no.: NJT5118N/18NM)
Output Power @ 1 dB G.C.P. +39 dBm min. over temperature
Linear Gain 65 dB nom., 59 dB min.
IM3 -38 dBc typ. @ total power = +39 dBm -3 dB
Requirement for External Reference
    Frequency
    Input Power
    Phase Noise
      @100 Hz
      @1 kHz
      @10 kHz

10 MHz (sine-wave)
-5 to +5 dBm @ Input port

-125 dBc/Hz max.
-135 dBc/Hz max.
-140 dBc/Hz max.
L.O. Phase Noise
    @100 Hz
    @1 kHz
    @10 kHz
    @100 kHz

-60 dBc/Hz max.
-70 dBc/Hz max.
-80 dBc/Hz max.
-90 dBc/Hz max.
Receive Band Noise Density -156 dBm/Hz max. @ 10.95 to 12.75 GHz
Input V.S.W.R 2.0 : 1 max.
Output V.S.W.R. 2.0 : 1 max.
Power Requirement +24 / +48 VDC (+18 to +60 VDC)
Power Consumption 80 W typical
Mute Shut off the HPA in case of LO unlocked
LED Indicator Green: LO locked / RED: LO unlocked (or no 10MHz reference signal)
Port for Voltage Input Same as IF Connector (Model no.: NJT5118N/18F)
MS Connector (Separate Port) (Model no.: NJT5118NM/18FM)
Temperature Range (ambient) -40 to 55 ° C (operating), -40 to +75° C (storage)
Dimensions 219.5 mm (L) x 175 mm (W) x 99 mm (H)
Weight 3.5 kg max.
