New Japan Radio NJT5037N 3W Standard Ku-Band BUC
1W - 3W Ku-Band BUCs
NJRC NJT5037N Ku-Band Block Upconverter (BUC) Frequency Range:14.0-14.5 GHz. Local Frequency: 13.05GHz Output Power 3W linean IF Frequency: 950 - 1.450 MHz. Input Connector: Type N Female Interface Waveguide, WR-75 Output Power @ P1 dB +35 dBm typical, +33 dBm minimum...
- SKU::
- Category: All Products, Block Upconverter BUC, Ku-Band Block Upconverter BUC, New Japan Radio, Year End Sale 2019

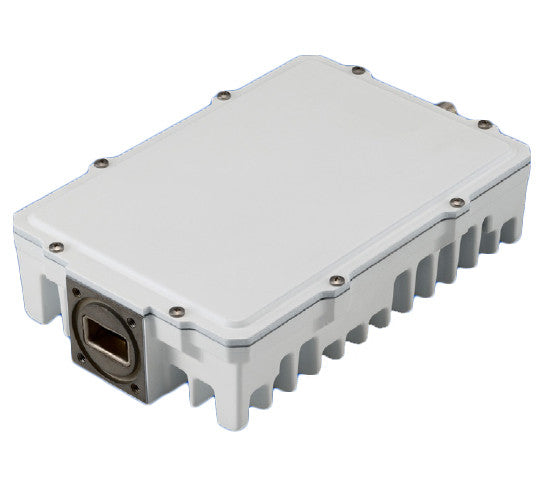

NJRC NJT5037N Ku-Band Block Upconverter (BUC)
- Frequency Range:14.0-14.5 GHz.
- Local Frequency: 13.05GHz
- Output Power 3W linean
- IF Frequency: 950 - 1.450 MHz.
- Input Connector: Type N Female
Interface |
Waveguide, WR-75 |
Output Power @ P1 dB |
+35 dBm typical, +33 dBm minimum over temperature |
Conversion Gain |
50 dB nom. |
Phase Noise (SSB) |
-60 dBc/Hz max. @ 100 Hz -70 dBc/Hz max. @ 1 kHz -80 dBc/Hz max. @ 10 kHz -90 dBc/Hz max. @ 100 kHz |
Required External Reference Signal |
Frequency : 10 MHz Input Power : -5 to +5 dBm Phase Noise : -125 dBc/Hz max. @ 100 Hz -135 dBc/Hz max. @ 1 kHz -140 dBc/Hz max. @ 10 kHz |
Input Interface |
N-type, female (50 ohm) [Model No. NJT5037N] F-type, female (75 ohm) [Model No. NJT5037F] |
Input / Output V.S.W.R. |
2.0:1 max. @ Input 2.0:1 max. @ Output |
Mute |
Shut off the HPA in case of LO unlocked |
Power Requirement |
+15 to +30 V dc |
Power Consumption |
30 W max. |
Operating Temperature |
-40 to +55 degrees C |
Storage Temperature |
-40 to +75 degrees C |
Size & Weight |
[Model No. NJT5037N] 186.7 mm (L) x 119 mm (W) x 44.5 mm (H) [7.35" (L) x 4.69" (W) x 1.75" (H)] 1.2 kg max. [2.6 lbs] |
