New Japan Radio NJR2843S Universal Ku-band 2LO PLL LNB

New Japan Radio NJR2843S Universal Ku-band 2LO PLL LNB

Ku-Band Switchable LNBs

NJRC NJR2843S Universal Ku-Band 2LO PLL LNB Switchable Local Frequency: 9.75 / 10.6 GHz, via Mechanical Switch Full Ku-Band coverage: 10.70 - 11.70 GHz / 11.70 - 12.75 GHz Internal Reference (Local Stability ±29.5 kHz / ±31.8 kHz) IF connector:...

  • Category: All Products, Ku-Band LNBs, Low Noise Block LNB, New Japan Radio

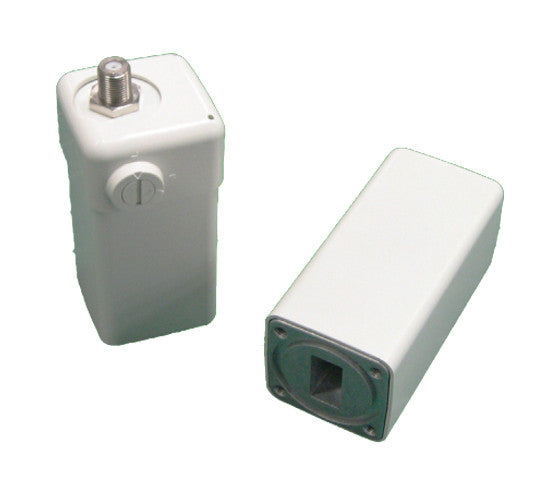

NJRC NJR2843S Universal Ku-Band 2LO PLL LNB

  • Switchable Local Frequency: 9.75 / 10.6 GHz, via Mechanical Switch
  • Full Ku-Band coverage: 10.70 - 11.70 GHz / 11.70 - 12.75 GHz
  • Internal Reference (Local Stability ±29.5 kHz / ±31.8 kHz)
  • IF connector: F-Type Female

NJR284x Outline Drawing

NJR2841S

Specifications
Input Interface WR-75 with groove
Output Interface F-type, female (75 ohm)
Noise Figure 0.8 dB typical
Linear Gain (at 25C) 62 dB mx.
L.O. Phase Noise -50 dBc/Hz @ 100 Hz
-70 dBc/Hz @ 1 kHz
-75 dBc/Hz typ. @ 10 kHz
-85 dBc/Hz typ. @ 100 kHz
L.O. Leakage Level -40 dBm max. at the IF output connector
-60 dBm max. at the RF input flange
Spurious a)-120 dBm max.
At input, fixed frequency spurious, unrelated to test CW signal. (Measured at specified IF band)
b)-40 dBc max.
With test CW signal -10 dBm IF output (measured at specified IF band)
Input VSWR 2.5:1 typ.
Output VSWR 2.3:1 max.
Power Requirement +24 VDC (+10 to +24 VDC)
Current Drain 200 mA max
Temperature Range (ambient)
    Operating
    Storage
-40 to +60° C
-40 to +80° C
Size 83.4 mm (L) x 42 mm (W) x 42 mm (H)
(3.24" (L) x 1.57" (W) x 1.57" (H))
Weight 240 g [0.52 lbs]
