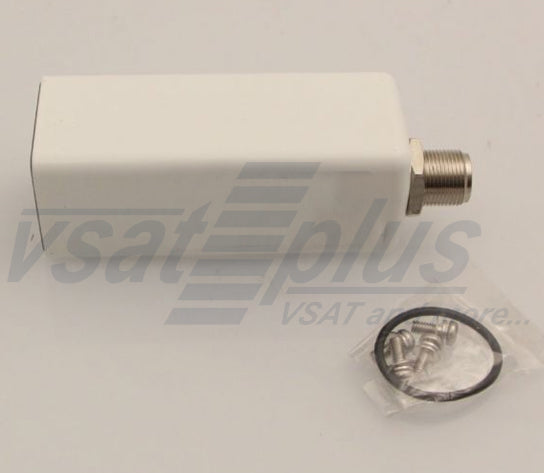

NJRC NJR2842S Ku-Band 2LO PLL LNB

The NJRC NJR2842S Universal Ku-Band 2LO PLL LNB - Int. Ref. (±3 ppm) features:

  • Switchable Local
  • Local Frequency: 9.75 / 10.6 GHz
  • Full Ku-Band Coverage
  • RF Frequency: 10.7 to 12.75 GHz (10.7 to 11.7 GHz / 11.7 to 12.75 GHz)
  • Internal Reference type
  • * S-type: +/- 3 ppm
  • LO Freqency Selected by 22kHz Tone On/Off
  • Small Size & Light Weight
  • RoHS Compliance
  • Type F connector

NJR284x Outline Drawing

NJR2841S

Specifications
Input Interface WR-75 with Groove
Output Interface F-type, Female (75 ohm)
Noise Figure 0.8 dB typical
Linear Gain (at 25C) 62 dB mx.
L.O. Phase Noise -50 dBc/Hz @ 100 Hz
-70 dBc/Hz @ 1 kHz
-75 dBc/Hz typ. @ 10 kHz
-85 dBc/Hz typ. @ 100 kHz
L.O. Leakage Level -40 dBm max. at the IF output connector
-60 dBm max. at the RF input flange
Spurious a)-120 dBm max.
At input, fixed frequency spurious, unrelated to test CW signal. (Measured at specified IF band)
b)-40 dBc max.
With test CW signal -10 dBm IF output (measured at specified IF band)
Input VSWR 2.5:1 typ.
Output VSWR 2.3:1 max.
Power Requirement +24 VDC (+10 to +24 VDC)
Current Drain 200 mA max
Temperature Range (ambient)
    Operating
    Storage
-40 to +60° C
-40 to +80° C
Size 83.4 mm (L) x 42 mm (W) x 42 mm (H)
(3.28" (L) x 1.65" (W) x 1.65" (H))
Weight 210 g [0.46 lbs]
