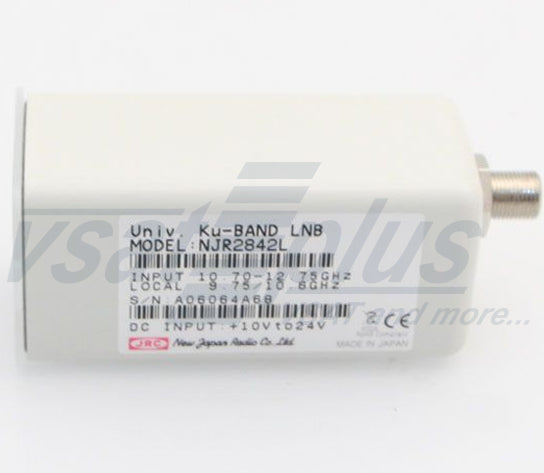

NJRC NJR2842L Universal Ku-Band 2 L.O. PLL LNB

  • Switchable Local Frequency: 9.75 / 10.6 GHz, via 22 kHz tone (On/Off)
  • Full Ku-Band coverage: 10.70 - 11.70 GHz / 11.70 - 12.75 GHz
  • IF Frequencies: 950 to 1950 MHz / 1100 to 2150 MHz
  • Internal Reference (Local Stability ±487.50 kHz / ±530 kHz)
  • IF connector: F-Type Female

NJR284x Outline Drawing
New Japan Radio NJR2841L/42L/43L Universal Ku-Band 2LO PLL LNB - Int. Ref.

NJR2842L Specifications
Input Interface WR-75 with groove
Output Interface F-type, female (75 ohm)
Noise Figure 0.8 dB typical, 1.0 dB max.
Linear Gain (at 25C) 48 dB min, 62 dB max.
L.O. Phase Noise -50 dBc/Hz @ 100 Hz
-70 dBc/Hz @ 1 kHz
-75 dBc/Hz typ. @ 10 kHz
-85 dBc/Hz typ. @ 100 kHz
L.O. Leakage Level -40 dBm max. at the IF output connector
-60 dBm max. at the RF input flange
Spurious a)-120 dBm max.
At input, fixed frequency spurious, unrelated to test CW signal. (Measured at specified IF band)
b)-40 dBc max.
With test CW signal -10 dBm IF output (measured at specified IF band)
Input VSWR 2.5:1 typ.
Output VSWR 2.3:1 max.
Power Requirement +24 VDC (+10 to +24 VDC)
Current Drain 200 mA max
Temperature Range (ambient)
    Operating
    Storage
-40 to +60° C
-40 to +80° C
Size 83.4 mm (L) x 42 mm (W) x 42 mm (H)
(3.24" (L) x 1.57" (W) x 1.57" (H))
Weight 210 g [0.46 lbs]
