New Japan Radio NJR2842H Universal Ku-band 2LO PLL LNB

New Japan Radio NJR2842H Universal Ku-band 2LO PLL LNB

Request for a quote

SKU: NJR2842H

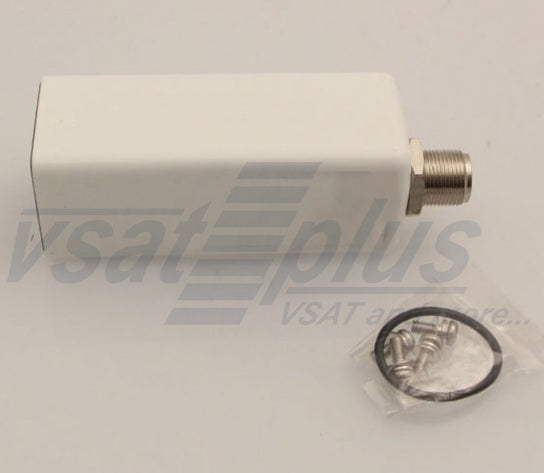

NJRC NJR2842H Universal Ku-Band 2LO Switchable PLL LNB



  • Input Frequencies: 10.70 - 11.70 GHz / 11.70 - 12.75 GHz
  • Local Stability: ±10 ppm
  • Noise Figure: 0.8 dB
  • IF Connector: F-Type Female
  • NJR284xH Outline Drawing

    Specifications
    Input Interface WR-75 with Groove
    Output Interface F-type, female (75 ohm)
    Noise Figure 0.8 dB typical
    Linear Gain (at 25C) 62 dB mx.
    L.O. Phase Noise -50 dBc/Hz @ 100 Hz
    -70 dBc/Hz @ 1 kHz
    -75 dBc/Hz typ. @ 10 kHz
    -85 dBc/Hz typ. @ 100 kHz
    L.O. Leakage Level -40 dBm max. at the IF output connector
    -60 dBm max. at the RF input flange
    Spurious a)-120 dBm max.
    At input, fixed frequency spurious, unrelated to test CW signal. (Measured at specified IF band)
    b)-40 dBc max.
    With test CW signal -10 dBm IF output (measured at specified IF band)
    Input VSWR 2.5:1 typ.
    Output VSWR 2.3:1 max.
    Power Requirement +24 VDC (+10 to +24 VDC)
    Current Drain 200 mA max
    Temperature Range (ambient)
        Operating
        Storage
    -40 to +60° C
    -40 to +80° C
    Size 83.4 mm (L) x 42 mm (W) x 42 mm (H)
    (3.24" (L) x 1.57" (W) x 1.57" (H))
    Weight 210 g [0.46 lbs]
