Ku-Band Switchable LNBs
New Japan Radio

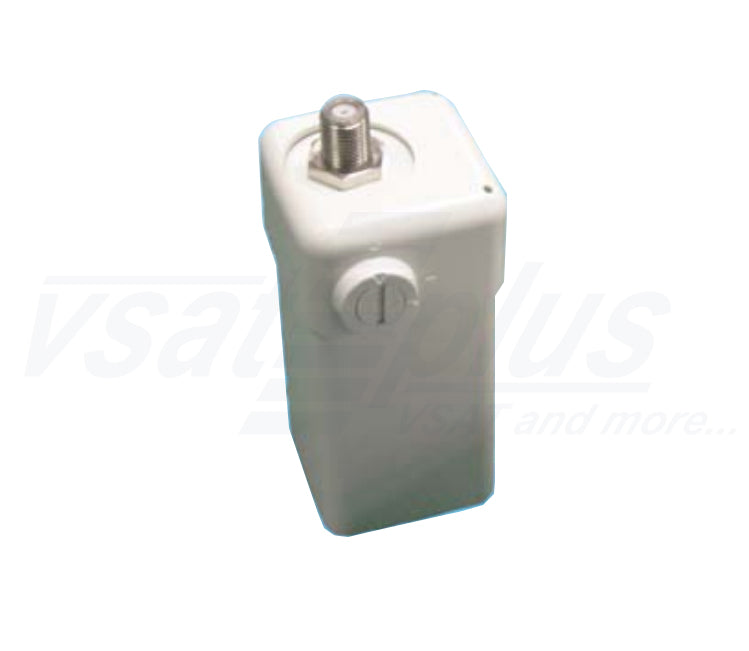

NJRC NJR2841S Ku-Band 2LO PLL LNB
- Local Frequency: 9.75 / 10.6 GHz
Full Ku-Band Coverage
- RF Frequency: 10.70 - 12.75 GHz
(Low Band) 10.70 - 11.70 GHz
(High Band) 11.70 - 12.75 GHz
Local Switching Line-up
Local Frequency Selected by
- Mechanical Switch: NJR2841 series
- 22 kHz Tone On/Off: NJR2842 series
- Input Voltage (High/Low): NJR2843 series
Small Size & Light Weight
- Weight: 240 g (N-type Connector Model)
- Weight: 210 g (F-type Connector Model)
NJR2841S Outline Drawing
|Input Interface||WR-75 with Groove|
|Output Interface||F-type, female (75 ohm)|
|Noise Figure||0.8 dB typical|
|Linear Gain (at 25C)||62 dB mx.|
|L.O. Phase Noise||-50 dBc/Hz @ 100 Hz
-70 dBc/Hz @ 1 kHz
-75 dBc/Hz typ. @ 10 kHz
-85 dBc/Hz typ. @ 100 kHz
|L.O. Leakage Level||-40 dBm max. at the IF output connector
-60 dBm max. at the RF input flange
|Spurious||a)-120 dBm max.
At input, fixed frequency spurious, unrelated to test CW signal. (Measured at specified IF band)
b)-40 dBc max.
With test CW signal -10 dBm IF output (measured at specified IF band)
|Input VSWR||2.5:1 typ.|
|Output VSWR||2.3:1 max.|
|Power Requirement||+24 VDC (+10 to +24 VDC)|
|Current Drain||200 mA max|
|Temperature Range (ambient)
|-40 to +60° C
-40 to +80° C
|Size||83.4 mm (L) x 42 mm (W) x 42 mm (H)
(3.28" (L) x 1.65" (W) x 1.65" (H))
|Weight||210 g [0.46 lbs]|
