New Japan Radio NJR2839HN Series PLL Ku-Band LNB

New Japan Radio NJR2839HN Series PLL Ku-Band LNB

Request for a quote

SKU: NJR2839HN

NJRC NJR2839HN Ku-Band PLL LNB

  • 11.20 to 11.70 GHz Input Frequency
  • 0.8 dB Noise Figure
  • ±100 kHz LO Stability
  • Type N Connector
<
Specifications
RF Frequency 11.20 to 11.70 GHz
Local Frequency 10.25 GHz
Local Stability
(-40 to +60°C)
+/- 10 ppm
IF Frequency 950 to 1,450 MHz

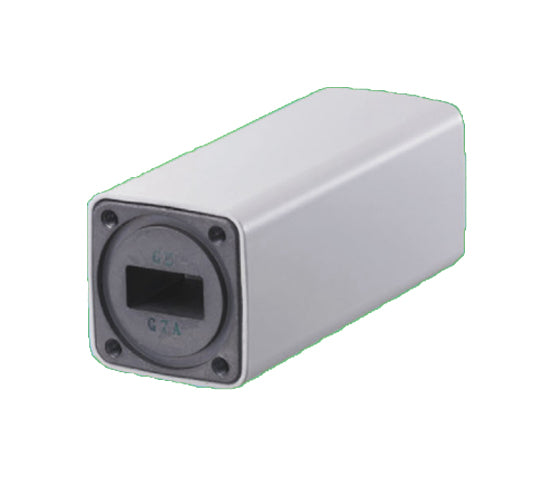

Input Interface WR-75
Output Interface F-type, female (75 ohm)
N-type, female (50 ohm)
Noise Figure 0.8 dB
Conversion Gain (at 25C) 60 dB min.
Conversion Gain Variation (at 25C) 2 dB p-p max. In any 50 MHz segment over the frequency band
Phase Noise (SSB) -70 dBc/Hz @ 100 Hz
-80 dBc/Hz @ 1 kHz
Spurious -140 dBm max.
At input, fixed frequency spurious, unrelated to test CW signal.
-50 dBc max.
With test CW signal -10 dBm IF output (measured specified IF band)
Power Requirement +15 to +24 V dc
Operating Current 250 mA
Operating Temperature -40 to +60° C
Storage Temperature -40 to +80° C
Size 113.5 mm (L) x 40 mm (W) x 40 mm (H)
(4.47" (L) x 1.57" (W) x 1.57" (H))
Weight 260 g max. [0.57 lbs]
