New Japan Radio

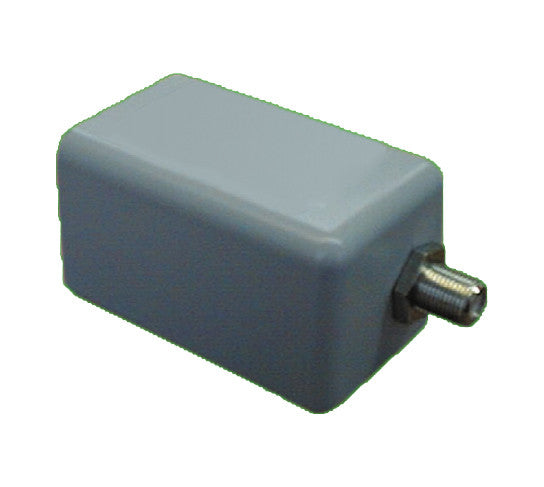

New Japan Radio NJR2184H DRO Ku-Band LNB

New Japan Radio NJR2184H DRO Ku-Band LNB

Request for a quote

SKU: NJR2184HA

New Japan Radio NJR214HA & NJR214H Ku-Band (10.95 - 11.70 GHz) DRO LNB

High-quality DRO LNBs from New Japan Radio have set the standard in the industry for years.

Specifications
RF Frequency 10.95 to 11.70 GHz
Local Frequency 11.30 GHz
IF Frequency 950 to 1,450 MHz
Input Interface WR-75
Output Interface F-type, female (75 ohm)
Noise Figure 0.8 dB
Conversion Gain (at 25C) 55 dB
Conversion Gain Variation (at 25C) 2 dB p-p max. In any 50 MHz segment over the frequency band
Phase Noise (SSB) -65 dBc/Hz @ 1 kHz
-85 dBc/Hz @ 10 kHz
-105 dBc/Hz @100 kHz
Power Requirement +12 to +24 V dc
Operating Current 110 mA
Operating Temperature -40 to +60 degrees C
Storage Temperature -40 to +80° C
Size 75.2 mm (L) x 40 mm (W) x 40 mm (H)
(2.96" (L) x 1.57" (W) x 1.57" (H))
Weight 150 g max. (0.33 lbs)
