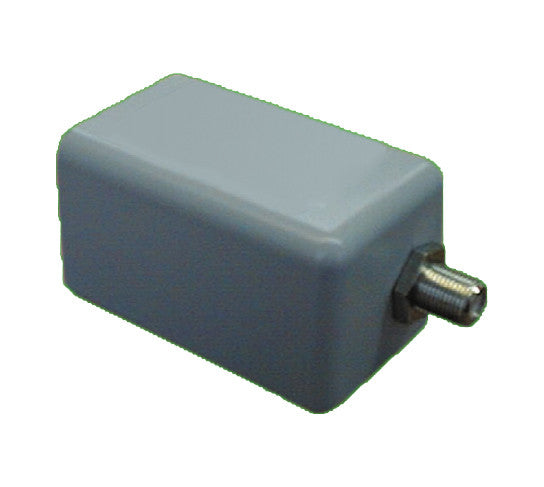

NRJC-NJR2144HT Ku-Band DRO LNB (11.7 To 12.2 GHz) +/- 500 Khz, .8 DB

For years NJRC has remained the industry standard in high quality - low cost VSAT LNBs.

Technical Specifications
RF Frequency 11.70 to 12.20 GHz
Local Frequency 10.75 GHz
IF Frequency 950 to 1,450 MHz
Input Interface WR-75
Output Interface F-type, female (75 ohm)
Noise Figure 0.8 dB
Conversion Gain (at 25C) 55 dB
Conversion Gain Variation (at 25C) 2 dB p-p max. In any 50 MHz segment over the frequency band
Phase Noise (SSB) -65 dBc/Hz @ 1 kHz
-85 dBc/Hz @ 10 kHz
-105 dBc/Hz @100 kHz
Power Requirement +12 to +24 V dc
Operating Current 110 mA
Operating Temperature -40 to +60 degrees C
Storage Temperature -40 to +80 degrees C
Size 75.2 mm (L) x 40 mm (W) x 40 mm (H)
(2.96" (L) x 1.57" (W) x 1.57" (H))
Weight 150 g max. (0.33 lbs)
