Mini600 4.3 inch LCD HF VHF UHF Antenna Analyzer 0.1-600MHz

Mini600 4.3 inch LCD HF VHF UHF Antenna Analyzer 0.1-600MHz

Request for a quote

SKU: MINI600

Details Pictures
MENU Options
MINI600
Port Specification
MINI600 Port Specification
Specifications:

  • Frequency Range: 0.1-600MHz
  • HF/VHF/UHF contiunous coverage
  • In/Out Impedance: 50ohm
  • Measurement Parameters: SWR, R, +Jx, -Jx, |Z|, Returnloss
  • Measurement Mode: Single point measurement, Scanning (Frequency Sweep), and TDR Mode
  • SWR MeasureMent Range: 1.0-1999(Single Point Mode), 1.0-20.0 (Scan Mode)
  • Display Modes: Numerical display, curve display, simith chart
  •  Connector Type: UHF N-type connector

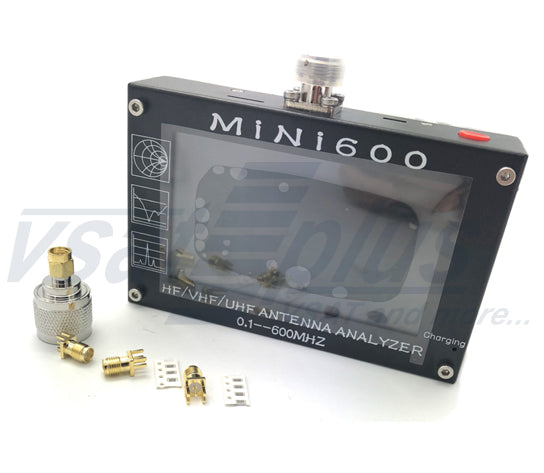

  •  SMA OPEN-SHORT-LOAD Calibration Kit x 1

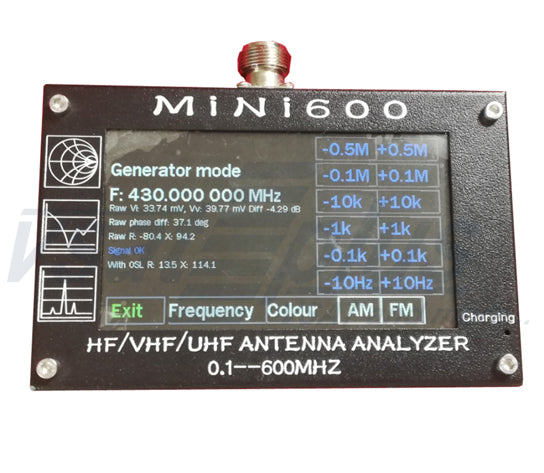

  •  LCD size: 480x272 4.3" TFT LCD display
  •  Touch Screen Type: Capacitive
  •  All capacitive touchscreen on the display – no buttons are needed
  •  Power Source: USB or Internal  Li-ion
  •  Built-in Li-ion charging circuitry and DC-DC booster
  •  Maximum charging current: 5V/1.5A
  •  External Storage Method: TF card

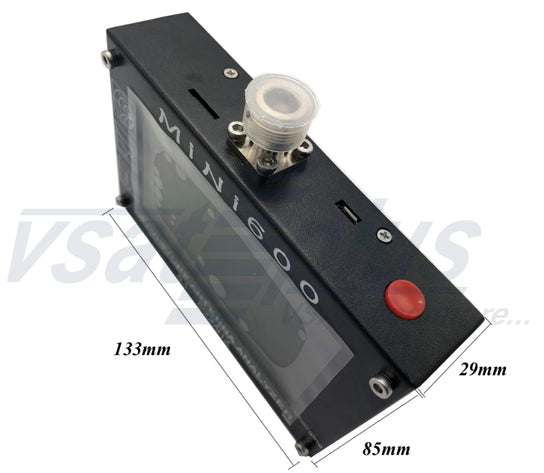

  •  Size: 133·85·29 mm (Does not contain prominent ports)
  •  Weight: 550g
  •  Warning: if the product has parameter changes, the actual test will prevail.
  • Manual could send to the mailbox

Package Included:

1 x Mini600 HF VHF UHF Antenna Analyzer 0.1-600MHz
