MFC 17190 Multi-Purpose C-Band Transmit Reject Filter

MFC 17190 Multi-Purpose C-Band Transmit Reject Filter

RF Filter

This versatile filter not only rejects the C-band transmit band (5.825-6.725 GHz), but also rejects transmissions from other potential sources of interference, that standard TRFs do not Ideal for use at “high-density” receive sites, the model 17190 TRF provides excellent...

  • Category: Accessories, All Products, Featured products, RF Filter

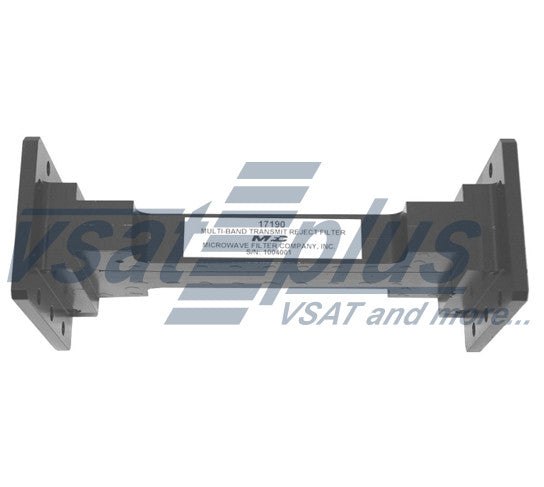

This versatile filter not only rejects the C-band transmit band (5.825-6.725 GHz), but also rejects transmissions from other potential sources of interference, that standard TRFs do not

Ideal for use at “high-density” receive sites, the model 17190 TRF provides excellent rejection of these other bands :

Maritime Radionavigation  .... 3 - 3.1 GHz

Radar ........................................ 3.1 - 3.45 GHz

Wireless Services

(Point-Multipoint)  .................. 4.55 - 4.9 GHz

X-band  ..................................... 7.25 - 8.4 GHz

Maritime & Aeronautical

Radionavigation ...................... 9 - 11 GHz

  • Easy bolt-on installation and no power supply required
  • Other flange configurations are available   upon request

Specifications:

Passband:

3.6 - 4.2 GHz

Passband Loss:

0.25 dB Typ

Passband VSWR:

1.22:1 Max 1.15:1 Typ

Rejection:

80 dB Typ from DC to 3.185 GHz

70 dB Typ @ 3.3 GHz

45 dB Typ @ 3.4 GHz

20 dB Min @ 3.45 GHz

60 dB Min from 4.55 - 4.9 GHz

90 dB Min from 4.9 - 14 GHz

Flanges:

CPR229G

Weight:

1.5 lbs (0.68 Kg)

Dimensions:

8.02" x  3.88" x  2.75"

(204mm x 98mm x 70mm)

Finish:

Flat Black Lacquer
