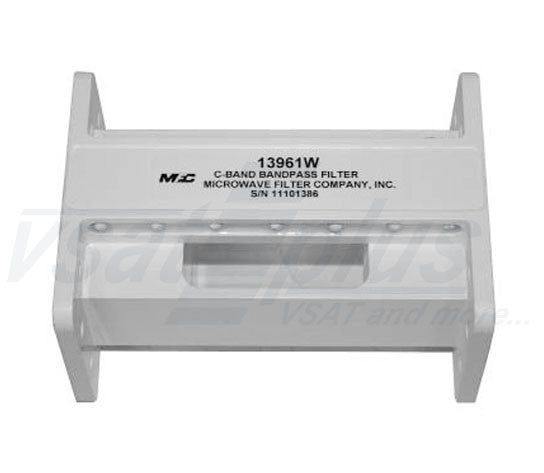

MFC 13961W C-Band Interference Elimination Filter

Ideal for eliminating interference from WiMAX, RADAR and virtually any other potential source of out-of-band interference. The model 13961W combines innovative design techniques with the solid performance of its renowned predecessor (model 13961).

Utilizing a durable and true one piece body/flange construction, the 13961W is shipped with hardware & gasketing and is ready to install between the feedhorn and the LNB/LNA.


Marker               1 3.5000000 GHz -80.580 dB
              2 3.5500000 GHz -59.765 dB
              3 3.6500000 GHz -45.593 dB
              4 3.7000000 GHz -0.7973 dB
              5 3.9500000 GHz -0.4502 dB
              6 4.2000000 GHz -0.8706 dB
              7 4.2500000 GHz -45.423 dB
              8 4.3500000 GHz -57.927 dB
              9 4.4000000 GHz -70.079 dB
  • Tuned to Eliminate WiMax and Radar, as well as acting as a Transmit Reject Filter
  • Passband: 3.7 - 4.2 GHz
  • Passband Loss: 0.5 dB Approx. @ center band
  • Rejection : 45 dB Min @ 3.65 GHz / 4.25 GHz, 60 dB Typ @ 3.55 GHz / 4.35 GHz, 70 dB Typ @ 3.50 GHz / 4.40 GHz
  • Transmit Band Rejection: > 70 dB Typ from 5.8 - 6.725 GHz
  • Flanges: CPR229G (Input), CPR229F (Output)
  • Finish: White Enamel
  • Hardware & gasketing and is ready to install between the feedhorn and the LNB/LNA

    No other manufacturer’s C-band interference elimination filter offers all of these features:

Length:

5.49” (13.9 cm)

Weight:

1.125 lb. (0.51 kg)

Passband VSWR:

1.44:1 Typ; 1.5:1 Max.

Group Delay Variation:

7 nS Max

Rejection:



45 dB Min @ 3.65 GHz / 4.25 GHz

60 dB Typ @ 3.55 GHz / 4.35 GHz

70 dB Typ @ 3.50 GHz / 4.40 GHz


Other Specifications: (
International bands are also available.)

Passband:                            3.7 - 4.2 GHz
Passband Loss:                   0.5 dB Approx. @ center band
                                             0.5 dB Approx. roll off @ band edges
Transmit Band Rejection:      > 70 dB Typ from 5.8-6.725 GHz
Flanges:                               CPR229G (Input)
                                             CPR229F (Output)
