LS 2150A Series Active L-Band Splitters |‌ Quintech Electronics

LS 2150A Series Active L-Band Splitters |‌ Quintech Electronics

Series
Request for a quote

The LS2150A Series from Quintech Electronics is a premium line of Active (Amplified) L-Band Splitters, designed to deliver zero-loss RF distribution across satellite, RF monitoring, VSAT, and broadcast networks. Supporting a wide frequency range from 950 to 2150 MHz, the LS2150A splitters allow clean and reliable RF signal splitting to multiple outputs with outstanding isolation and performance.

Available in configurations from 4-way to 64-way, these rack-mountable units are ideal for teleports, headends, data centers, or satellite gateways that require professional-grade RF signal routing with LNB power capabilities and zero insertion loss.

Key Features

  • Active, zero-loss RF splitting

  • Supports 950–2150 MHz L-band range

  • Rack-mountable designs from 1RU to 3RU

  • Powers LNBs with 18VDC on input

  • High isolation (18 dB typical)

  • Microstrip design for consistent performance

  • Multiple connector options: F-Type or BNC (50Ω or 75Ω)

  • Greatly improves cable management

Available Models – LS2150A Series Table

Model Configuration Frequency Range Insertion Loss Isolation Size Power LNB Power Weight (Net)
LS04 2150A 1x4 950–2150 MHz 0 ± 2 dB 18 dB 1RU, 6.5” D 3 W 18 VDC 2.0 lbs
LS08 2150A 1x8 950–2150 MHz 0 ± 2 dB 18 dB 1RU, 6.5” D 3 W 18 VDC 2.7 lbs

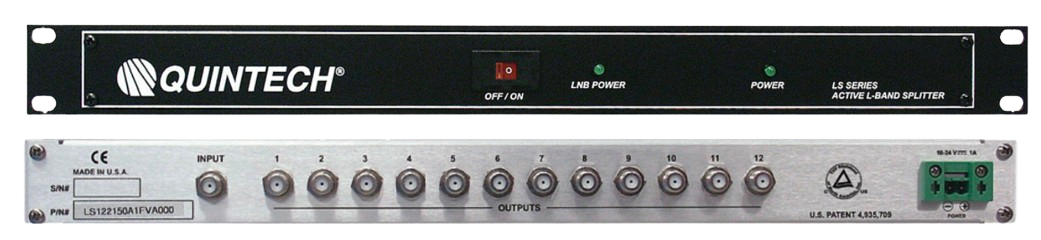

LS12 2150A 1x12 950–2150 MHz 0 ± 2 dB 18 dB 1RU, 6.5” D 3 W 18 VDC 2.5 lbs
LS16 2150A 1x16 950–2150 MHz 0 ± 2 dB 18 dB 1RU, 6.5” D 3 W 18 VDC 2.5 lbs
LS24 2150A 1x24 950–2150 MHz 0 ± 2 dB 18 dB 2RU, 14” D 5 W 18 VDC 7.0 lbs

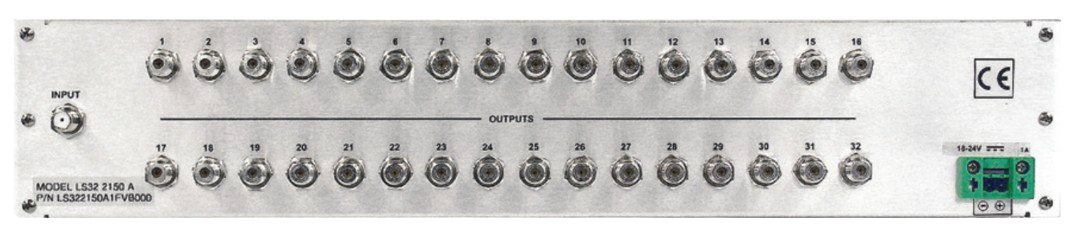

LS32 2150A 1x32 950–2150 MHz 0 ± 2 dB 18 dB 2RU, 14” D 5 W 18 VDC 6.2 lbs
LS48 2150A 1x48 950–2150 MHz 0 ± 2 dB 18 dB 3RU, 20” D 6 W 18 VDC 9.4 lbs

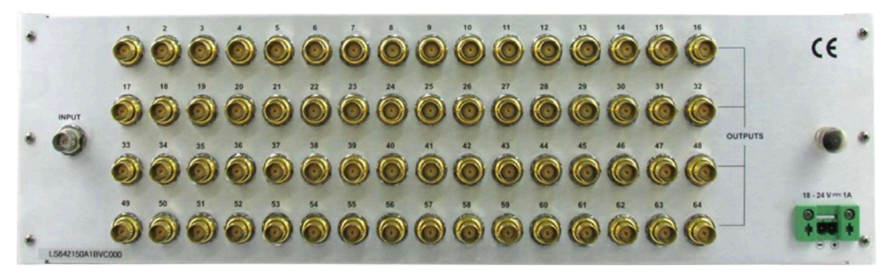

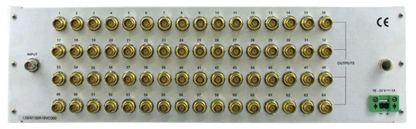

LS64 2150A 1x64 950–2150 MHz 0 ± 2 dB 18 dB 3RU, 20” D 8 W 18 VDC 9.2 lbs

Order from VSATPlus

As an official distributor, VSATPlus supplies the full range of Quintech LS2150A Active Splitters.

✅ Get expert advice, fast delivery, and support for integration into your SATCOM or RF network.

📞 Contact VSATPlus today to request your quote and upgrade your RF infrastructure with professional-grade splitters.

 LS 2150A Series Active L-Band Splitters | Quintech Data Sheet

View full details
