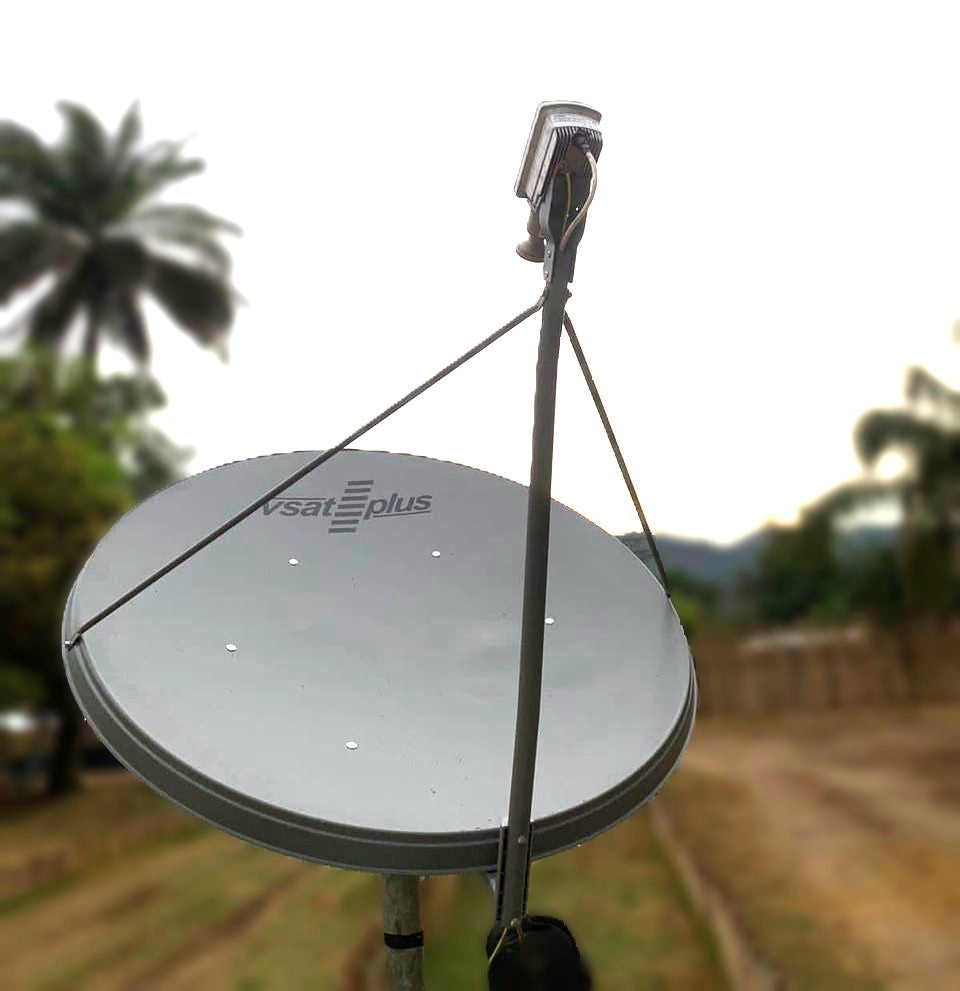

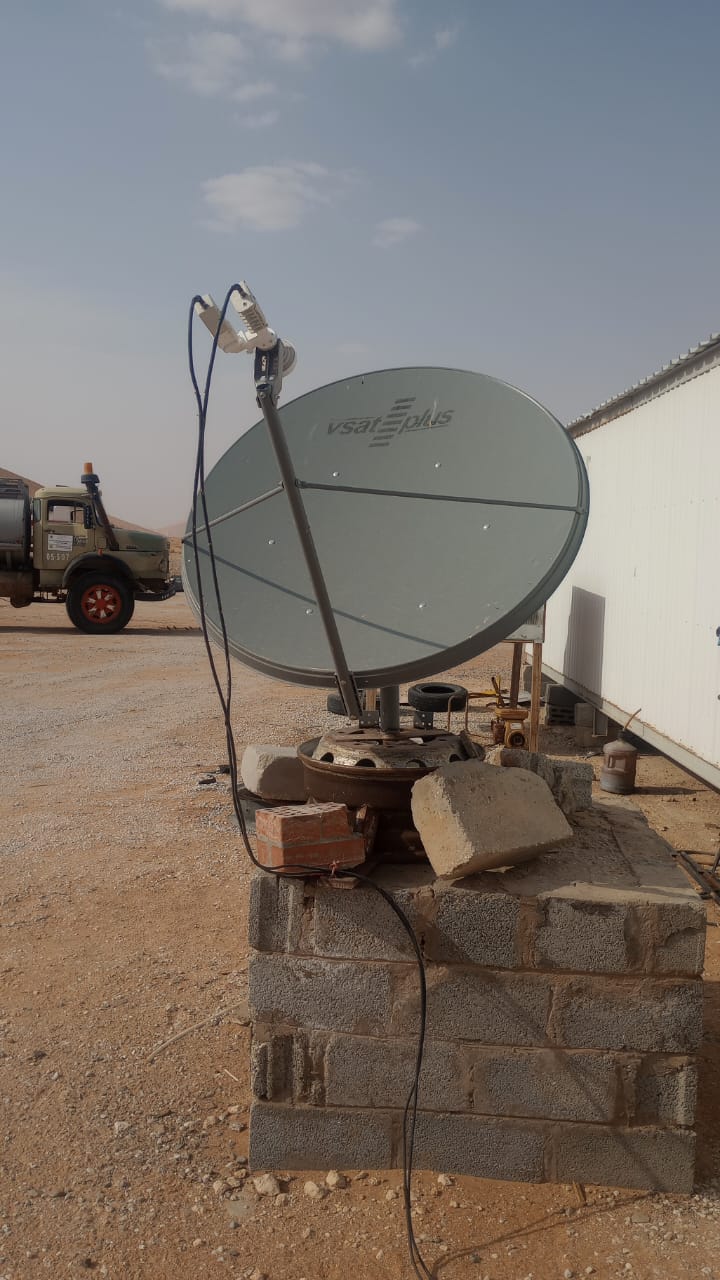

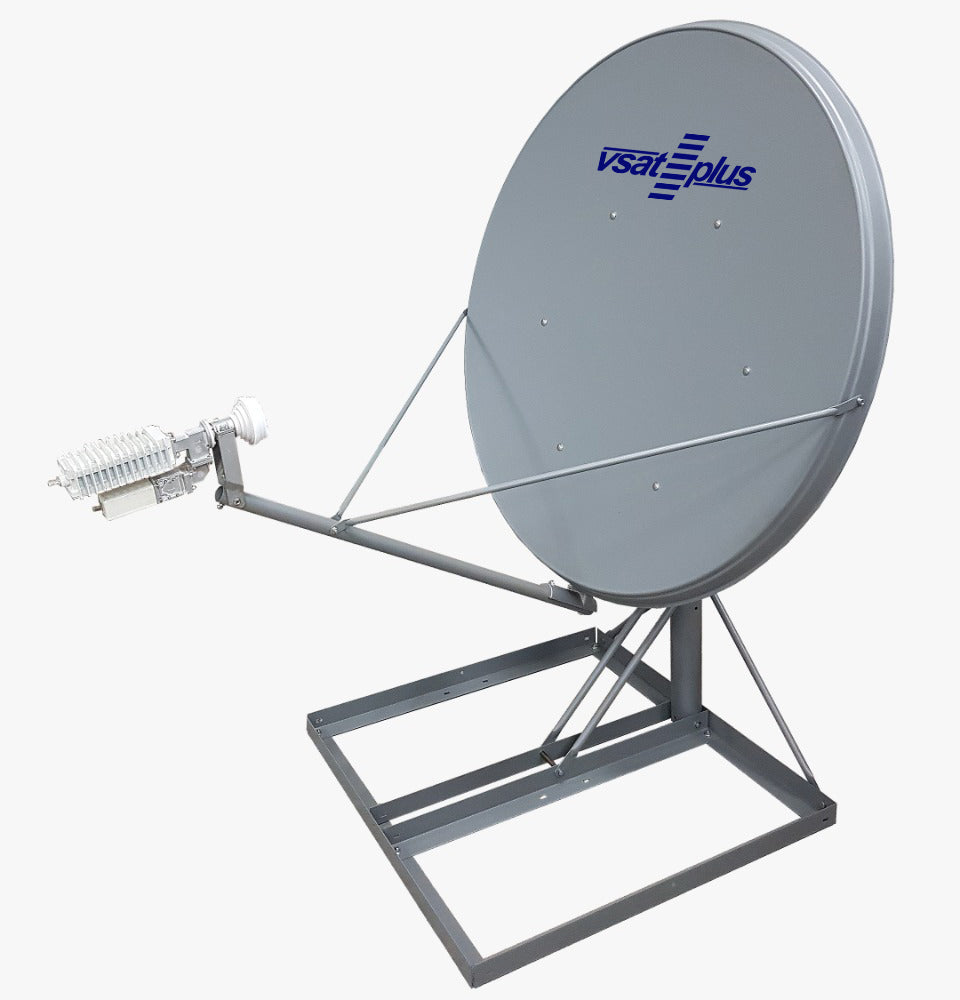

Jonsa VSATplus 1.2M Ku TxRx/KA/Rx-only Antenna (2 Years Warranty)
Jonsa VSATplus 1.2M Ku TxRx/KA/Rx-only Antenna (2 Years Warranty)
Sale
Sold out
SKU: JONSA-E120
Couldn't load pickup availability
JONSA TECHNOLOGIES CO., LTD. provides VSAT (Very Small Aperture Terminal) at Ku band and Ka band frequency, to meet customer's demands in satisfactory.
FEATURES
- The antenna product can correspond with branded electronic device in the market (ex. BUC - intergraded LNB - Transceiver .. etc.)
- Antenna performance may vary by using different electronic devices or feed horn.
| ltem No. | VSATE120 | |
| Reflector Dish | ||
| Type | Elliptical | |
| Offset Angle | 18.29° | |
| Physical Size Short Axis | 118.4cm | |
| Physical Size Long Axis | 122.1cm | |
| Aperture Diameter | 117.2cm | |
| F/D Ratio | 0.75 | |
| Focus Length | 866.5mm | |
| Antenna Specification | ||
| Operation Frequency | TX | RX |
| Efficiency | 13.75 ~ 14.5 GHz | 10.7 ~ 12.75 GHz |
| Ku-Band Gain | 70% Min. | 70% Min. |
| 3dB Beamwidth | 43.7dBi @ 14GHZ | 42.0 dBi @12.75 GHz |
| Cross Polarization on Axis | 1.2° Max. | 1.4° Max. |
| within 1 dB Beamwidth | 30dB | 25 dB |
| Feed Interface | WR75 | WR75 |
| Mounting | ||
| Mounting Type | Pole Mount | |
| Adjustment Type | AZ /EL Adjustable | |
| Material | Galvanized Steel | |
| Finish | Polyester Coating | |
| Color | Light Grey / Dank Grey | |
| Elewation Range | 5° - 90" | |
| Azinuth Range | 0° ~ 360° | |
| Pole Diameter Acceptable | ¢76 mm | |
| Environment | ||
| Operational Winds | 55 mph | |
| Survival Winds | 100 mph | |
| Ambient Temperature | -40°C -+60°C | |
| Relative Humidity | 0 ~100% | |
