Iridium Beam DriveDOCK Extreme (EXTRMDD)
Iridium Beam DriveDOCK Extreme (EXTRMDD)
Couldn't load pickup availability

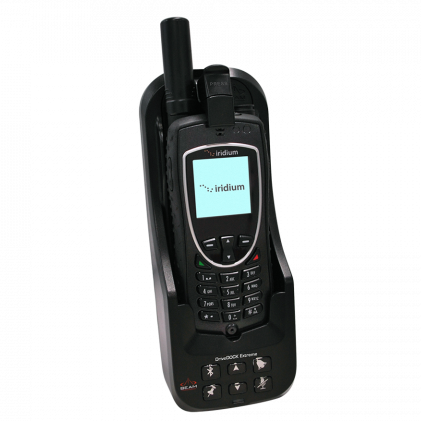

The Beam DriveDOCK Extreme EXTRMDD is a professional hands-free docking solution designed for the Iridium Extreme 9575 satellite phone. Manufactured by Beam Communications, it provides a convenient and reliable way to use satellite communications in vehicles, boats, and other mobile environments. With integrated Bluetooth connectivity, built-in echo cancellation, full-duplex audio technology, USB data connectivity, and handset charging, the DriveDOCK Extreme delivers a versatile communication solution for demanding professional applications.

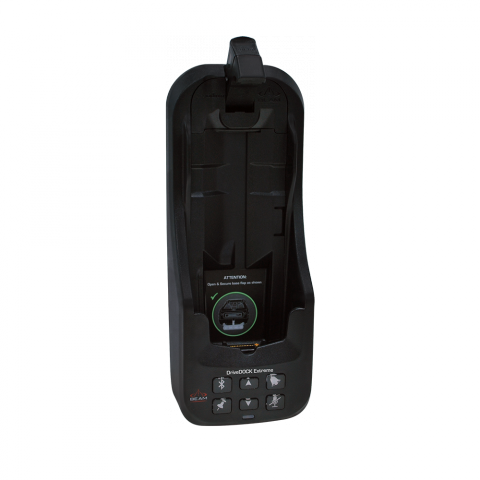

Designed for convenient installation, the DriveDOCK Extreme securely holds the Iridium Extreme handset using a click-to-lock mechanism. Its integrated antenna, data, and power connections allow cables to remain connected and ready for use. The dock also supports the handset’s SOS and tracking functions, helping users maintain access to essential satellite phone features while the handset is docked.
Key Features
- Designed for Iridium Extreme 9575: Dedicated docking station for the compatible Iridium satellite handset.
- Bluetooth Connectivity: Integrated Bluetooth supports compatible wireless hands-free communication.
- Hands-Free Calling: Built-in echo cancellation and full-duplex technology are designed to improve voice-call quality.

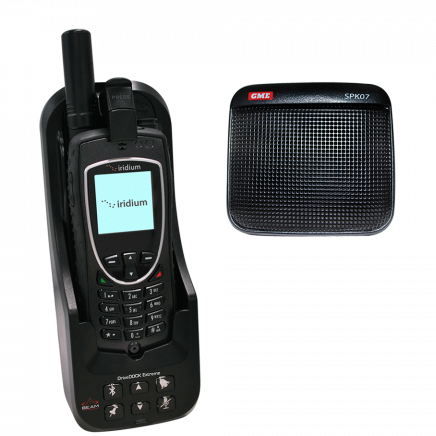

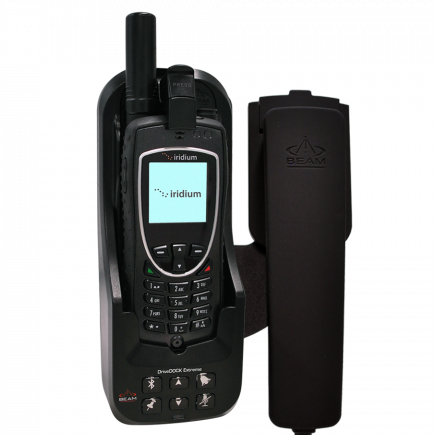

- Privacy Handset Support: Compatible with optional privacy handset accessories for private conversations.
- Voice and Data Services: Supports Iridium voice, SMS, Short Burst Data (SBD), and Circuit Switched Data.
- USB Data Interface: USB 2.0-compliant Mini-B connection with CDC Serial profile.
- Charging Capability: Charges the docked Iridium Extreme handset.
- SOS and Tracking Support: Provides access to compatible functions of the Iridium Extreme 9575 handset.
- External Interfaces: Includes an RS-232 D9 serial interface, accessory/ignition sensing, alarm loop, and horn output/audio mute interface.
- Integrated Antenna Connections: Supports Iridium and GPS antenna connections.
- Flexible Power Input: Operates from a 9–32 V DC supply, making it suitable for various vehicle power systems.
- Compact Installation: Includes a universal RAM mounting bracket.
- Two-Year Warranty: The manufacturer specifies a two-year repair or replacement warranty.
Technical Specifications
|
Specification |
Details |
|---|---|
|
Product Name |
Beam DriveDOCK Extreme |
|
Model |
EXTRMDD |
|
Manufacturer |
Beam Communications |
|
Compatible Handset |
Iridium Extreme 9575 |
|
Product Type |
Hands-Free Satellite Phone Docking Station |
|
Supported Services |
Voice, SMS, SBD, Circuit Switched Data |
|
Rated Input Voltage |
9–32 V DC |
|
Maximum Input Current |
2 A |
|
Standby Power Consumption |
70 mA at 12 V DC / 0.84 W |
|
Transmit + Charging Consumption |
0.7 A at 12 V DC / 8.4 W |
|
Sleep Mode Consumption |
5 mA at 12 V DC / 60 mW |
|
Bluetooth |
Bluetooth 2.0 + EDR |
|
Bluetooth Range |
Default Class 2, less than 10 m |
|
Bluetooth Frequency |
2.4–2.4835 GHz |
|
Bluetooth Profiles |
HFP 1.5, HFP-AG 1.5, SPP |
|
USB Interface |
USB Mini-B, 5-pin female, USB 2.0, USB Slave |
|
Serial Interface |
RS-232 D9 |
|
Privacy Handset Interface |
4-pole 3.5 mm audio jack |
|
External Speaker/Microphone |
Separate 2-pin Microfit connectors |
|
Alarm Interface |
Normally-closed loop input/output; supports cable runs up to 50 m |
|
Horn Output / Audio Mute |
Open-collector output, up to 120 mA current sink |
|
Accessory/Ignition Sense |
ACC input; high above 7 V DC, low below 5 V DC |
|
Operating Temperature |
-30°C to +70°C when the handset battery is fully charged |
|
Charging Temperature |
0°C to +45°C |
|
Storage Temperature |
-35°C to +85°C |
|
Operating Humidity |
Less than 85% RH, non-condensing |
|
Dock Dimensions |
82.2 × 212 × 75.9 mm |
|
Dimensions in Inches |
3.24 × 8.35 × 2.99 in |
|
Dock Weight |
0.45 kg / 1.0 lb |
|
Outer Box Dimensions |
140 × 330 × 125 mm |
|
Box Weight |
1.54 kg / 3.4 lb |
|
Mounting |
Universal RAM mounting bracket |
|
Certifications |
Iridium, EMC, CE, Electrical Safety, RoHS, C-Tick |
Specifications are based on the manufacturer’s datasheet. Ensure the selected power supply, antenna accessories, and installation meet the requirements of the intended application.
