Iridium Beam PotsDOCK Extreme (EXTRMPD)

Iridium Beam PotsDOCK Extreme (EXTRMPD)

Request for a quote

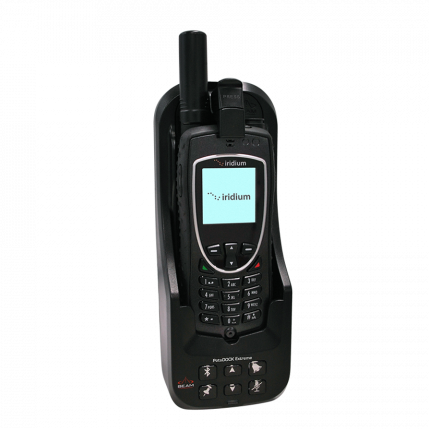

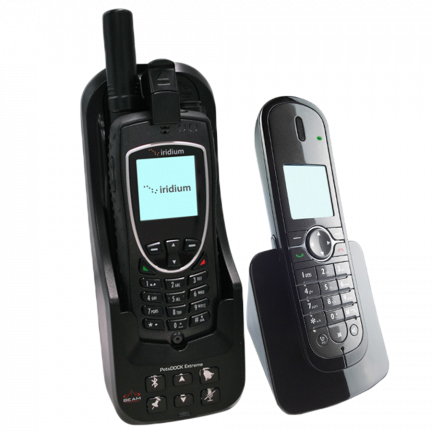

The Beam PotsDOCK Extreme EXTRMPD is a professional satellite phone docking solution designed for the Iridium Extreme 9575 handset, enabling satellite communications through standard telephone systems and compatible PABX infrastructure. Manufactured by Beam Communications, this compact docking station combines POTS/RJ11 connectivity, Bluetooth, USB data connectivity, handset charging, and GPS antenna support in one integrated solution. It allows users to connect corded, cordless, or DECT telephones, or integrate the dock with an analogue PABX system for a familiar telephone experience in remote locations.

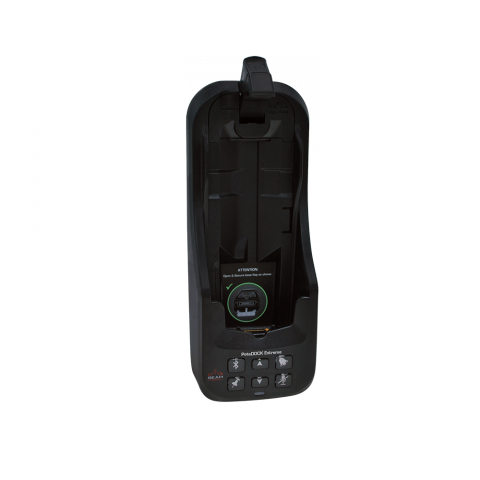

Designed for dependable operation, the PotsDOCK Extreme supports Iridium voice, SMS, Short Burst Data (SBD), and Circuit Switched Data services. Its click-to-lock handset mechanism keeps the Iridium Extreme securely docked, while integrated antenna, data, and power connections simplify installation. With configurable tracking and alert functions, support for emergency SOS functionality through the handset, and a wide 9–32 V DC input range, the PotsDOCK Extreme is a versatile solution for remote facilities, recreational vehicles, emergency services, and maritime environments.

Key Features

  • Designed for Iridium Extreme 9575: Dedicated docking station for the compatible satellite phone.

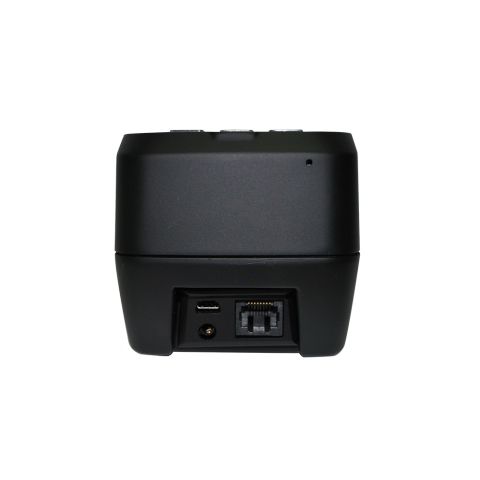

  • POTS/RJ11 Telephone Interface: Connects standard corded, cordless, or DECT telephones using a two-wire RJ11 interface.
  • Extended RJ11 Cable Support: Supports cable runs of up to 600 m (2,000 ft), subject to installation requirements.
  • Analogue PABX Compatibility: Integrates with compatible PABX systems and provides standard ring, busy, and dial tones.
  • Bluetooth Connectivity: Enables compatible Bluetooth voice connections.
  • Voice and Data Support: Supports voice, SMS, SBD, and Circuit Switched Data.
  • Tracking and SOS Support: Provides access to compatible tracking and SOS functions through the Iridium Extreme handset.
  • USB Data Interface: USB 2.0-compliant Mini-B connection with CDC Serial profile.
  • Charging Capability: Charges the docked satellite phone.
  • External GPS Antenna Support: Integrated GPS coupling capability allows connection of an external GPS antenna.
  • Accessory and Ignition Sensing: Supports accessory/ignition status input for compatible installations.
  • Flexible Power Supply: Accepts 9–32 V DC and includes an AC/DC power adapter.

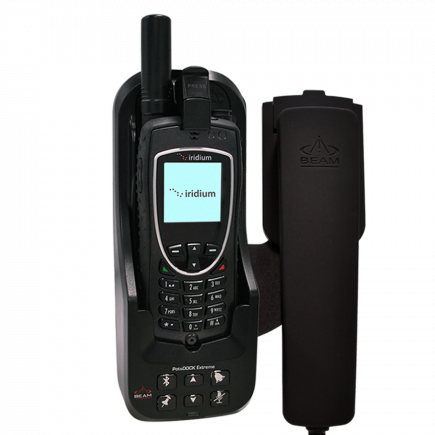

  • Optional Privacy Handset: Supports a compatible Beam privacy handset.
  • Two-Year Warranty: Manufacturer-specified repair or replacement warranty.

Technical Specifications

Specification

Details

Product Name

Beam PotsDOCK Extreme

Model

EXTRMPD

Manufacturer

Beam Communications

Compatible Handset

Iridium Extreme 9575

Product Type

Satellite Phone Docking Station

Supported Services

Voice, SMS, SBD, Circuit Switched Data

RJ11/POTS Interface

RJ11, two-wire

Maximum RJ11 Cable Run

Up to 600 m / 2,000 ft

PABX Compatibility

Analogue PABX

Dial and Busy Tones

Adjustable

Ringer Output

56 Vrms, 5 REN load

Ringer Settings

Adjustable frequency and cadence

Bluetooth

Bluetooth 2.0 + EDR

Bluetooth Frequency

2.4–2.4835 GHz

Bluetooth Range

Class 2, less than 10 m

Bluetooth Profiles

HFP 1.5, HFP-AG 1.5, SPP

Rated Input Voltage

9–32 V DC

Maximum Input Current

2 A

Standby Power Consumption

75 mA at 15 V DC / 1.1 W

Transmit + Charging Consumption

0.4 A at 15 V DC / 6 W

Sleep Mode Consumption

25 mA at 15 V DC / 0.3 W

AC Power Adapter Input

100–250 V AC, 50–60 Hz

AC Adapter Output

15 V DC, 60 W

USB Interface

USB Mini-B, 5-pin female, USB 2.0, USB Slave

Privacy Handset Interface

4-pole 3.5 mm audio jack

Alarm Interface

One input and one output

Alarm Loop

Normally closed; cable runs up to 50 m

Power Cable Interface

4-way Microfit connector with power, ground, and accessory/ignition sensing

Operating Temperature – Dock

-20°C to +70°C

Operating Temperature – Handset

-10°C to +55°C

Charging Temperature

0°C to +45°C

Storage Temperature

-30°C to +85°C

Operating Humidity

Less than 85% RH, non-condensing

Dock Dimensions

82.2 × 212 × 75.9 mm

Dimensions in Inches

3.24 × 8.35 × 2.99 in

Dock Weight

0.45 kg / 1.0 lb

Outer Box Dimensions

140 × 330 × 125 mm

Box Weight

1.54 kg / 3.4 lb

Mounting

Universal RAM mounting bracket

Certifications

Iridium, EMC, RoHS, WEEE, flame retardant, SELV safety

Specifications are based on the manufacturer’s datasheet. Confirm telephone-system compatibility, power requirements, and accessory requirements for your installation before ordering.
