Iridium Beam IntelliDOCK 9555 (9555ID)
Iridium Beam IntelliDOCK 9555 (9555ID)
Couldn't load pickup availability

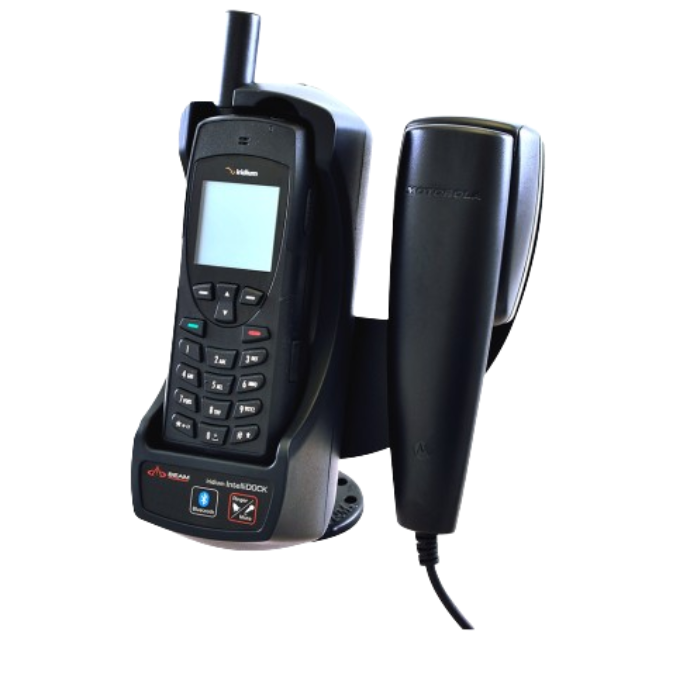

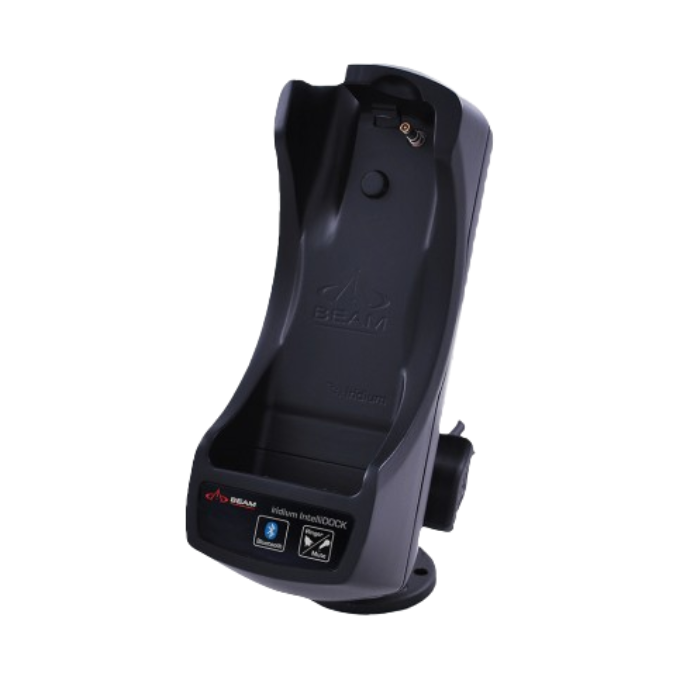

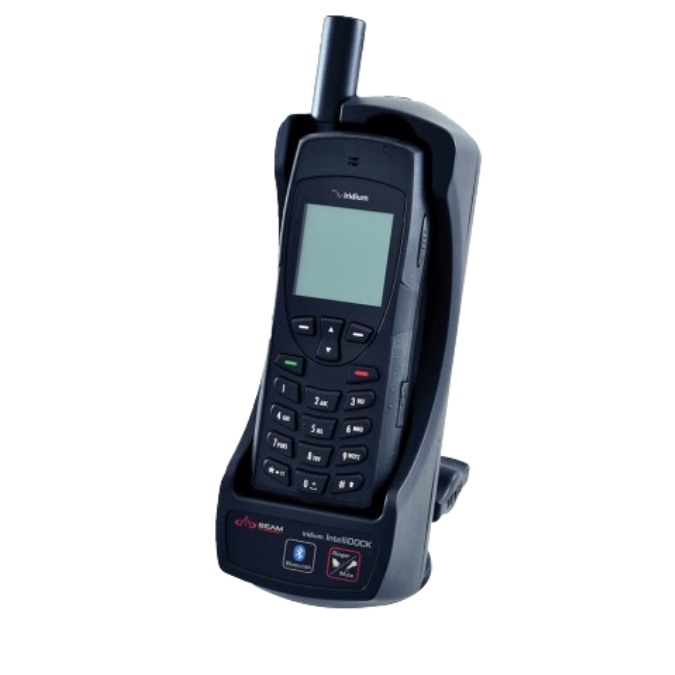

The Beam IntelliDOCK 9555 (9555ID) is a professional docking station designed specifically for the Iridium 9555 satellite phone. Manufactured by Beam Communications, it provides a convenient solution for using your satellite phone in maritime, transportation, recreational, and fixed-site environments. With integrated antenna, power, and data connections, the IntelliDOCK keeps your handset securely docked and charged, while built-in Bluetooth connectivity enables convenient hands-free calling.
Designed for reliable satellite communications, the IntelliDOCK 9555 supports Iridium voice, data, SMS, and Short Burst Data (SBD) services. Its compact construction, integrated ringer, and compatibility with an optional Beam Privacy Handset make it suitable for installations where accessible and dependable satellite communication is essential.
Key Features
- Designed for Iridium 9555: Securely holds the compatible satellite phone with an easy-release docking mechanism.
- Integrated Bluetooth: Supports compatible Bluetooth voice accessories for hands-free communication.
- Built-In Ringer: Provides enhanced incoming-call notification.
- Voice and Data Support: Compatible with Iridium voice, data, SMS, and SBD services.
- USB Data Connectivity: Provides a USB data interface for compatible applications.
- Integrated Antenna Connection: Allows antenna cables to remain connected while the handset is docked.
- Handset Charging: Keeps the Iridium 9555 charged and ready for use.
- Optional Privacy Handset: Supports the Beam Privacy Handset RST755 for private conversations.
- Flexible Power Input: Accepts 9–32 V DC, making it suitable for different installation environments.

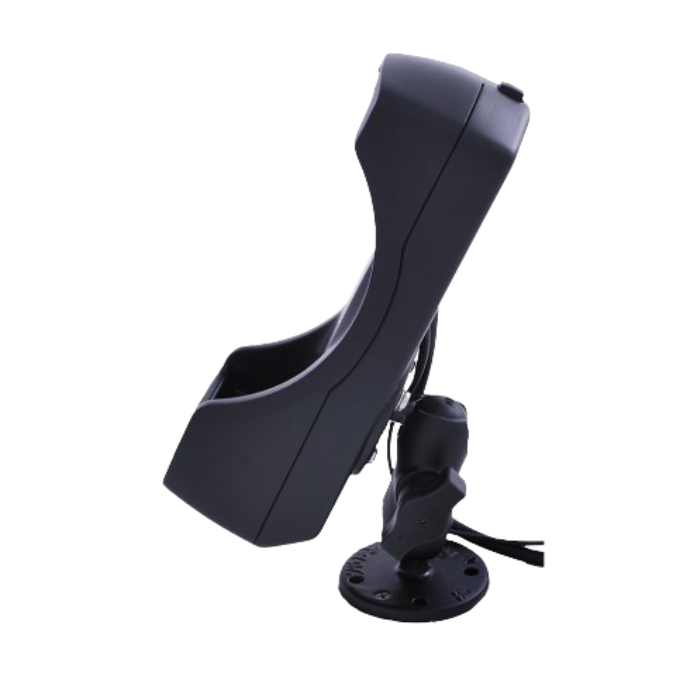

- Flexible Mounting: Includes a universal RAM mounting bracket and supports wall mounting.
- Optional AC Power Adapter: Compatible with an optional 110–240 V AC plug pack.
- Professional Construction: Designed for demanding applications, with a two-year replacement guarantee according to the manufacturer’s brochure.
Technical Specifications
|
Specification |
Details |
|---|---|
|
Product Name |
Beam IntelliDOCK 9555 |
|
Model |
9555ID |
|
Manufacturer |
Beam Communications |
|
Compatible Handset |
Iridium 9555 |
|
Product Type |
Satellite Phone Docking Station |
|
Iridium Frequency Range |
1616–1625 MHz |
|
Compressed Data Rate |
10–12 kbps |
|
Voice/Data Modulation |
2.4 kbps |
|
Power Input Voltage |
9–32 V DC |
|
Maximum Input Current |
2 A |
|
AC Power Adapter Input |
90–250 V AC, 50–60 Hz |
|
AC Adapter Output |
12 V DC, 45 W |
|
Standby Power Consumption |
45 mA at 15 V DC / 0.5 W |
|
Transmit Power Consumption |
0.5 A at 15 V DC / 6 W |
|
Sleep Mode Consumption |
18 mA at 15 V DC / 0.2 W |
|
Bluetooth |
Integrated Bluetooth voice connectivity |
|
Bluetooth Frequency |
2.4–2.4835 GHz |
|
Bluetooth Profiles |
HFP 1.5, HFP-AG 1.5, SPP |
|

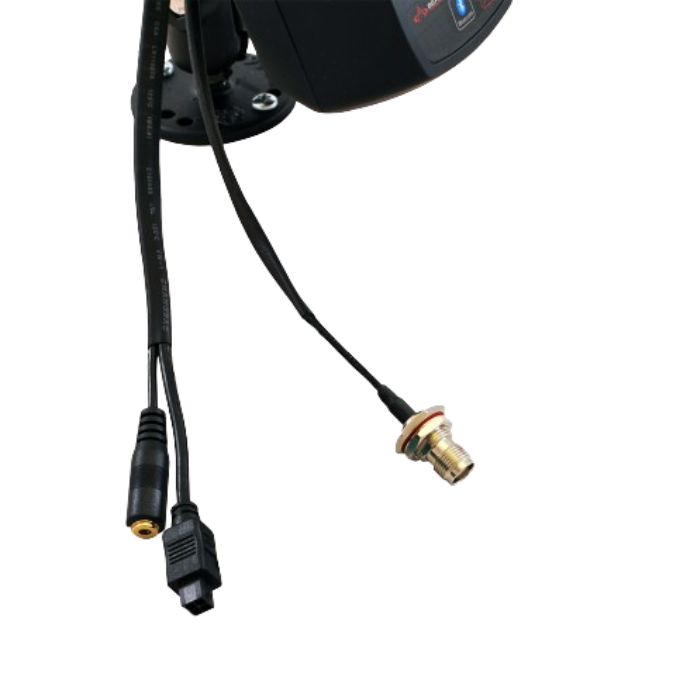

Iridium Antenna Connector |
Fixed cable to TNC female |
|
GPS Antenna Connector |
Fixed cable to SMA female |
|
DC Power Connector |
4-way Microfit |
|
Privacy Handset Port |
4-pole 3.5 mm jack |
|
Data Port |

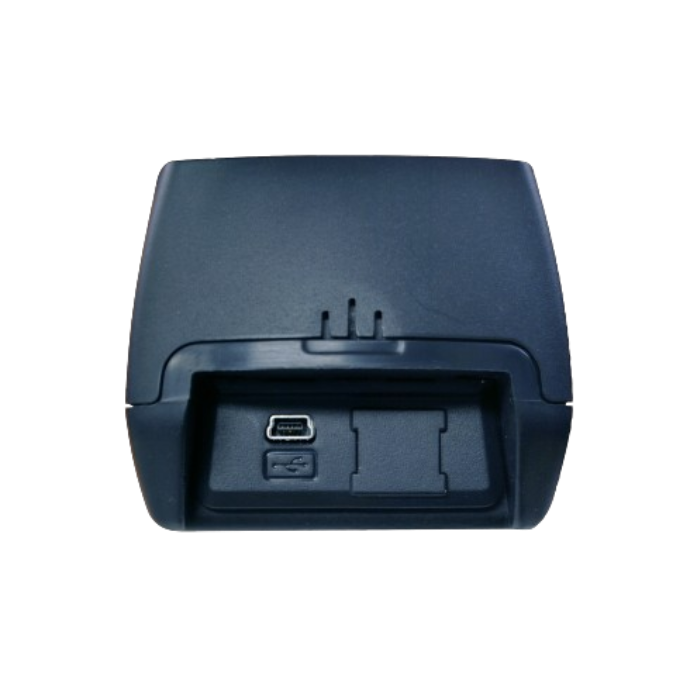

USB Mini-B at the base of the dock |
|
Ringer |
Built-in |
|
Bluetooth Indicator |
Blue/orange |
|
Mute/Ringer Indicator |
Red |
|
Backlight |
White LED |
|
Operating Temperature |
-30°C to +70°C |
|
Storage Temperature |
-40°C to +85°C |
|
Operating Humidity |
Less than 93% RH |
|
Dock Dimensions |
200 × 75 × 65 mm |
|
Dock Dimensions (Inches) |
7.9 × 3.0 × 2.6 in |
|
Dock Weight |
0.32 kg / 0.7 lb |
|
Packaged Dimensions |
325 × 140 × 88 mm |
|
Packaged Weight |
1.3 kg / 2.86 lb |
|
Certifications |
Iridium Approved, CE, EMC, Electrical Safety, RoHS, C-Tick |
Specifications are based on the manufacturer’s brochure. Confirm accessory compatibility and installation requirements before ordering.
