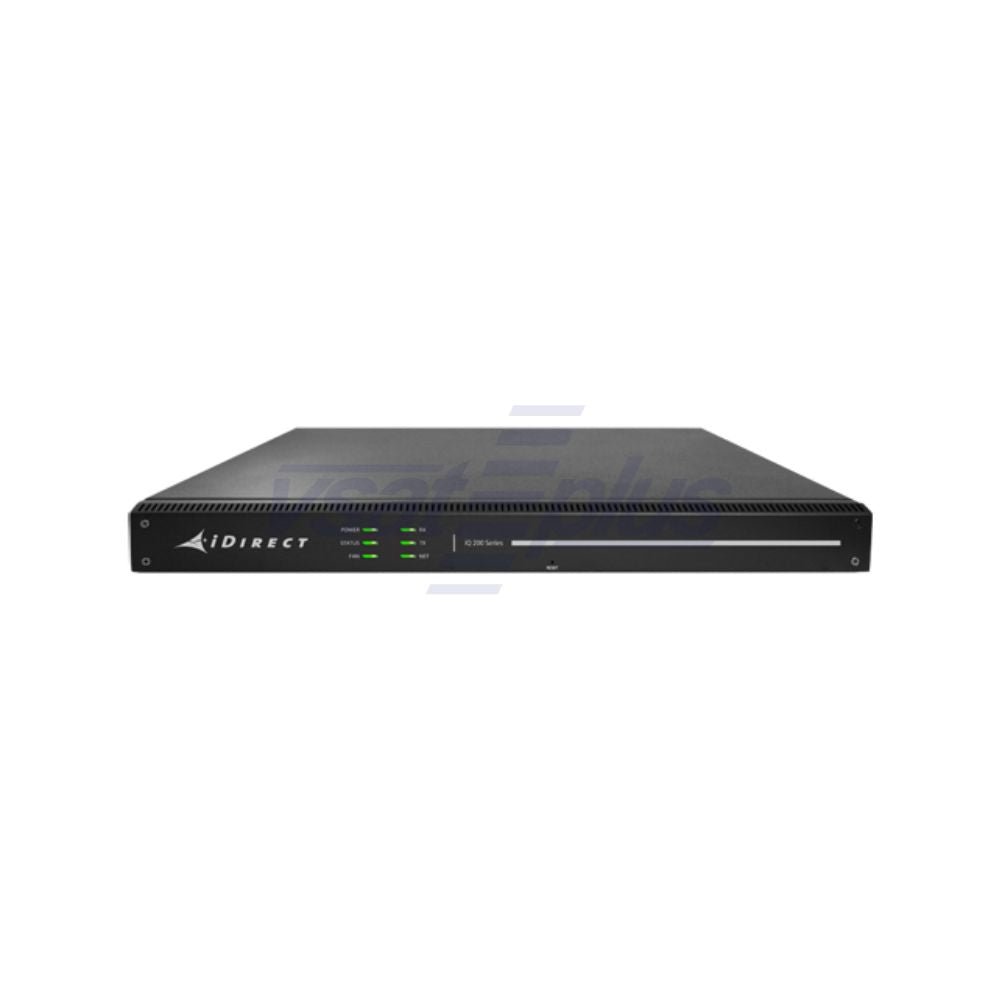

iDirect/ST Engineering iQ 200 Rackmount Satellite Modem

iDirect/ST Engineering iQ 200 Rackmount Satellite Modem

Request for a quote

The iQ 200 Rackmount is part of ST Engineering iDirect’s DVB-S2/S2X modem series with a software-defined architecture for maximum flexibility and expansion. Ideal for cost-effective, small to medium enterprise and maritime applications, the iQ 200 Rackmount combines high-performance iQ series features with mobility.

Ideal for enterprise, cellular backhaul and maritime applications, the iQ 200 Rackmount combines high-performance iQ series features with mobility and can reach throughputs over 300 Mbps when being used in L2oS mode. Its licensable features enable the service provider to scale easily by adding more inbound throughput capabilities to the modem avoiding costly site visits or remote swap outs. It will also support high return throughput capabilities due to high Msps rate (up to 15 Msps) on the inbound and supports higher power BUCs and OpenAMIP mobility. The iQ Rackmount features a dual GigE Ethernet port and is compatible with a variety of ODU configurations. The modem’s ease of installation allows services providers to deploy their services quickly, in a cost-effective way.

The iQ 200 Rackmount is also available in a board-level form factor, iQ 200 Board, ideal for terminal integration.

Features of the iQ 200 Rackmount
  • DVB-S2 (up to 45 Msps) / DVB-S2X (up to 100 Msps) outbound
  • Supports a full range of DVB-S2X MODCODS up to 256APSK
  • Adaptive TDMA up to 15 Msps, 16QAM
  • Ideal for both fixed and mobility applications
  • 10 and 50 MHz reference for BUC compatibility
  • OpenAMIP compatibility for ease of integration
  • Layer 2 and Layer 3 optimized

Network Configuration

Network Topology Rx Tx
DVB-S2X*/ACM DVB-S2*/ACM Adaptive TDMA
Modulation QPSK, 8PSK, 16APSK, 32APSK,
64APSK, 128APSK, 256 APSK		 QPSK, 8PSK,
16APSK, 32APS		 SS-BPSK, BPSK, QPSK, 8PSK,
16QAM*
FEC Refer to the LBA guide LDPC 1/4 - 8/9 2D 16-State 1/2 - 6/7
Symbol Rates 5 Msps to 100 Msps 1 Msps to 45 Msps 128 ksps to 15 Msps
Spread Spectrum* SF: 2,4,8; Up to 7.5 Mcps

Modem Interfaces

Tx Interface

Connector F-Type 75 Ohm
Frequency range L-band 950 - 2150 MHz
TX level Pmax of +0 dBm to Pmin of -35dBm
BUC power supply +24V, 4.0A max available @connector TX
out
BUC reference 10/50 MHz

Rx Interface

Connector F-Type 75 Ohm
Frequency 950-2150 MHz
LNB power supply 13, 18, 21VDC @ 0.5A @ connector Rx in
LNB LO selection 22 kHz on/of

Data / Management Interface

LAN: Two 10/100/1000 Mbps Ethernet
RJ 45 Console

Management

Protocols Supported

TCP, UDP, ICMP, DHCP, NAT/PAT, DNS, ROHCv2, RIPv2, IGMPv2,
IGMPv3, ICMP, IPv4 (IPv6 over L2oS), L3, VRRP, BGP

Security

256-bit AES Link Encryption (optional)

Mechanical and Environmental

Size W 44.5 cm x D 32 cm x H 4.45cm
(W 17.5 in x 12.6 in x 1.75 in)
Weight 4.5 kg (10 lbs)
Temperature:
                               Operating 0° to +60°C (32° to +140°F)
                                Storage -40° to +85°C (-40° to +185°F)
Humidity:
                               Operating 10 - 90% non-condensing
                               Storage 5 - 95% non-condensing

Power Supply

Input Voltage 100-240VAC, 50-60Hz
36-76VDC (with DC power supply
