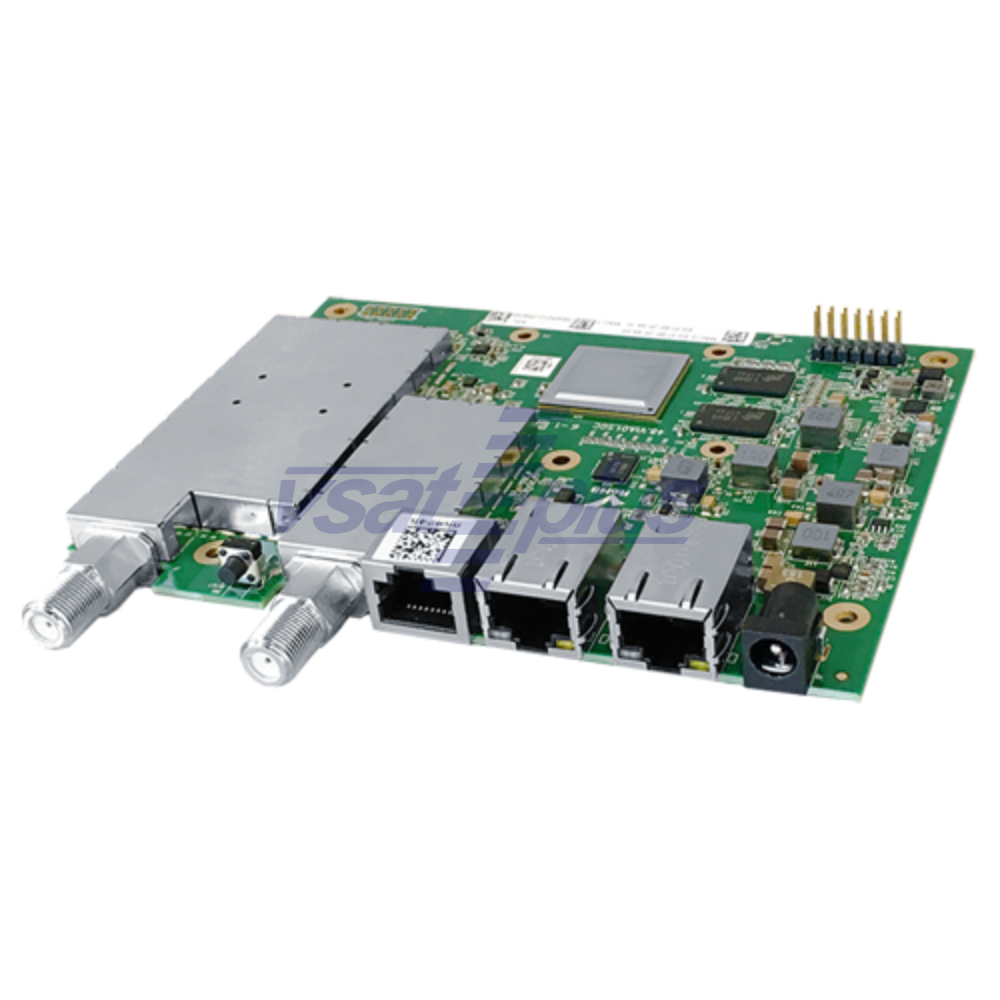

The iQ 200 Integrated Router Board features DVB-S2/DVB-S2X with Adaptive TDMA returns. Designed to integrate into complete terminals serving small to medium enterprise and maritime application, the iQ 200 Board combines high-performance iQ series features with mobility.

The iQ 200 modem series is ideal for enterprise, cellular backhaul, land mobile and maritime applications combining high-performance iQ series features with mobility. Designed to integrate into complete terminals the iQ 200 Integrated Router Board combines high-performance iQ series features with OpenAMIP mobility. OpenAMIP is an IP based protocol that facilitates the exchange of information between an Antenna Controller Unit and a satellite modem ensuring a seamless integration. The iQ 200 Board’s licensable features enable the service integrator to provide a terminal that can easily scale by adding more inbound throughput capabilities to the modem.

The iQ 200 Board is also available in a 1RU rackmount chassis.

Features of the iQ 200 Integrated Router Board

  • DVB-S2 (up to 45 Msps) / DVB-S2X (up to 100 Msps) outbound

  • Supports a full range of DVB-S2X MODCODS up to 256APSK

  • Adaptive TDMA up to 15 Msps, 16QAM

  • Ideal for both fixed and mobility applications

  • 10 and 50 MHz reference for BUC compatibility

  • OpenAMIP compatibility for ease of integration

  • Layer 2 and Layer 3 optimized

Network Configuration

Network Topology Rx Tx
DVB-S2X*/ACM DVB-S2*/ACM Adaptive TDMA
Modulation QPSK, 8PSK, 16APSK, 32APSK,
64APSK, 128APSK, 256 APSK		 QPSK, 8PSK,
16APSK, 32APSK		 SS-BPSK, BPSK, QPSK, 8PSK,
16QAM*
FEC Refer to the LBA guide LDPC 1/4 - 8/9 2D 16-State 1/2 - 6/7
Symbol Rates 5 Msps to 100 Msps 1 Msps to 45 Msps 128 ksps to 15 Msps*
Spread Spectrum*  SF: 2,4,8; Up to 7.5 Mcps

Modem Interfaces

Tx Interface
Connector F-Type 75 Ohm
Frequency range L-band 950-2400 MHz
Tx level Pmax of +0 dBM to Pmin of -35dBM
BUC power supply +24V, 2.3A(max) @ connector Tx out
BUC reference 10/50 MHz

Rx Interface

Connector F-Type 75 Ohm
Frequency 950-2150 MHz
LNB power supply 13/18/21VDC @ 0.5A @ connector Rx in
LNB LO selection 22 kHz on/of

Data/Management Interface

LAN: Two 10/100/1000 Mbps Ethernet
RJ-45: console

*Feature is release and platform dependent
Please note that the integrator is responsible for all certs. at the terminal level

Management

Protocols Supported

TCP, UDP, ICMP, DHCP, NAT/PAT, DNS, ROHCv2, RIPv2, IGMPv2,
IGMPv3, ICMP, IPv4 (IPv6 over L2oS), L3, VRRP, BGP

Security

 256-bit AES Link Encryption (optional)

Mechanical and Environmental

Size W 13.7 cm x D 10.5 cm x H 1.8 cm
(W 5.41 in x D 4.13 in x H 0.71 in)
Weight 0.14 kg (0.3 lbs)
Refer to integration guide for thermal design guidelines

Power Supply

Input Voltage 24V +/- 5%
Power Consumption ~15 Watts
