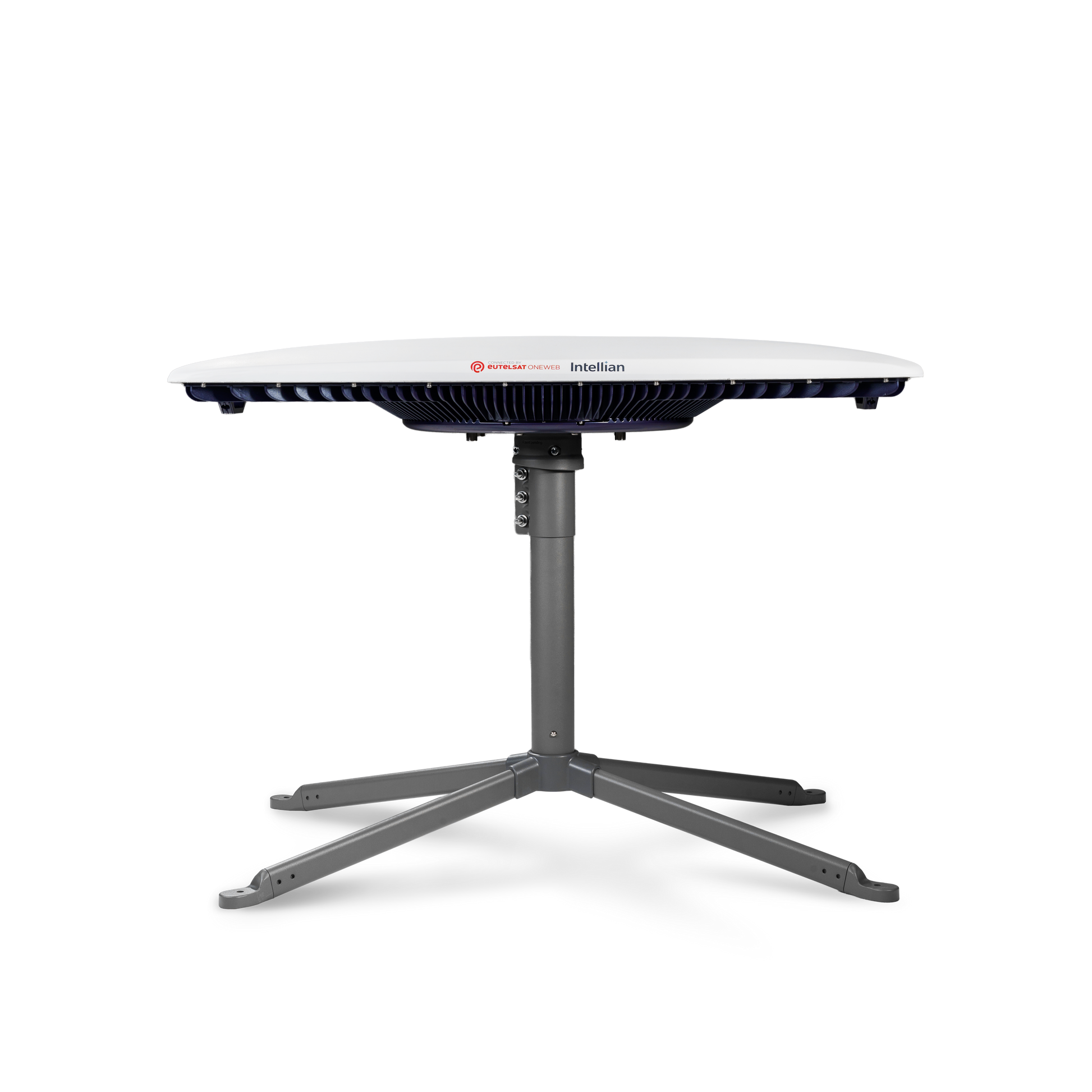

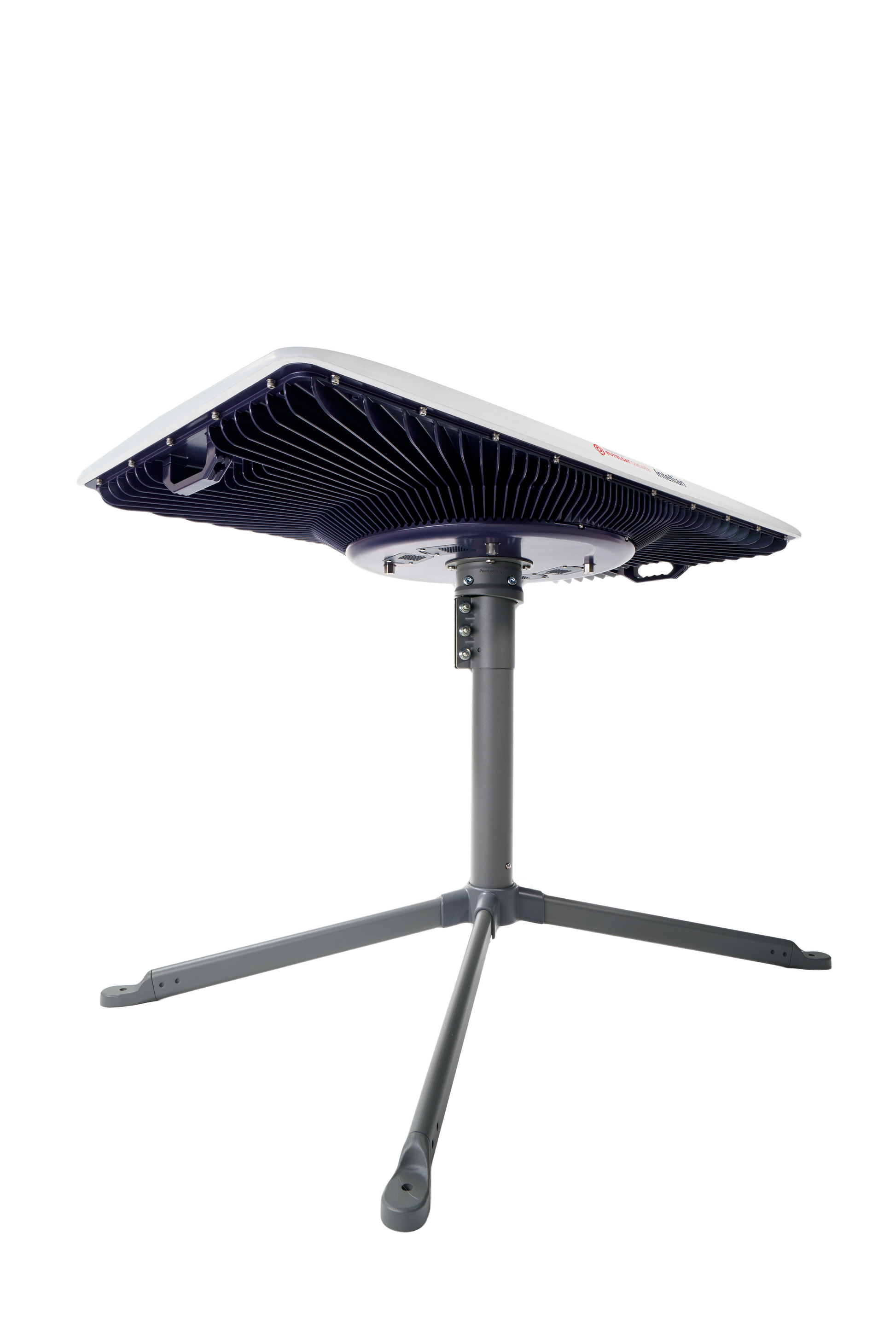

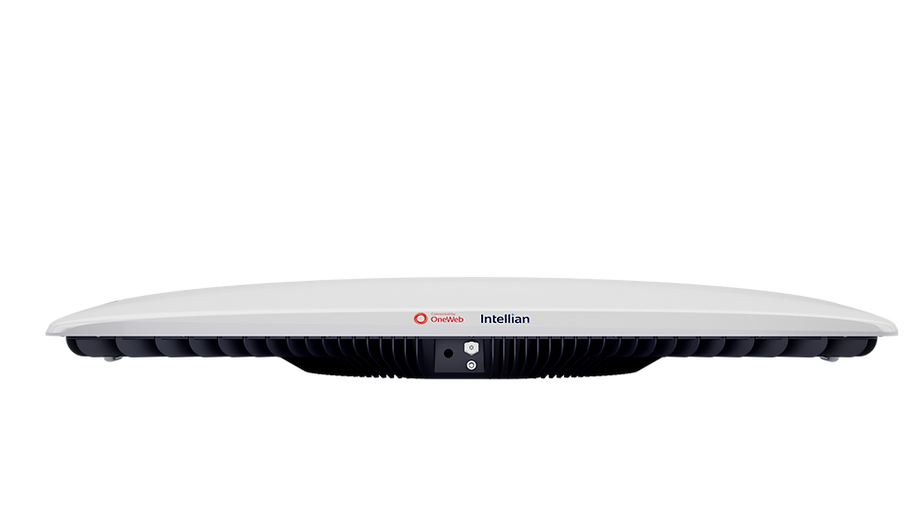

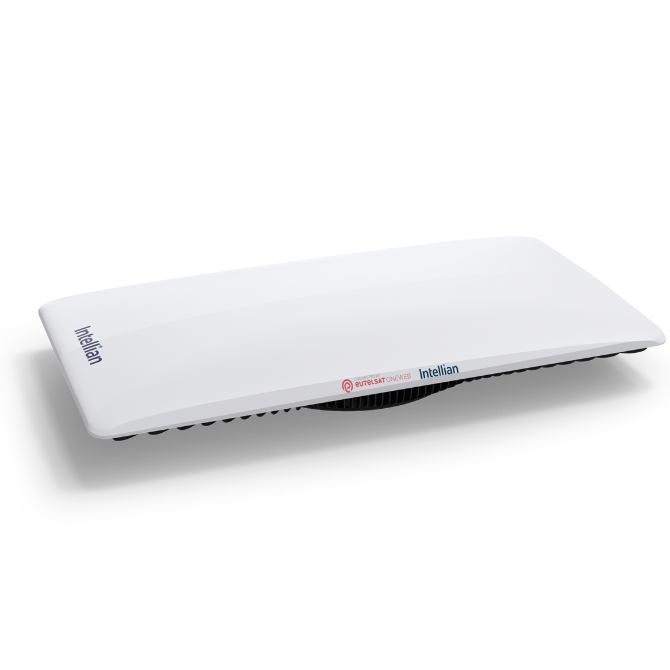

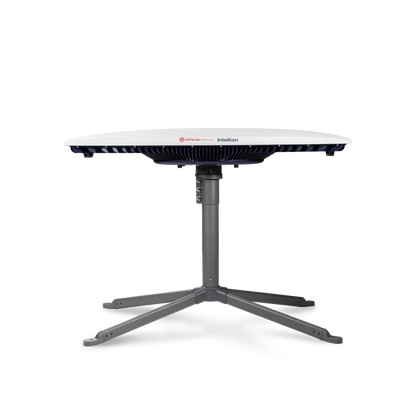

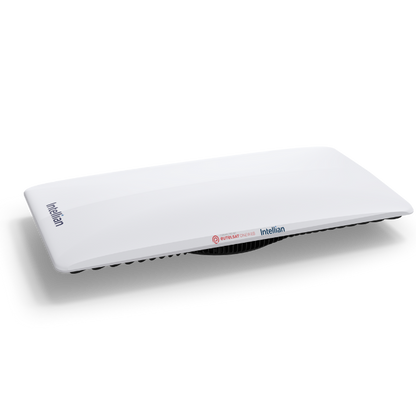

Intellian OW11FL | Enterprise Flat Panel for Land - ONEWEB LEO
Intellian OW11FL | Enterprise Flat Panel for Land - ONEWEB LEO
Sale
Sold out
Couldn't load pickup availability
Product Overview
The Intellian OW11FL is a cutting-edge flat panel designed to deliver high reliability and performance for enterprise, community broadband, and government applications. With its advanced antenna technology and seamless connectivity, the OW11FL ensures uninterrupted communication, even in the most challenging environments.
Key Features
- High Reliability and Performance: Ensures SLA and CIR commitments are met.
- Advanced Antenna Design: Maximizes throughput on the OneWeb network.
- Seamless Connectivity: Reliable handovers at low elevation angles.
- Robust Environmental Performance: Operates in temperatures from -40 °C to +55 °C.
- Simplified Installation: Lightweight design with single coaxial cable for power and data.
Technical Specifications
| Category | Specification |
|---|---|
| Above Deck Unit | |
| G/T | 10.5 dB/k |
| EIRP | +36.0 dBW (Dual Carrier) |
| Dimensions | 95 x 45 x 12 cm (37.4” x 17.7” x 4.7”) |
| Weight | 15 kg (33 lb) |
| Operating Temp | -40 °C to +55 °C (-40 °F to +131 °F) |
| Ingress Protection | IP66 |
| Interface | F-Type Port, SMA Port (R-GNSS) |
| Peak Downlink Rate | 180 Mbps* |
| Peak Uplink Rate | 30 Mbps* |
| Below Deck Units | |
| CNX-WIFI Dimensions | 21 x 17 x 8 cm (8.2” x 6.7” x 3.1”) |
| CNX-MOBILITY Dimensions | 30 x 20 x 4 cm (11.8” x 7.9” x 1.6”) |
| CNX-RACK-AC Dimensions | 44.2 x 25 x 4.4 cm (19” x 1 RU chassis) |
| Weight | CNX-WIFI: 0.6 kg (1.3 lb); CNX-MOBILITY: 1.5 kg (3.3 lb); CNX-RACK-AC: 6.3 kg (13.9 lb) |
| Operating Temp | CNX-WIFI: 0 °C to +40 °C (+32 °F to +104 °F); CNX-MOBILITY & CNX-RACK-AC: -25 °C to +55 °C (-13 °F to +131 °F) |
| Ingress Protection | IP44 (CNX-WIFI), IP56 (CNX-MOBILITY), IP31 (CNX-RACK-AC) |
| Interface | Various ports including GigE RJ45, F-type, WiFi-6 |
| Power Supply | External DC and AC options; embedded 450 W dual power modules available |
Ordering Information
The Intellian OW11FL is available through VSATPlus. Contact us to order and benefit from our expert support and service.
