Product Overview

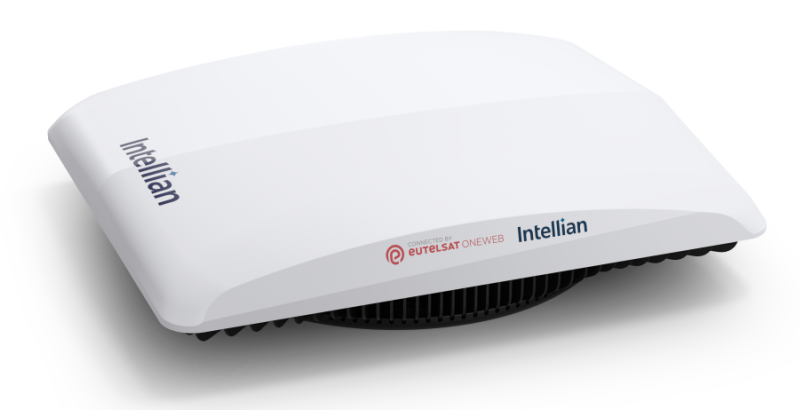

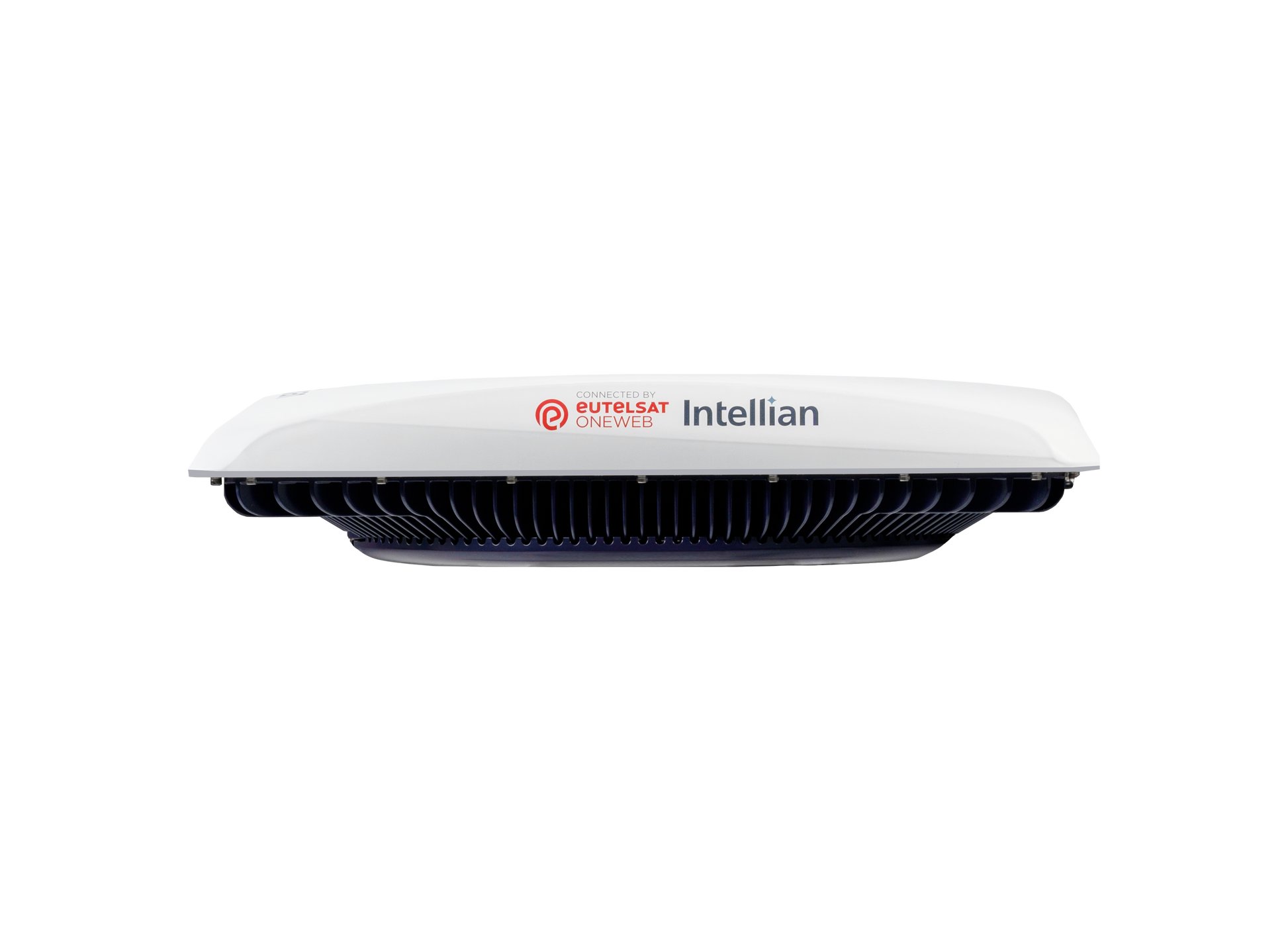

The Intellian OW10HV is designed for industries requiring reliable mobile connectivity solutions, such as first responders, transportation, agriculture, and forestry. With its compact form factor, advanced tracking technology, and robust performance in harsh environments, the OW10HV ensures seamless and dependable communication.
Key Features
- Optimized Performance: Delivers high performance in a compact form, ideal for SWaP-constrained applications.
- Customer Network Exchange (CNX): Provides power and data connectivity with variants for specific deployment scenarios.
- Seamless Connectivity: Advanced tracking technology ensures reliable handovers and connectivity.
- Harsh Environment Performance: Operates in extreme temperatures from -40 °C to +55 °C (-40 °F to +131 °F).
- Simplified Installation: Lightweight design allows for easy installation on various vehicles
Specifications Table
| Category | Specification |
|---|---|
| Outdoor Unit | |
| G/T | 9 dB/k |
| EIRP | +36.6 dBW (Dual Carrier) |
| Dimensions | 56 x 45 x 12 cm (22” x 17.7” x 4.7”) |
| Weight | 12.2 kg (26.9 lb) |
| Operating Temp | -40 °C to +55 °C (-40 °F to +131 °F) |
| Ingress Protection | IP66 |
| Interface | F-Type Port, SMA Port (R-GNSS) |
| Peak Downlink Rate | 75 Mbps* |
| Peak Uplink Rate | 14 Mbps* |
| In-Vehicle Units | |
| CNX-BB Dimensions | 13 x 12 x 4 cm (5.1” x 4.7” x 1.6”) |
| CNX-WIFI Dimensions | 21 x 17 x 8 cm (8.2” x 6.7” x 3.1”) |
| CNX-MOBILITY Dimensions | 30 x 20 x 4 cm (11.8” x 7.9” x 1.6”) |
| CNX-RACK-AC Dimensions | 44.2 x 25 x 4.4 cm (19” x 1 RU chassis) |
| Weight | CNX-BB: 0.25 kg (0.55 lb); CNX-WIFI: 0.6 kg (1.3 lb); CNX-MOBILITY: 1.5 kg (3.3 lb); CNX-RACK-AC: 6.3 kg (13.9 lb) |
| Operating Temp | CNX-BB & CNX-WIFI: 0 °C to +40 °C (+32 °F to +104 °F); CNX-MOBILITY & CNX-RACK-AC: -25 °C to +55 °C (-13 °F to +131 °F) |
| Ingress Protection | IP44 (CNX-BB), IP56 (CNX-WIFI), IP31 (CNX-MOBILITY) |
| Interface | Various ports including GigE RJ45, F-type, WiFi-6 |
| Power Supply | External DC and AC options; embedded 450 W dual power modules available |
Ordering Information
The Intellian OW10HV is available through VSATPlus. Visit our website to learn more and place an order for this innovative connectivity solution.
