Product Overview

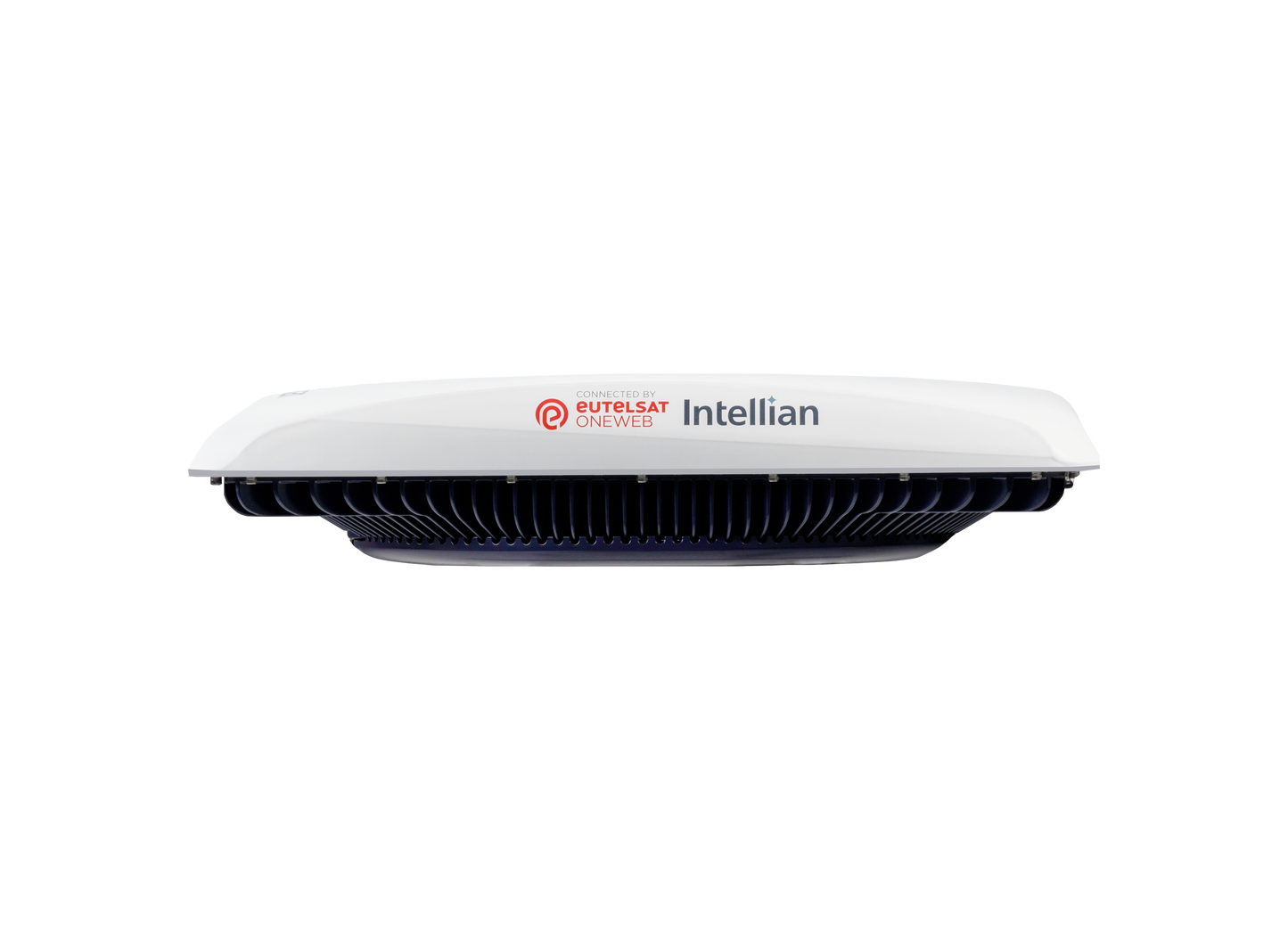

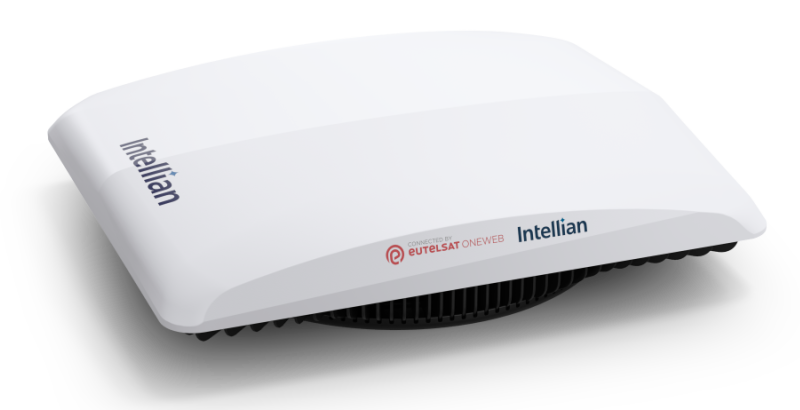

The Intellian OW10HL is a compact flat panel designed for enterprises and businesses seeking high-speed, reliable connectivity. Optimized for size, weight, and power (SWaP), this terminal is part of Intellian's Flat Panel Series, utilizing active electronically scanned arrays (AESA) for seamless communication. With advanced tracking technology and extreme temperature performance, the OW10HL ensures dependable broadband services in remote and challenging locations.
Key Features
- Optimized Performance: High performance in a compact form factor, ideal for SWaP-constrained environments.

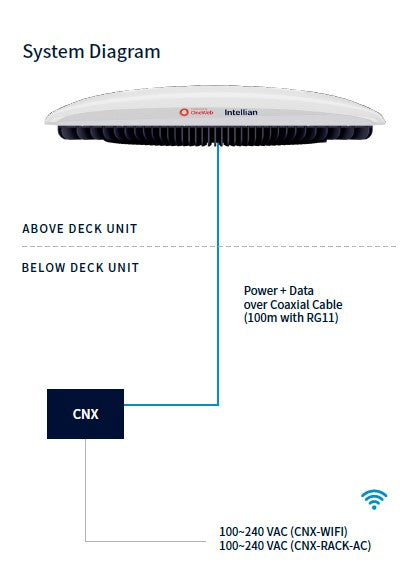

- Customer Network Exchange (CNX): Provides power and data connectivity, with variants for specific deployment scenarios.
- Seamless Connectivity: Advanced tracking technology facilitates reliable handovers and uninterrupted connectivity.
- Extreme Temperature Performance: Operates in temperatures from -40 °C to +55 °C (-40 °F to +131 °F).

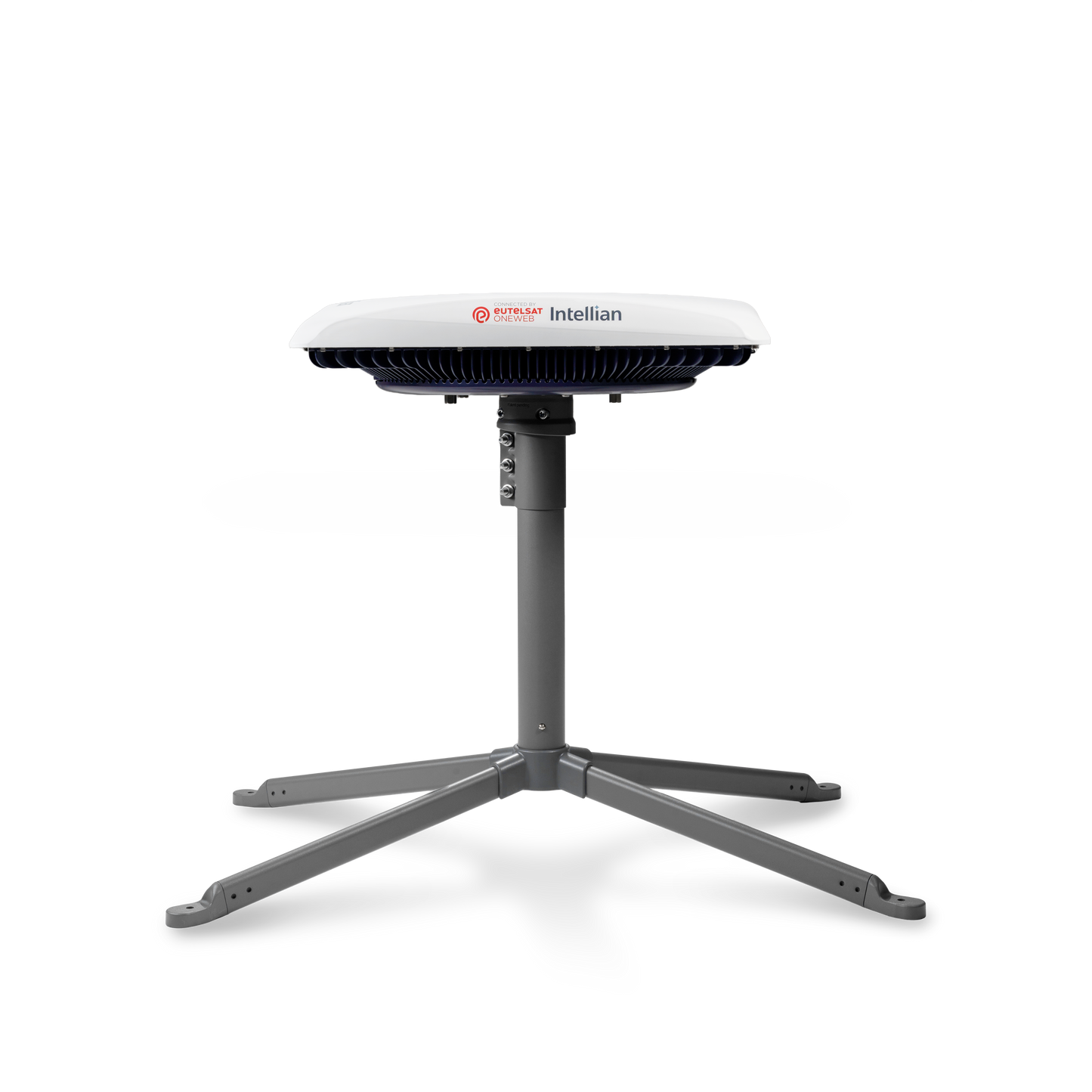

- Simplified Installation: Lightweight design enables easy installation with standard mounting solutions.
Specifications Table
| Category | Specification |
|---|---|
| Outdoor Unit | |
| G/T | 9 dB/k |
| EIRP | +36.6 dBW (Dual Carrier) |
| Dimensions | 56 x 45 x 12 cm (22” x 17.7” x 4.7”) |
| Weight | 12.2 kg (26.9 lb) |
| Operating Temp | -40 °C to +55 °C (-40 °F to +131 °F) |
| Ingress Protection | IP66 |
| Interface | F-Type Port, SMA Port (R-GNSS) |
| Peak Downlink Rate | 75 Mbps* |
| Peak Uplink Rate | 14 Mbps* |
| Indoor Units | |
| CNX-BB Dimensions | 13 x 12 x 4 cm (5.1” x 4.7” x 1.6”) |
| CNX-WIFI Dimensions | 21 x 17 x 8 cm (8.2” x 6.7” x 3.1”) |
| CNX-RACK Dimensions | 44.2 x 25 x 4.4 cm (19” x 1 RU chassis) |
| Weight | CNX-BB: 0.25 kg (0.55 lb); CNX-WIFI: 0.6 kg (1.3 lb); CNX-RACK: 6.3 kg (13.9 lb) |
| Operating Temp | CNX-BB & CNX-WIFI: 0 °C to +40 °C (+32 °F to +104 °F); CNX-RACK: -25 °C to +55 °C |
| Ingress Protection | IP44 (CNX-BB), IP31 (CNX-WIFI) |
| Interface | Various ports including GigE RJ45, F-type, WiFi-6 |
| Power Supply | External DC and AC options; embedded 450 W dual power modules available |
Ordering Information
The Intellian OW10HL is available through VSATPlus. Visit our website to learn more and place an order for this innovative connectivity solution.
Intellian OW10HL Datasheet
