Inmarsat IsatHub Satellite WiFi Hotspot

Inmarsat IsatHub Satellite WiFi Hotspot

BGAN

Limited-Time Offers, End in:

Smart connectivity anywhere  Imagine a world where you can take your own personal connectivity to accompany one of your most valued possessions – your smart device – wherever you go. Take your world with you Imagine a world where you...

  • Category: All Products, BGAN, Inmarsat, Limited Offers, On-sale Products

Smart connectivity anywhere

Imagine a world where you can take your own personal connectivity to accompany one of your most valued possessions – your smart device – wherever you go.

Take your world with you

Imagine a world where you use your phone or tablet seamlessly to talk, text, access the internet and your apps, independently of cellular and fixed networks. Well that world is here with IsatHub, our global smart device connectivity service. So now you can remain productive by having a constant line back to the office and stay in touch with your friends and family wherever you go.

Simple to use

The IsatHub service is accessed from your iPhone, iPad and/or iPod touch or Android[TM] device through the control app. This provides set-up assistance and gives you full control over access to the service as well as visibility of data usage from each device sharing the IsatHub connection. The voice app enables you to use your smart device to send and receive voice calls via IsatHub’s dedicated high-quality voice line, as well as text messages, even if your device is for WiFi use only.

How it works





IsatHub terminal

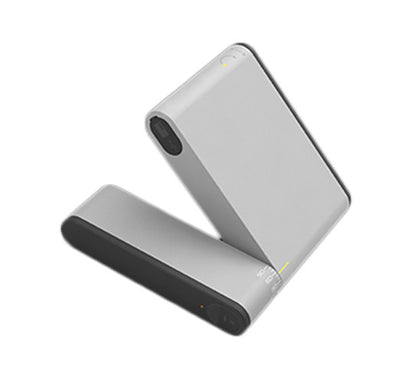

The first terminal to access the IsatHub service is Addvalue’s Wideye iSavi:


  • Weighs 850g
  • 179 x 170 x 30 mm
  • IsatHub services supported
    • Standard IP (up to 384 / 240 Kbps)
    • Circuit switched voice
    • Text
  • Battery: 2.5hr operating
  • Wi-Fi range of 30 metres / 100 feet
  • Built in SIP server
  • Mains charger
  • USB port for firmware updates only
  • LED arrows for pointing assistance
IsatHub iSavi General Specifications
Internet Speed Standard TCP-IP 384 Kbps down, 240 Kbps up
Frequencies Satellite Transmit: 1626.5 – 1660.5 MHz and 1668 – 1675 MHz
Satellite Receive: 1518 – 1559 MHz
GPS Frequency: 1574.42 – 1576.42 MHz
Satellite Phone App Calling via Smartphone App - Standard Circuit Switched PSTN Call (not VoIP).
IsatHub is issued international satellite phone number with (870) country code.
Available free from iTunes and Google Play app stores
Web Interface Type in 192.168.1.35 or the word "isavi" into any connected browser to access iSavi web interface.
Control App Available free from Apple App Store and Google Play Store
Voice App Available free from Apple App Store and Google Play Store
Transmit/Calling Time
2.5 hours using the standard battery (at full transmit power)
Standby Time
24 hours idle standby time - using the standard battery
Wi-Fi 802.11 b/g/n with up to 30 meters range (100 feet). Default is 802.11b ...May be changed from iSavi Web Interface.
AC Power
100 - 240 VAC, 50-60Hz; (comes with international AC adapter kit)
DC Power (vehicle adapter)
TBA
Battery
Standard Battery is Li-Ion rechargeable with a capacity of 3 Amp Hours.
Optional High Capacity 6Ah Battery will be available
Dimensions L x W x D
7.09" x 6.7" x 1.18" inches (180 x 170 x 30 mm)
Operating Temperature
-20 °C to +55 °C, -4°F to +131°F. Terminal has temperature warning if overheating.
Storage Temperature
(before battery depleted)
1 month: Over 104° F (+40°C)
6 months: Over +95°F (+35°C)
1 year: Between -20 °C to +35 °C, -4°F to +95°F
Terminal Weight 1.98lbs (900g) Total - Transceiver = 1.41lbs (640g) and Battery Pack is .57lbs (260g)
Humidity 95% RH (non-condensing at +40 °C or +104°F)
Ingress Protection IP65 Compliant
Power Adapter 110/230 volts AC, o/p +18V, 65 watt
Weight
1.9 lbs (850g)
GPS Yes
iSavi iSatHub
Supported Languages
English, French, Spanish, Portuguese, Chinese, Japanese, Russian, Arabic
(Quickstart Booklet is written with all 8 languages... Apps may choose from the above languages)
Interface - Device Ports Power Port
USB Mini Port - For use for Firmware Updating only
Security Wi-Fi Password Control - MAC Address Filtering
Firewall pre-set selections - Configured from Web User Interface
Voice Connectivity SIP server using Apps on Smart Devices
Manufacturer The Inmarsat IsatHub uses the Wideye iSavi manufactured by Addvalue, currently the only terminal licensed for the IsatHub network.
Control App Operating
System Requirements
iOS 6 or higher (on an iPhone 4 or iPad 3 or higher) Android 4.1 or higher.
Compliance FCC, CE, Industry Canada (IC), RoHS2 Compliance, WEEE, CMPCS MOU-ITU Registry, Inmarsat Type Approval, UL/IEC, UN, CE (battery pack safety).
