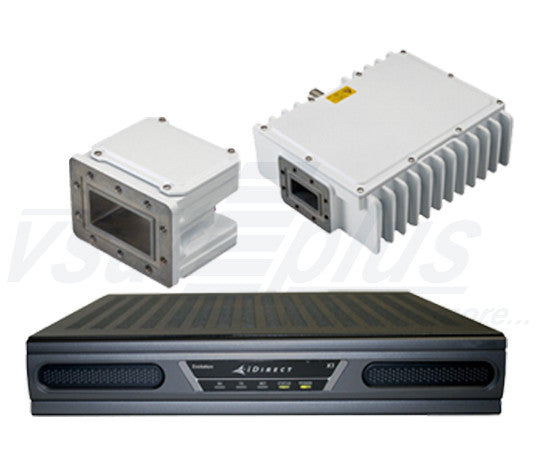

iDirect X1 Satellite Router (90W PSU) with 5W Standard C-Band ODU Bundle

Not Specified

Terminals

iDirect

IDIRECT EVOLUTION® X1 SATELLITE ROUTER Reliable, high-speed IP connectivity for large, narrowband networksThe iDirect Evolution X1 is optimized for use in large networks with small inbound channels such as SCADA, pipeline monitoring, point-of-sale and ATM. The X1 features DVB-S2/ACM, TDMA, basic routing and VLAN functionality at a cost-effective price point.EVOLUTION...
Add to wishlist

IDIRECT EVOLUTION® X1 SATELLITE ROUTER

Reliable, high-speed IP connectivity for large, narrowband networks

The iDirect Evolution X1 is optimized for use in large networks with small inbound channels such as SCADA, pipeline monitoring, point-of-sale and ATM. The X1 features DVB-S2/ACM, TDMA, basic routing and VLAN functionality at a cost-effective price point.

EVOLUTION X1 HIGHLIGHTS
  • Star topology
  • DVB-S2/ACM outbound for greater efficiency and enhanced network availability
  • Deterministic MF-TDMA return channel
  • Optional IP67 enclosure to withstand extreme temperatures
  • AC or DC power supplies
  • Low cost of entry

Compact and cost-effective, the Evolution X1 Satellite Router features DVB-S2 and Adaptive Coding and Modulation (ACM) on the outbound and deterministic TDMA on the return to maximize bandwidth efficiency. The X1 outdoor version is low-powered, withstands extreme temperatures and is pole mountable for increased flexibility and convenience. The X1 also has a web-based iSite for ease of remote commissioning.

NJRC NJT5669F 5W C-Band BUC

  • RF Output Frequency: 5.85 - 6.425 GHz
  • Output Power @P1dB: 5W (+37 dBm)
  • IF Frequency: 950-1525 GHz
  • Input Connector: Type F Female
  • Output Interface: CPR137 Waveguide Flange (with groove)
  • Power Requirement: +24VDC ( +15 to +30 VDC)
  • Power Consumption: 48W
  • Max Weight: 1.9 kg (4.2 lbs)
  •

    NJRC NJS8487H C-Band (3.625-4.2 GHz) PLL LNB

    • Local Stability: ±51.5 kHz
    • Noise Temperature: 15° K. typical 30° max
    • Output Connector: F-Type Female
    • L.O. Frequency: 5.15 GHz
    • Linear Gain: 59 dB min

    IDIRECT EVOLUTION® X1

    X1 Network Configuration

    Network Topology Star (DVB-S2/ACM downstream + ATDMA upstream)
    Modulation Downstream: QPSK, 8PSK, 16APSK
    Upstream: BPSK, QPSK, 8PSK
    Maximum Rates Supported Rate Downstream (DVB-S2) Upstream (ATDMA)
    Symbol Rate 1 -45 Mbps 128 ksps – 4 Msps*
    Info rate Up to 150 Mbps Up to 10 Mbps*
    Line Card IP rate Up to 149 Mbps Up to 8.5 Mbps
    Remote IP data rate Up to 76.3 Mbps Up to 8.5 Mbps*
    Max. Symbol Rate 45 Msps (15 Msps) 7.5 Msps (15 Msps)
    Max rates are achieved under optimal conditions.
    FEC Downstream: LDPC, 1/4 - 8/9
    Upstream: 2D 16-State, 1/2 - 6/7
    Eb/N0 For full list, please refer to the latest
    iDirect Link Budget Analysis Guide

    Interfaces

    Satcom Interfaces
    TxIF Type-F: 950 – 1700MHz,
    Composite Power 0dBm / -30dBm
    RxIF Type-F, 950 – 2150MHz, -5dBm / -65dBm
    10MHz IFL BUC reference
    Available BUC Power (IFL) +24V, 25W max. supporting BUCs up to 3W (65W external PSU)
    +24V, 50W max. supporting BUCs 4W Ku E0001102-0001 and 5W C NJT5669F (90W external PSU)
    Available LNB Power (IFL) +24VDC, 22kHz DiSEqC tone
    Data Interfaces LAN: 10/100 Ethernet
    Web-based configuration via Ethernet port
    Security AES-256 Link Encryption* (optional)
    Protocols Supported TCP, UDP, ICMP, NAT/PAT*, DHCP, Local DNS Caching, cRTP*
    Traffic Engineering QoS (Priority Queuing, Strict Priority Queuing, WFQ)
    Application-based QoS; Configurable Packet Classifier
    CIR (Static and Dynamic), Minimum CIR, Idle/Dormant Min IR
    Other Features Built-in Automatic Uplink Power Control,
    Frequency and Timing Control,
    Authentication

    Mechanical / Environmental

    Size (W x D x H) 9 x 6.8 x 1.8 inches (22.9 x 17.3 x 4.6 cm)
    Weight 2.0 lbs (0.91 kg)
    Operating Temperature 0° to 50°C (+32° to 122°F) at Sea Level
    Humidity Max 5% - 92% non-condensing humidity
    Input Voltage 100-240 VAC Single Phase, 50-60 Hz12-36 VDC
    Radio Standards
        EN 301-428 v1.3.1
        EN 301-443 v1.3.1
    <
    Safety Standards Complies with IEC 60950-1,
    EN 60950-1, UL 60950-1, CSA C22.2 No. 60950-1 No.60950-1-03
    Emission Standard Complies with EN 55022 Class B,
    FCC Part 15 Class B,
    EN 61000-3-2, EN 61000-3-3
    EMC/Immunity Standard Complies with EN 55024, EN 301-489-1,
    EN 301-489-12, EN 61000-4-2, EN 61000-4-3,
    EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN
    61000-4-11



    NJT5669F 5W Standard C-Band BUC

    Item Specifications
    Output Interface Waveguide, CPR137 (with Groove)
    Input Interface N-type, female (50 ohm)
    [Model No.: NJT5669/70/75N/77N]
    F-type, female (75 ohm)
    [Model No.: NJT5669F/70F/75F/77N]
    Output Power @ 1dB G.C.P. +37 dBm min. over temperature
    Linear Gain 61 dB nom.
    Power Requirement +24 VDC (+15 to +30 VDC)
    Power Consumption 48 W max.
    Weight 1.9 kg [4.2 lbs]



    NJS8487H Standard C-Band PLL LNB

    Item Specifications
    Input Interface Waveguide, CPR229 (with Groove)
    Output Interface N-type, female (50 ohm)
    [Model No.: NJS8486HN/86SN/87HN/87SN/88HN/88SN]
    F-type, female (75 ohm)
    [Model No.: NJS8486H/86S/87H/87S/88H/88S]
    Noise Temperature (at +25 C) 15 K typ., 30 K max.
    Conversion Gain (at +25 C) 59 dB min., 66 dB max.
    Input Voltage +24 VDC (+12 to +24 VDC)
    Current Drain 350 mA max.
    Weight 800 g [1.76 lbs]
